Diagnostic Trouble Codes Check/Clear

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

DTC CHECK (USING SST CHECK WIRE)

Check DTCs.

Using SST, connect terminals TC and the CG of DLC3.
SST 09843-18040
Turn the ignition switch to the ON position.

Read the DTC from the ABS warning light on the combination meter assy.

HINT:

If no code appears, inspect the TC circuit or ABS warning light circuit.

TROUBLE AREA AND SEE PAGE

Trouble Area	Action
TC terminal circuit	INSPECTION PROCEDURE
ABS warning light circuit	INSPECTION PROCEDURE

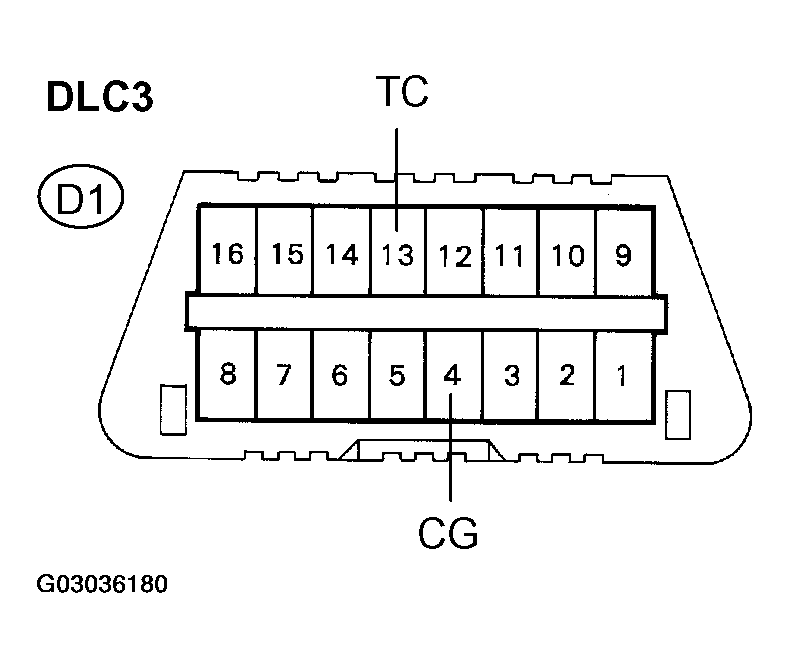

Fig 1: Identifying Terminals TC & CG Of DLC3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

As an example, the blinking patterns for a normal system code and trouble codes 11 and 21 are shown in Fig 2 on the left.

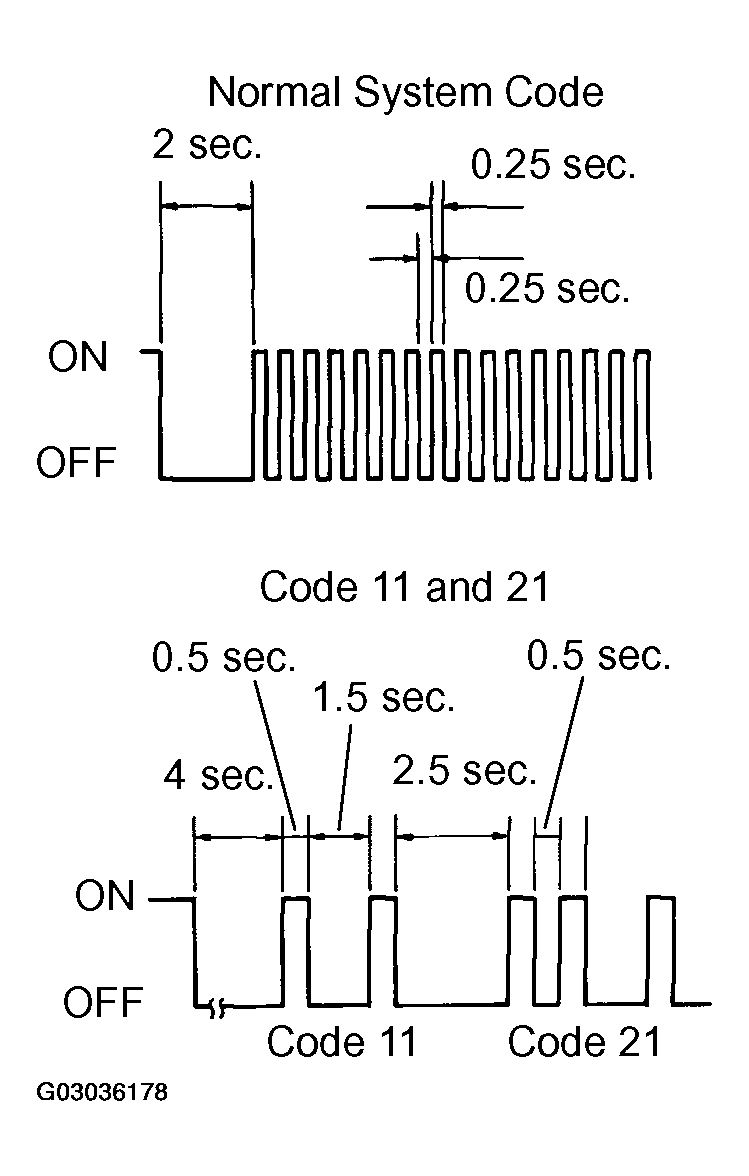

Fig 2: Identifying Blinking Patterns For Normal System Code & Trouble Codes 11 & 21

Codes are explained in the code table on DTC C0200/31 RIGHT FRONT SPEED SENSOR, DTC C0205/32 LEFT FRONT SPEED SENSOR, DTC C1330/35 RIGHT FRONT SPEED SENSOR CIRCUIT, DTC C1331/36 LEFT FRONT SPEED SENSOR CIRCUIT .
After completing the check, disconnect terminals TC and CG of the DLC3, and turn off the display.

If 2 or more DTCs are detected at the same time, the DTCs will be displayed.

DTC CHECK (USING HAND-HELD TESTER)
1. Checking DTCs.
  1. Connect the hand-held tester to the DLC3.
  2. Turn the ignition switch to the ON position.
  3. Read the DTCs by following the prompts on the tester screen.
  HINT:

  Refer to the hand-held tester operator's manual for further details.

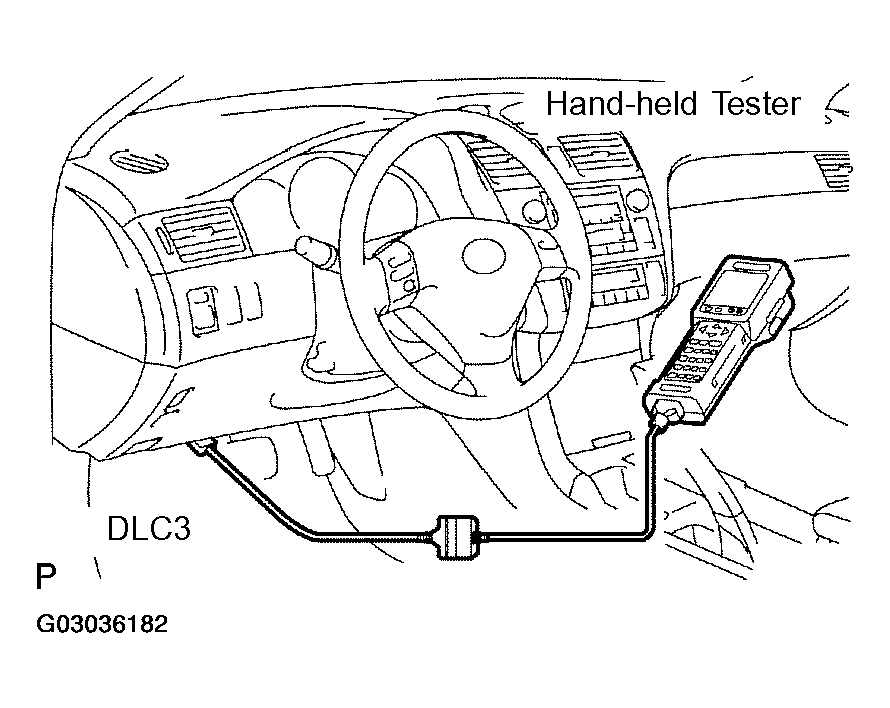

  Fig 3: Checking DTC (Using Hand-Held Tester)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CLEAR DTC (USING SST CHECK WIRE)
1. Clearing the DTCs.
  1. Using SST, connect terminals TC and CG of the DLC3.
    SST 09843-18040
  2. Turn the ignition switch to the ON position.

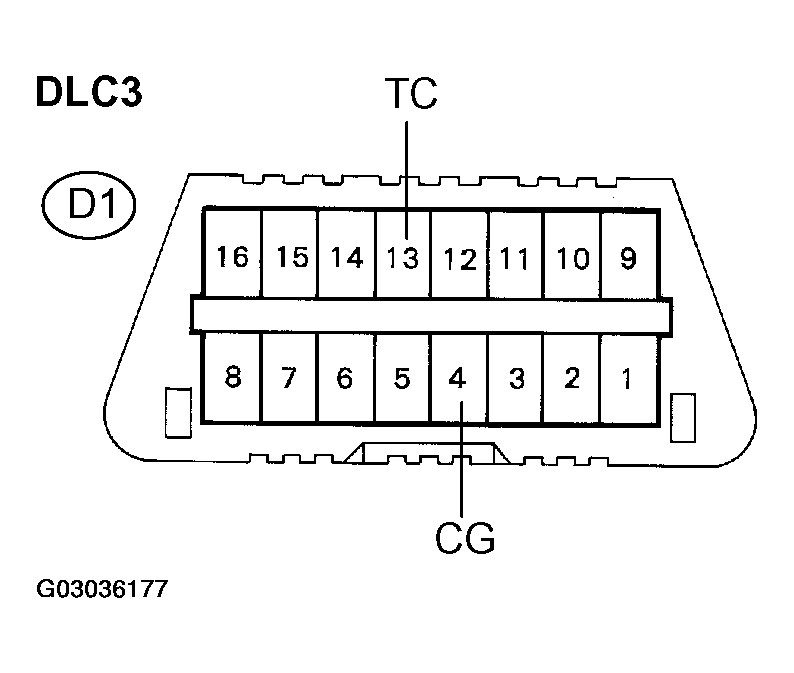

    Fig 4: Identifying Terminals Of TC & CG Of DLC3
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Clear the DTCs stored in ECU by depressing the brake pedal 8 times or more within 5 seconds.
  4. Check that the warning light indicates the normal system code.
  5. Remove the SST(s) from the terminals of the DLC3.
  HINT:

  Clearing the DTCs cannot be performed by removing the battery cable or ECU-IG fuse.

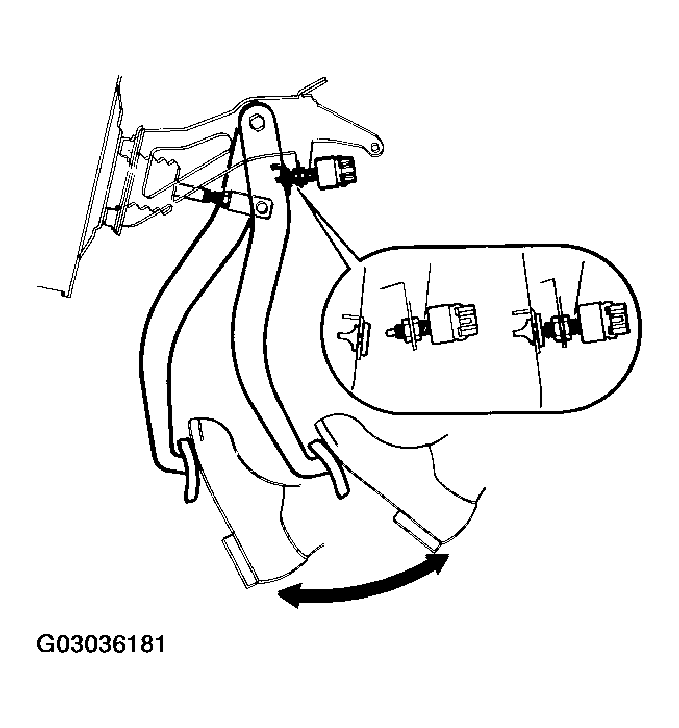

  Fig 5: Clearing DTC'S Stored In ECU By Depressing Brake Pedal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CLEAR DTC (USING HAND-HELD TESTER)
1. Clearing the DTCs.
  1. Connect the hand-held tester to the DLC3.
  2. Turn the ignition switch to the ON position.
  3. Operate the hand-held tester to erase the codes.
  HINT:

  refer to the hand-held tester Operator's Manual for further details.
Fig 6: Clearing DTC (Using Hand-Held Tester)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
END OF DTC CHECK/CLEAR
1. Turn the ignition switch to the ON position.
2. Check that ABS warning lamp goes off in about 3 seconds.
