Stereo Component Amplifier ASSY: Replacement

WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See COMPONENTS

REMOVE FRONT DOOR SCUFF PLATE RH (See REPLACEMENT )
REMOVE COWL SIDE TRIM SUB-ASSY RH (See REPLACEMENT )
REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO. 1 (See REPLACEMENT )
REMOVE GLOVE COMPARTMENT DOOR PAD (See REPLACEMENT )
REMOVE INSTRUMENT PANEL SUB-ASSY LOWER (See REPLACEMENT )
REMOVE STEREO COMPONENT AMPLIFIER ASSY
1. Disconnect the connectors.
2. Remove the 2 nuts and stereo component amplifier assy.

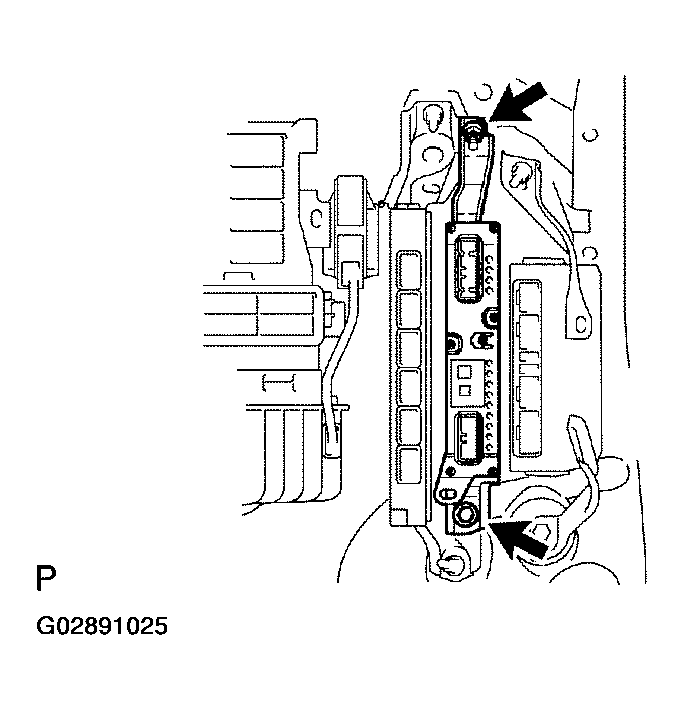

  Fig 1: Removing Stereo Component Amplifier Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
