Navigation Antenna ASSY: Replacement

WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See COMPONENTS

  1. REMOVE LUGGAGE COMPARTMENT FLOOR MAT
  2. REMOVE SPARE WHEEL COVER ASSY
  3. REMOVE LUGGAGE COMPARTMENT TRIM HOOK NO. 1 (See  REPLACEMENT  )
  4. REMOVE REAR FLOOR FINISH PLATE (See  REPLACEMENT  )
  5. REMOVE LUGGAGE COMPARTMENT TRIM COVER INNER LH (See  REPLACEMENT  )
  6. REMOVE REAR SEAT CUSHION ASSY (See  REAR SEAT ASSEMBLY (FROM JULY, 2003)  )
  7. REMOVE REAR SEAT BACK ASSY RH (See  REAR SEAT ASSEMBLY (FROM JULY, 2003)  )
  8. REMOVE REAR SEAT BACK ASSY LH (See  REAR SEAT ASSEMBLY (FROM JULY, 2003)  )
  9. REMOVE REAR SIDE SEAT BACK ASSY RH (TMC MADE) (See  REAR SEAT ASSEMBLY (FROM JULY, 2003)  )
  10. REMOVE REAR SIDE SEAT BACK ASSY LH (TMC MADE) (See  REAR SEAT ASSEMBLY (FROM JULY, 2003)  )
  11. REMOVE ROOF SIDE GARNISH INNER RH (W/O CURTAIN SHIELD AIR BAG) (See  REPLACEMENT  )
  12. REMOVE ROOF SIDE GARNISH INNER LH (W/O CURTAIN SHIELD AIR BAG) (See  REPLACEMENT  )
  13. REMOVE ROOF SIDE GARNISH INNER RH (W/ CURTAIN SHIELD AIR BAG) (See  REPLACEMENT  )
  14. REMOVE ROOF SIDE GARNISH INNER LH (W/ CURTAIN SHIELD AIR BAG) (See  REPLACEMENT  )
  15. REMOVE REAR SEAT SHOULDER BELT COVER RH (See  REPLACEMENT (TMC MADE)  or  REPLACEMENT (TMMK MADE)  )
  16. REMOVE PACKAGE TRAY TRIM PANEL ASSY (TMC MADE) (See  REPLACEMENT  )
  17. REMOVE REAR SEAT 3 POINT TYPE BELT ASSY OUTER (TMC MADE) (See  REPLACEMENT (TMC MADE)  )
  18. REMOVE REAR SEAT INNER W/CENTER BELT ASSY RH (TMC MADE) (See  REPLACEMENT (TMC MADE)  )
  19. REMOVE REAR SEAT INNER W/CENTER BELT ASSY LH (TMC MADE) (See  REPLACEMENT (TMC MADE)  )
  20. REMOVE ROOM PARTITION BOARD LH (TMC MADE) (See  REPLACEMENT  )
  21. REMOVE ROOM PARTITION BOARD RH (TMC MADE) (See  REPLACEMENT  )
  22. REMOVE NAVIGATION ANTENNA ASSY
    1. Disconnect the connector.
    2. Tie the string at the tip of the cable of the navigation antenna assy.
      Fig 1: Identifying Tie String At Tip Of Cable
      G02891027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the screw.
    4. Remove the clamp and navigation antenna assy.
    NOTE: As the string is used at the time of installation, remain it putting through the luggage room and the room side.

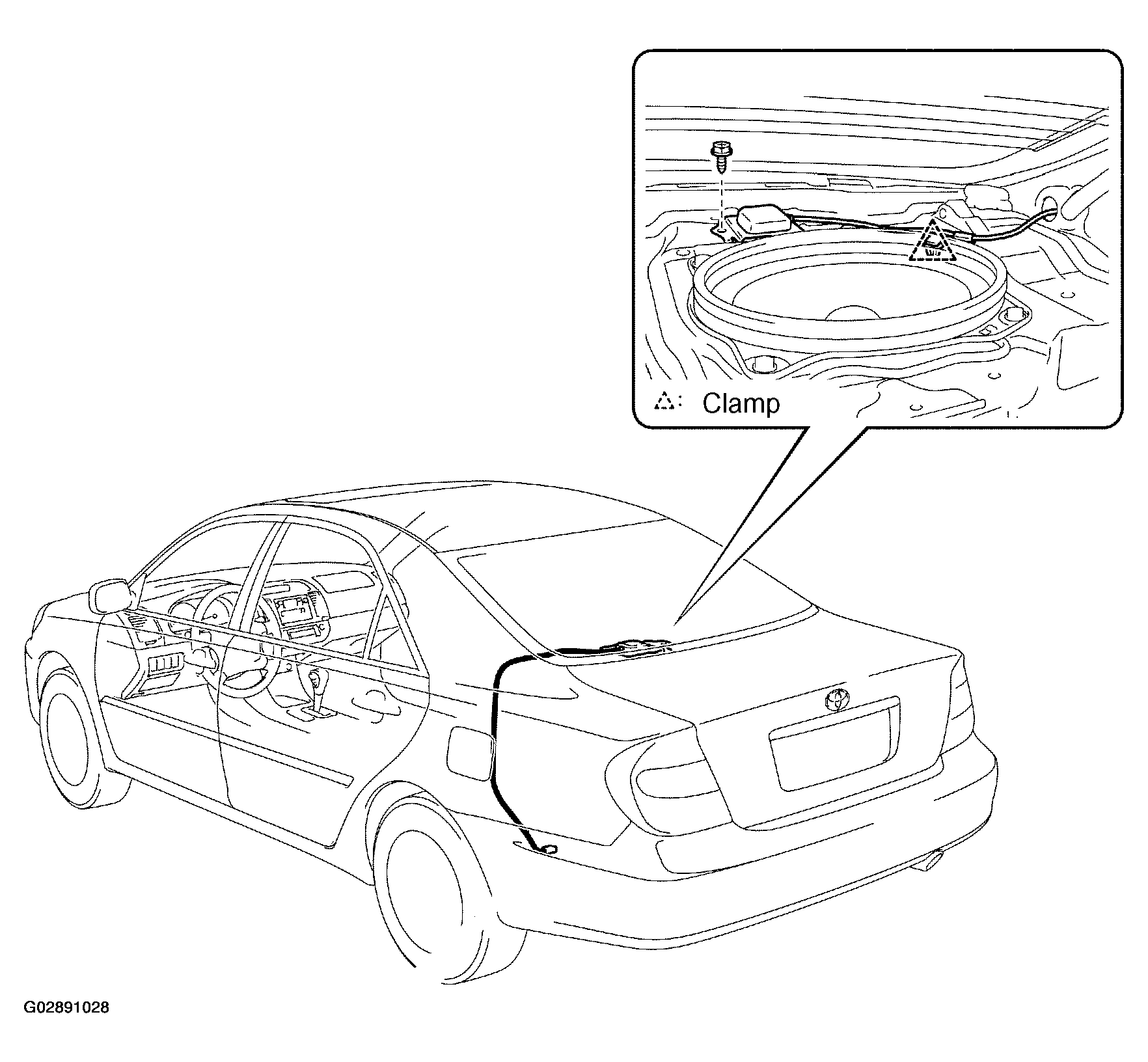

    Fig 2: Removing Clamp And Navigation Antenna Assy
    G02891028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. INSTALL NAVIGATION ANTENNA ASSY
    1. Detach the string put through the luggage room and the room side from the connector and attach it with a new navigation antenna assy.
    2. Using this string put the navigation antenna assy through the luggage room and the room side.
      NOTE: To prevent the connector from being damaged, wrap protective tape around the tip of connector of the navigation antenna assy.
    3. Install the navigation antenna assy with screw and clamp.
    4. Connect the connector.
  24. INSTALL REAR SEAT INNER W/CENTER BELT ASSY RH (TMC MADE) (See  REPLACEMENT (TMC MADE)  )
  25. INSTALL REAR SEAT 3 POINT TYPE BELT ASSY OUTER (TMC MADE) (See  REPLACEMENT (TMC MADE)  )
  26. INSTALL REAR SEAT INNER W/CENTER BELT ASSY LH (TMC MADE) (See  REPLACEMENT (TMC MADE)  )
  27. INSTALL REAR SIDE SEAT BACK ASSY LH (TMC MADE) (See  REAR SEAT ASSEMBLY (FROM JULY, 2003)  )
  28. INSTALL REAR SIDE SEAT BACK ASSY RH (TMC MADE) (See  REAR SEAT ASSEMBLY (FROM JULY, 2003)  )
  29. INSTALL REAR SEAT BACK ASSY RH (See  REAR SEAT ASSEMBLY (FROM JULY, 2003)  )
  30. INSTALL REAR SEAT BACK ASSY LH (See  REAR SEAT ASSEMBLY (FROM JULY, 2003)  )
