Water Pump Assembly: Replacement

WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.
  1. DRAIN ENGINE COOLANT (See  REPLACEMENT  )
  2. REMOVE FRONT WHEEL RH
  3. REMOVE FRONT FENDER APRON SEAL RH
  4. REMOVE V BELT NO. 1 (See  REPLACEMENT  )
  5. REMOVE VANE PUMP V BELT (See  REPLACEMENT  )
  6. REMOVE ENGINE MOVING CONTROL ROD (See  REPLACEMENT  )
  7. REMOVE ENGINE MOUNTING STAY NO.2 RH (See  REPLACEMENT  )
  8. REMOVE GENERATOR BRACKET NO.2
  9. REMOVE CRANKSHAFT PULLEY (See  OVERHAUL  )
  10. REMOVE TIMING BELT NO.1 COVER (See  OVERHAUL  )
  11. REMOVE TIMING BELT NO.2 COVER (See  OVERHAUL  )
  12. REMOVE ENGINE MOUNTING BRACKET RH
  13. REMOVE TIMING BELT GUIDE NO.2
  14. REMOVE TIMING BELT (See  OVERHAUL  )
  15. REMOVE TIMING BELT IDLER SUB-ASSY NO.2

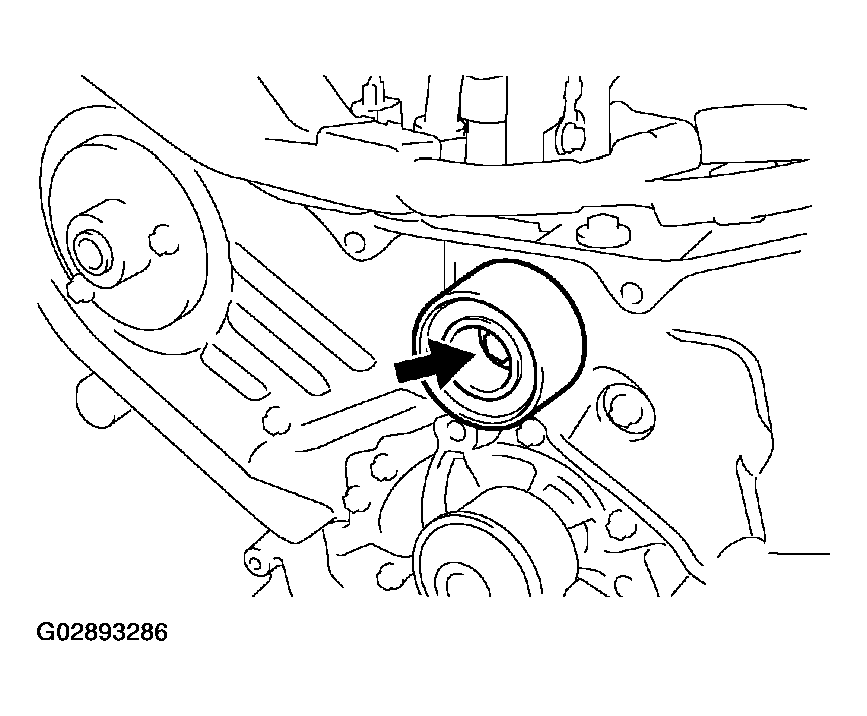

    1. Remove the bolt and timing belt idler.
      Fig 1: Identifying Timing Belt Idler Bolt
      G02893286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE CAMSHAFT TIMING PULLEY (See  OVERHAUL  )
  17. REMOVE TIMING BELT NO.3 COVER (See  OVERHAUL  )
  18. REMOVE WATER PUMP ASSY

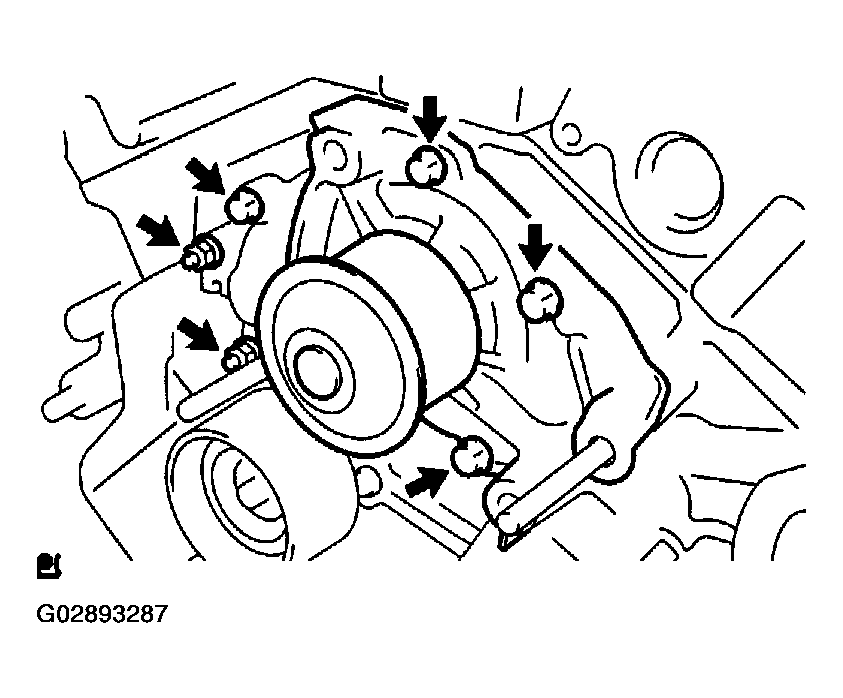

    1. Remove the 4 bolts, 2 nuts and water pump.
      Fig 2: Removing Water Pump Assembly
      G02893287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL WATER PUMP ASSY
    1. Install a new gasket and the water pump with the 4 bolts and 2 nuts.

      Torque: 8 N.m (82 kgf.cm, 71 in.lbf)

  20. INSTALL TIMING BELT NO.3 COVER (See  OVERHAUL  )
  21. INSTALL CAMSHAFT TIMING PULLEY (See  OVERHAUL  )
  22. INSTALL TIMING BELT IDLER SUB-ASSY NO.2

    Torque: 43 N.m (438 kgf.cm, 32 ft.lbf)

  23. INSPECT TIMING BELT (See  OVERHAUL  )
  24. INSTALL TIMING BELT (See  OVERHAUL  )
  25. INSTALL TIMING BELT GUIDE NO.2
  26. INSTALL ENGINE MOUNTING BRACKET RH

    Torque: 28 N.m (286 kgf.cm, 21 ft.lbf)

  27. INSTALL TIMING BELT NO.2 COVER (See  OVERHAUL  )
  28. INSTALL TIMING BELT NO.1 COVER (See  OVERHAUL  )
  29. INSTALL CRANKSHAFT PULLEY (See  OVERHAUL  )
  30. INSTALL GENERATOR BRACKET NO.2

    Torque: 28 N.m (286 kgf.cm, 21 ft.lbf)

  31. INSTALL ENGINE MOUNTING STAY NO.2 RH (See  REPLACEMENT  )
  32. INSTALL ENGINE MOVING CONTROL ROD (See  REPLACEMENT  )
  33. INSTALL VANE PUMP V BELT (See  REPLACEMENT  )
  34. INSTALL V BELT NO. 1 (See  REPLACEMENT  )
  35. INSPECT DRIVE BELT TENSION (See  INSPECTION  )
  36. ADD ENGINE COOLANT (See  REPLACEMENT  )
  37. CHECK FOR ENGINE COOLANT LEAKS (See  ON-VEHICLE INSPECTION  )
  38. INSTALL FRONT WHEEL RH
