Cylinder Block Assembly: Components

WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

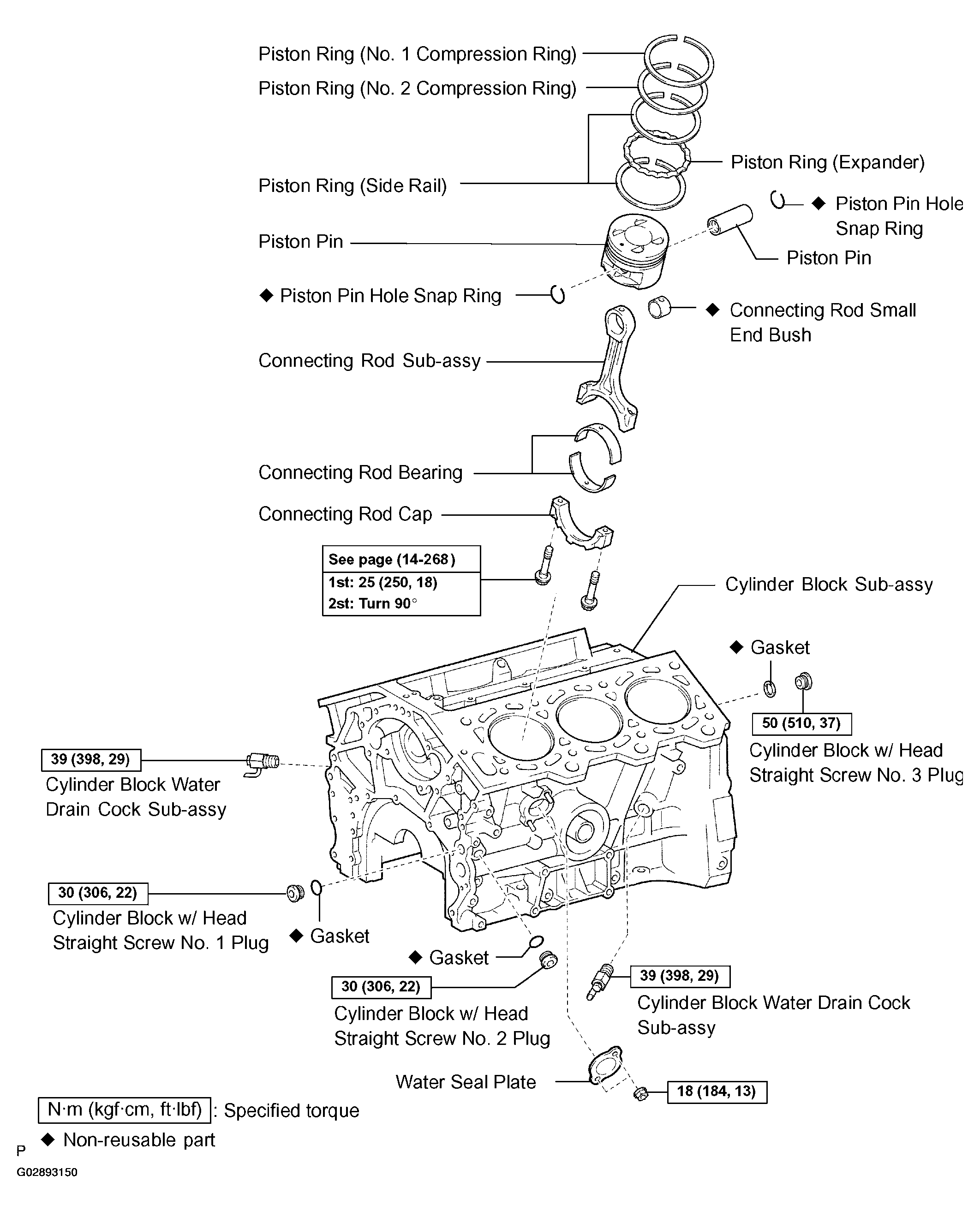

Fig 1: Exploded View Of Cylinder Block Assembly Components (1 Of 2)
G02893150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

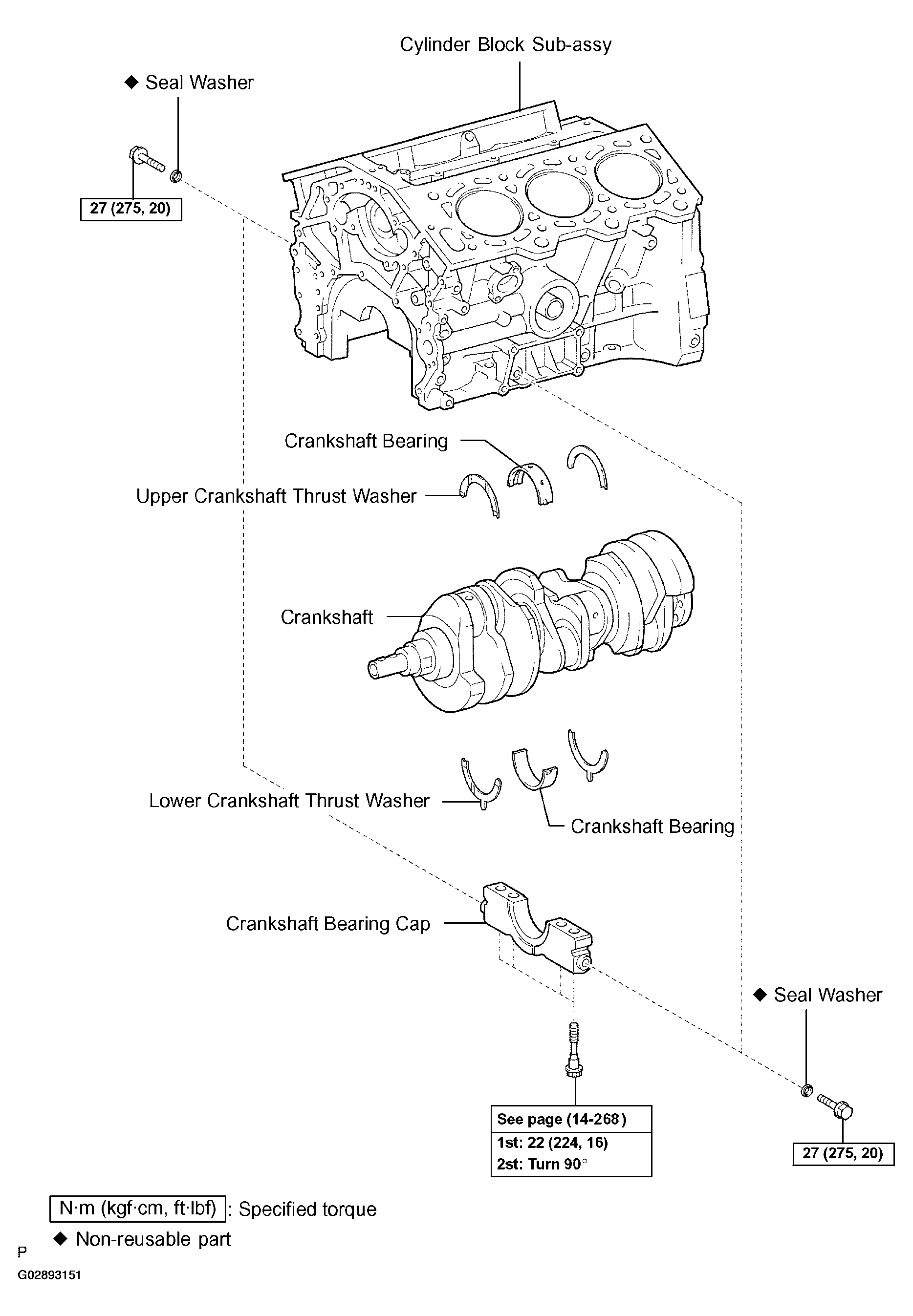

Fig 2: Exploded View Of Cylinder Block Assembly Components (2 Of 2)
G02893151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
