Diagnosis & Repair

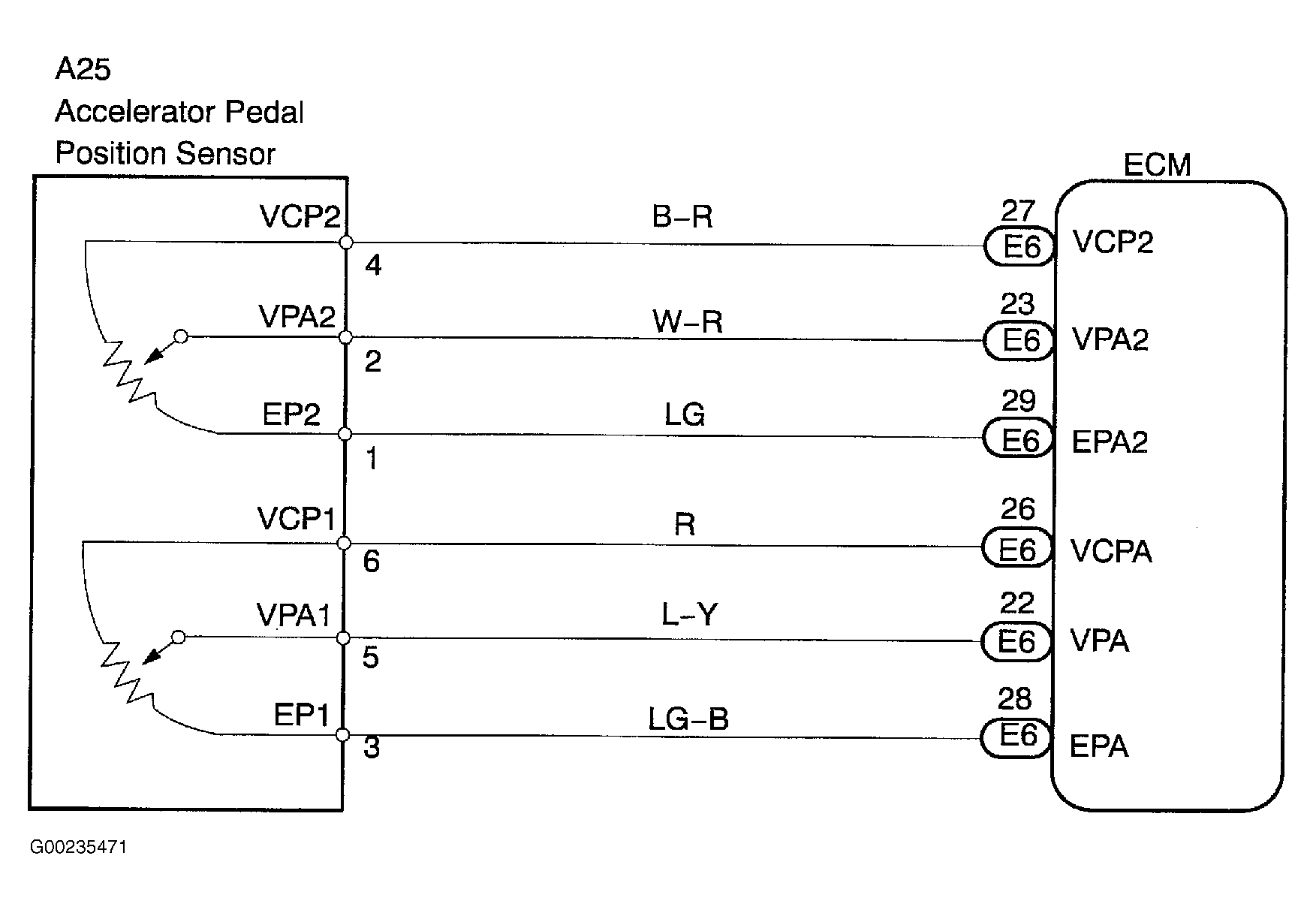

For wiring diagram, see Figure. For diagnosis and repair, see Fig 1.

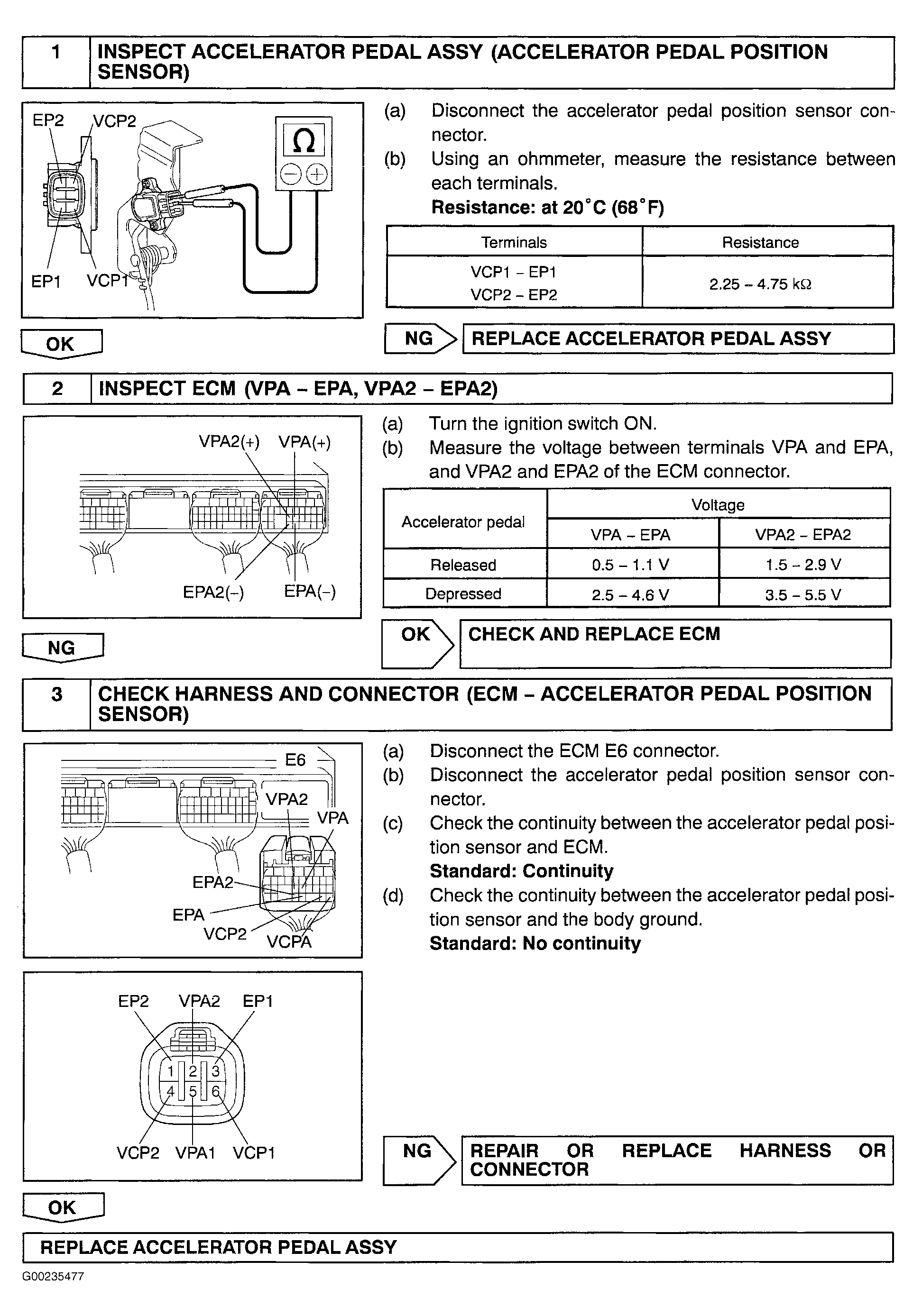

Fig 1: Diagnosis & Repair Of Throttle/Pedal Position Sensor/Switch
G00235477Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
