Home >> Lexus >> 2003 >> ES 300 >> Repair and Diagnosis >> Body & Frame >> Seats >> Seat Heater System >> Location

Seat Heater System: Location

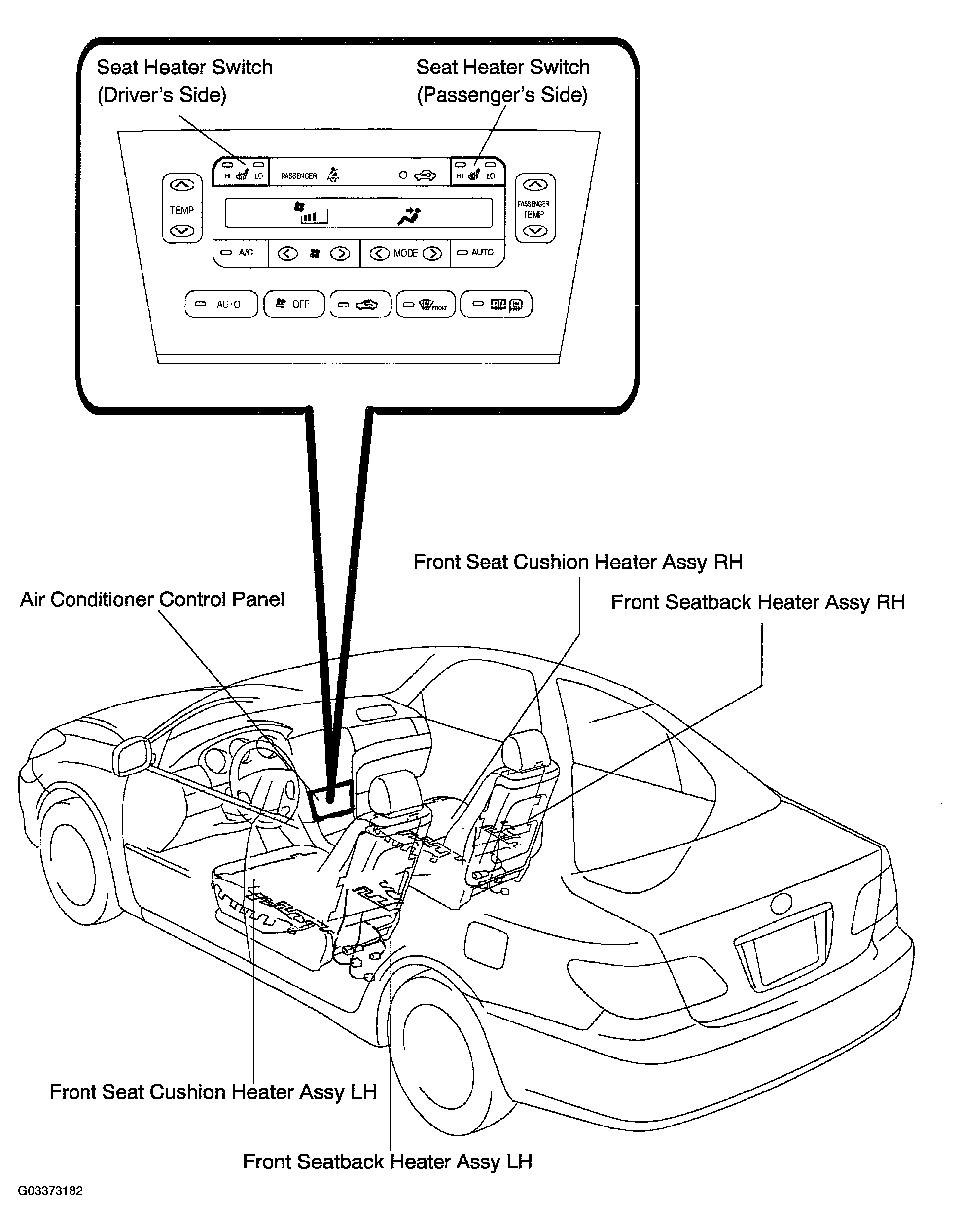

Fig 1: Identifying Seat Heater System Location

G03373182

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
