Rear Bumper: Components

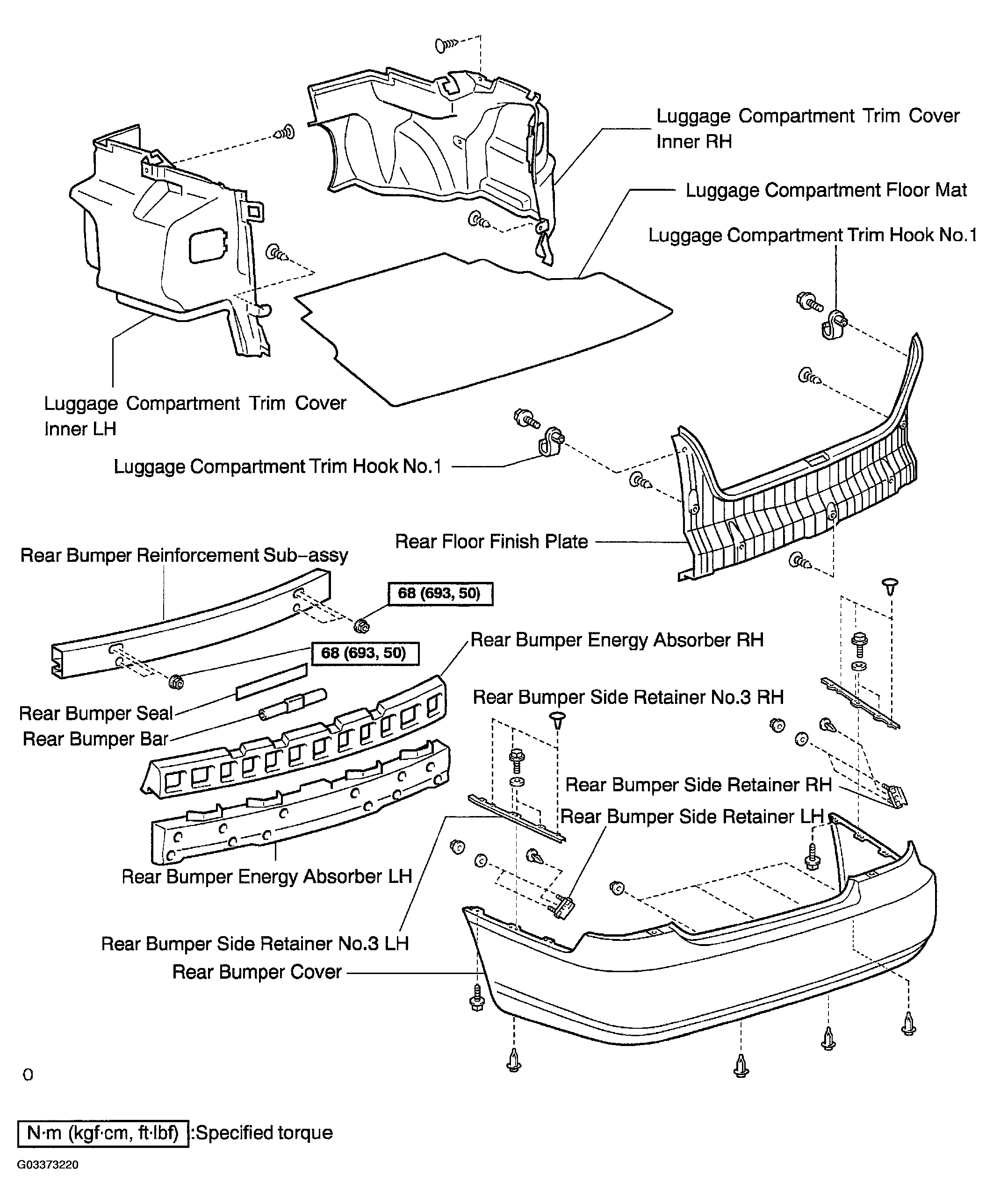

Fig 1: Exploded View Of Rear Bumper Components

G03373220

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
