Home >> Lexus >> 2003 >> ES 300 >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> Front Bumper >> Components

Front Bumper: Components

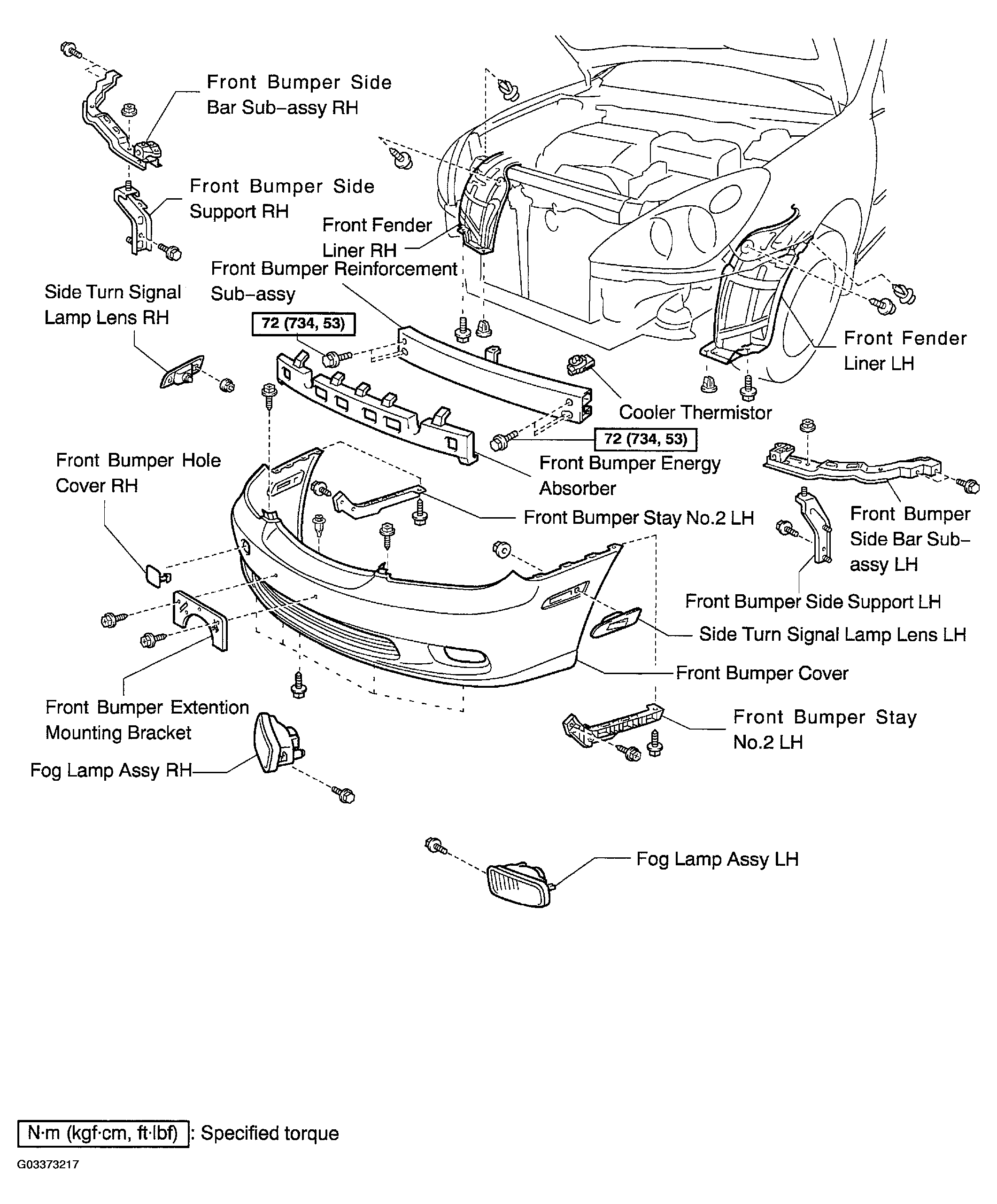

Fig 1: Exploded View Of Front Bumper Components

G03373217

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
