Active Arming Mode
WARNING: This page is about a different car, the 2003 Lexus RX 300 and 2002 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.

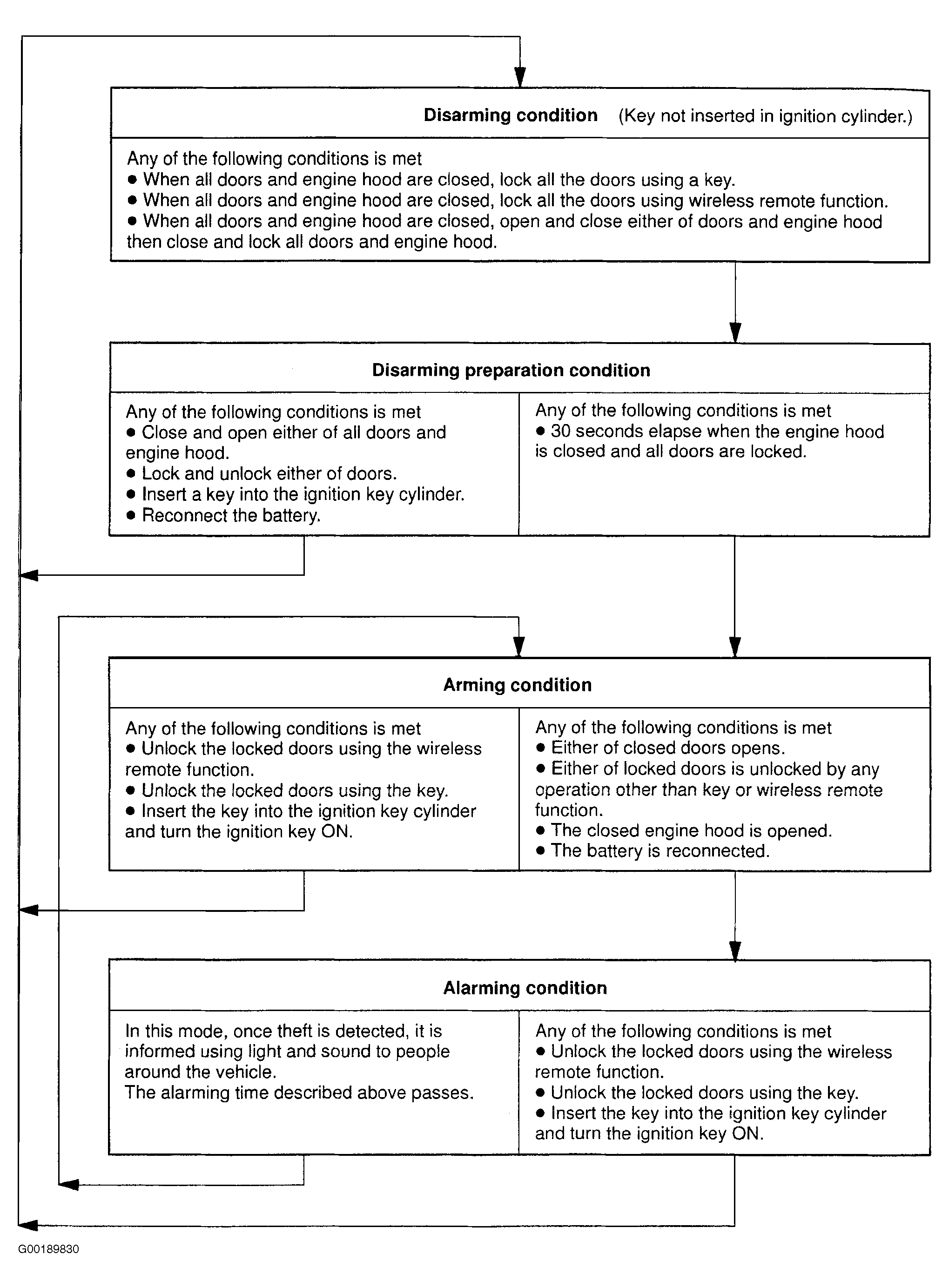

For active arming mode flowchart, see Fig 1. For indicator light output, see INSPECTING INDICATOR LIGHT OUTPUT (ACTIVE ARMING MODE) table. Even in disarming condition, the indicator light flashes due to the signal output from the immobilizer system. The indicator always flashes receiving the signal from the immobilizer system at any time in the arming condition. The flashing frequency is 0.75 seconds when ON and 1.25 seconds when OFF.
INSPECTING INDICATOR LIGHT OUTPUT (ACTIVE ARMING MODE)
| Condition | Indicator Light |
|---|---|
| Disarming Condition | OFF |
| Arming Preparation Condition | ON |
| Arming Condition | OFF |
| Alarming Condition | ON |
