Testing Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Lexus GS 430, 2004 Lexus GS 300, 2003 Lexus GS 430, 2003 Lexus GS 300, and 2002 Lexus GS 430. However, it is still accessible from the selected car via links, so may be relevant.

For wiring diagram, see Figure. For testing procedure, see Fig 1 - Fig 3 .

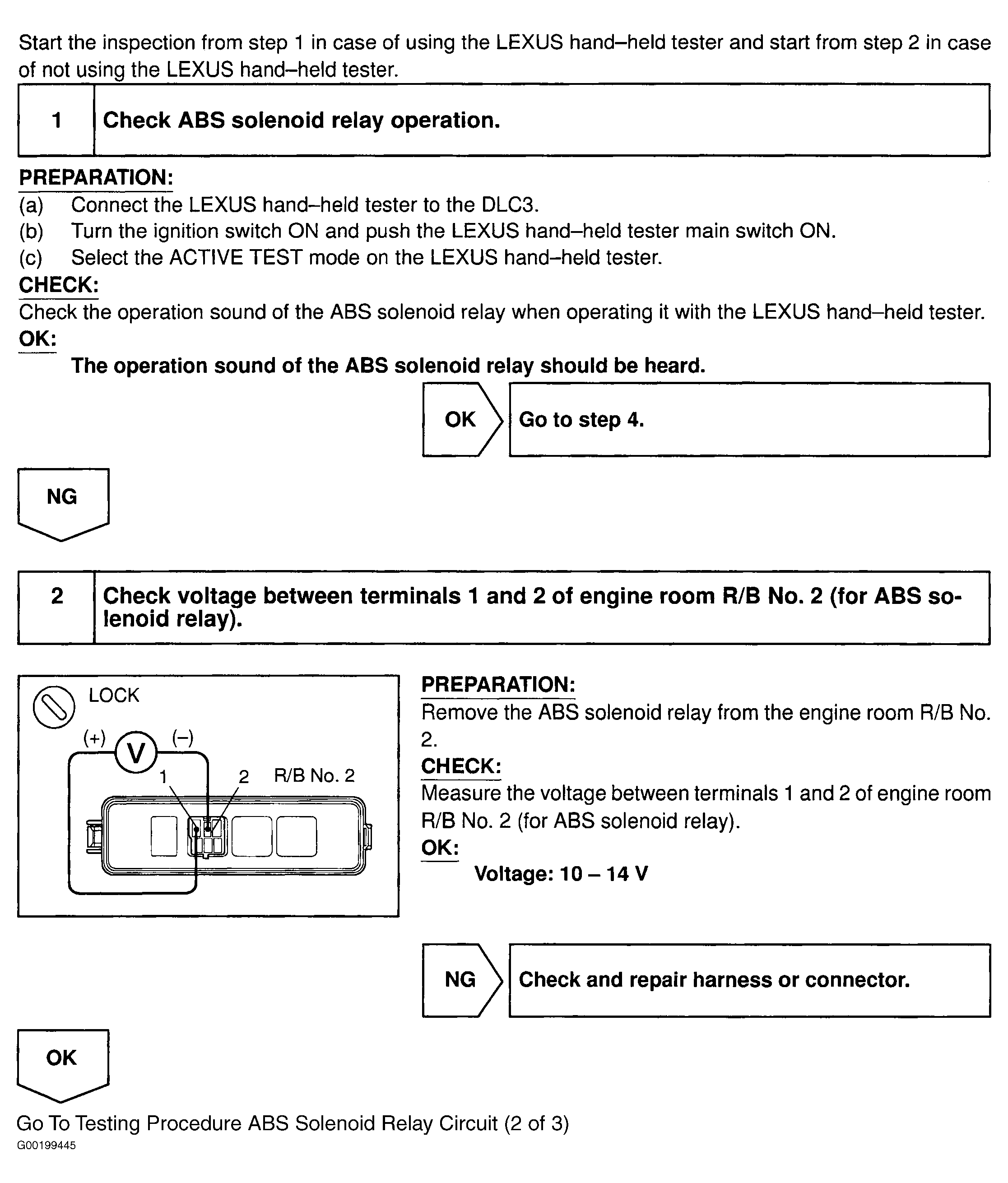

Fig 1: Testing Procedure ABS Solenoid Relay Circuit (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

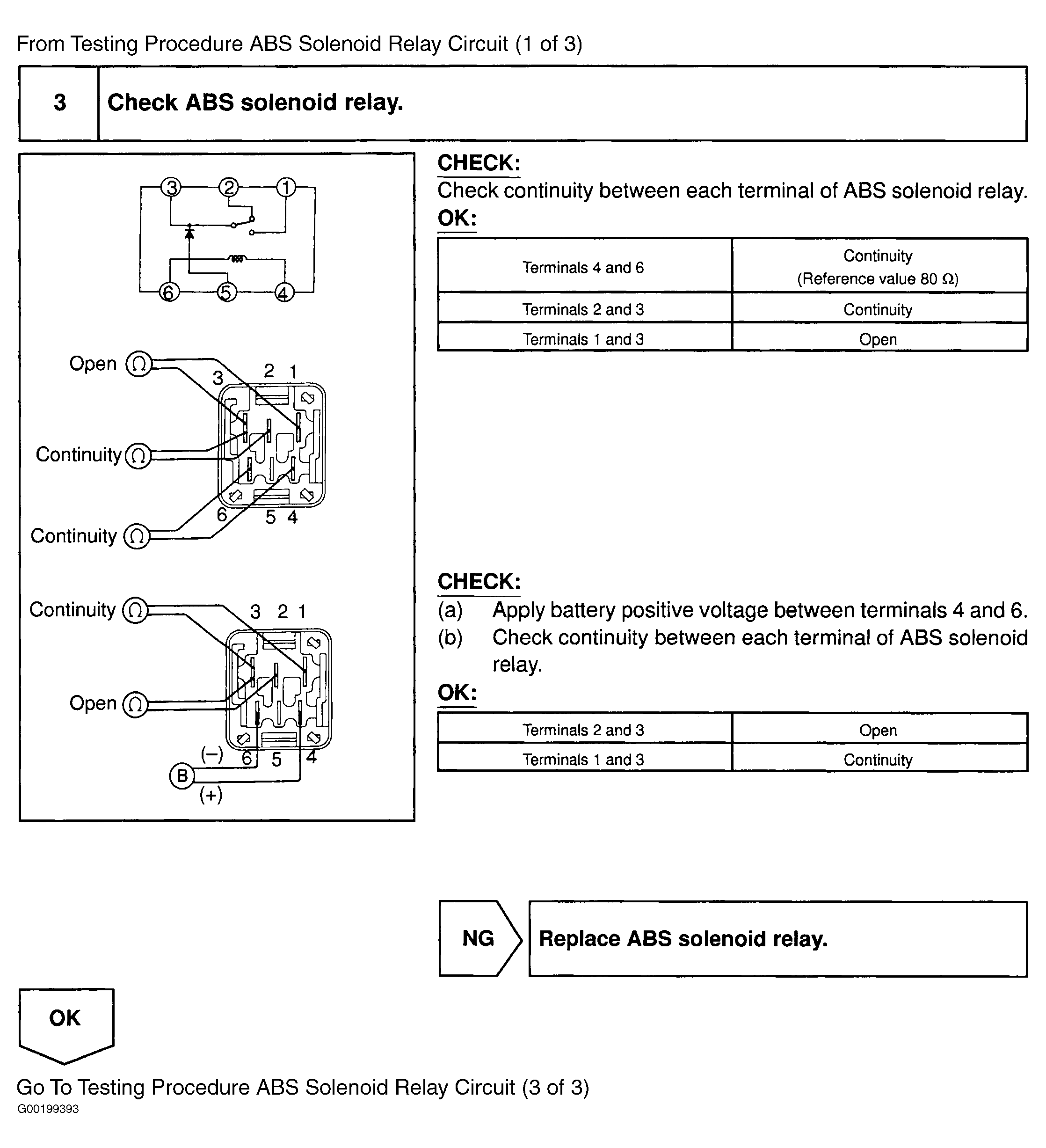

Fig 2: Testing Procedure ABS Solenoid Relay Circuit (2 Of 3)

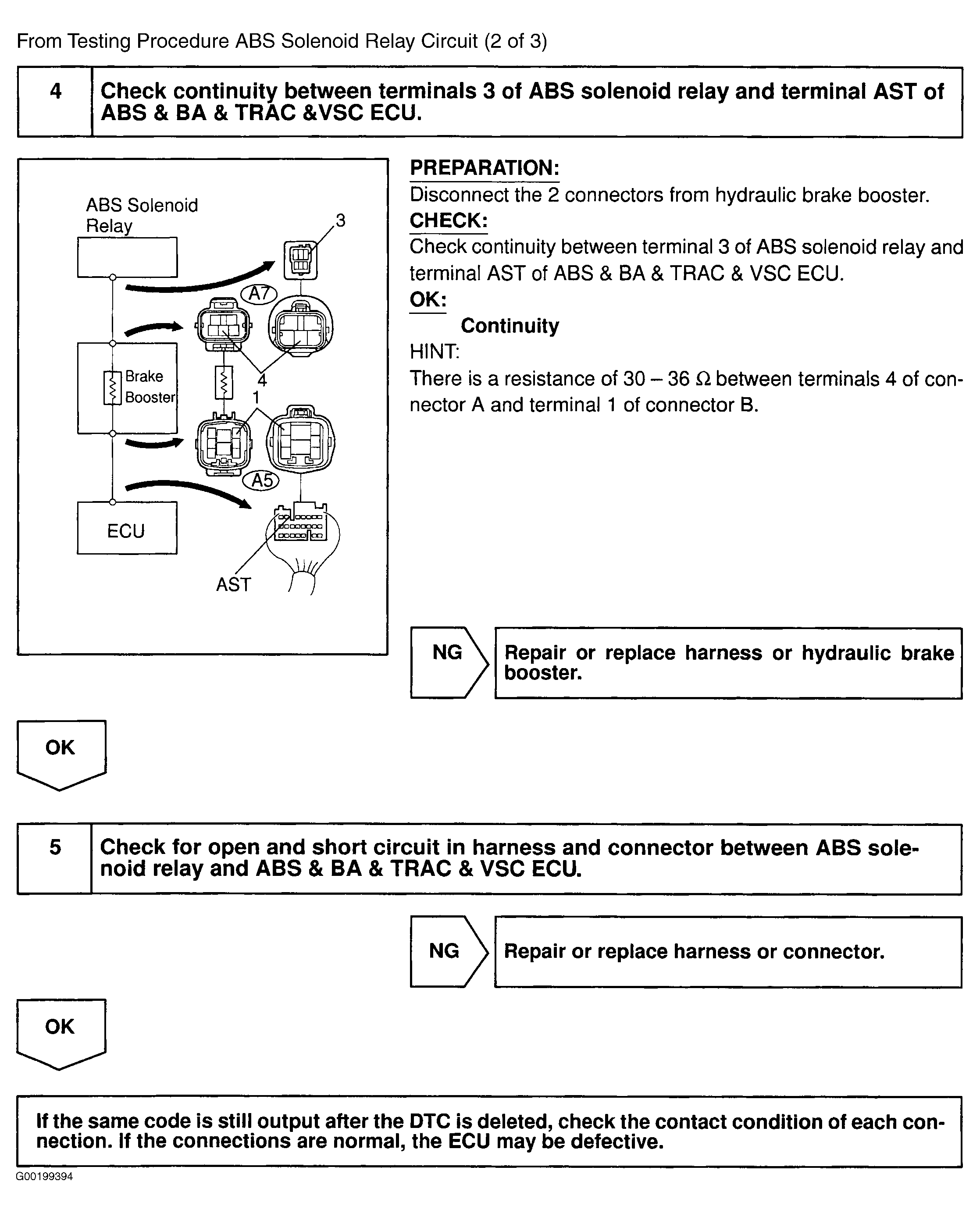

Fig 3: Testing Procedure ABS Solenoid Relay Circuit (3 Of 3)
