Stereo Component Speaker ASSY: Replacement

WARNING: This page is about a different car, the 2004 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See COMPONENTS

REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSY (See OVERHAUL )
REMOVE DOOR INSIDE HANDLE BEZEL NO. 2 LH (See OVERHAUL )
REMOVE FRONT DOOR WINDOW UPPER BRACKET GARNISH LH (See OVERHAUL )
REMOVE FRONT DOOR TRIM BOARD SUB-ASSY LH (See OVERHAUL )
REMOVE STEREO COMPONENT SPEAKER ASSY
1. Disconnect the connector.
2. Remove the 4 screws and stereo component speaker assy.

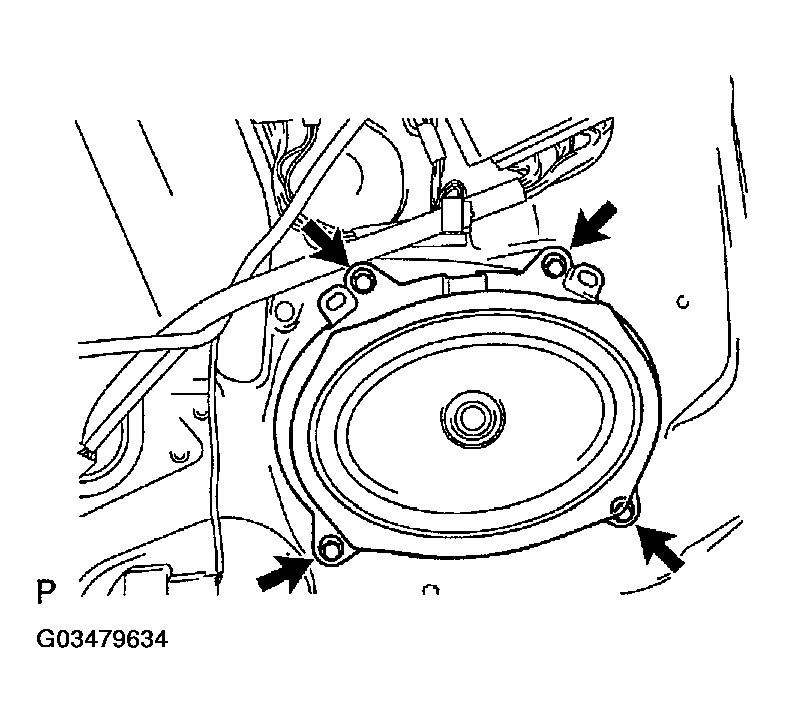

Fig 1: Removing Stereo Component Speaker Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
