Rear Speaker ASSY No. 2: Replacement

HINT:

COMPONENTS: See COMPONENTS

1. REMOVE REAR SEAT CUSHION ASSY (See  OVERHAUL  )
2. REMOVE REAR SEAT HEADREST PLATE COVER (See  OVERHAUL  )
3. REMOVE WIND DEFLECTOR BOARD ASSY (See  OVERHAUL  )
4. REMOVE REAR SEAT HEADREST PLATE (See  OVERHAUL  )
5. REMOVE REAR SEAT HEADREST ASSY (See  OVERHAUL  )
6. REMOVE REAR SEAT BACK ASSY (See  OVERHAUL  )
7. REMOVE REAR SPEAKER ASSY NO. 2
   1. Disconnect the connector.
   2. Remove the 4 screws and rear speaker assy No. 2.

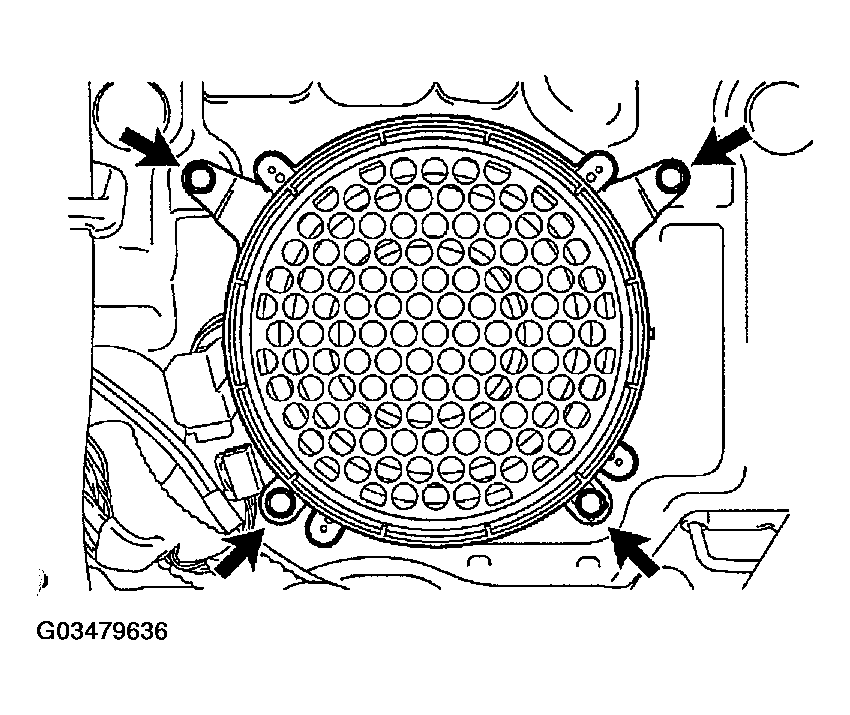

   Fig 1: Removing Rear Speaker Assy No. 2

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. INSTALL REAR SEAT BACK ASSY (See  OVERHAUL  )
