Ignition Coils: Removal
WARNING: This page is about a different car, the 2004 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE V-BANK COVER
- REMOVE INTAKE AIR CONNECTOR
- DISCONNECT ENGINE WIRE FROM LH CYLINDER HEAD COVER
Disconnect the 2 wire clamps and engine wire.
- DISCONNECT IGNITION COIL (WITH IGNITER) CONNECTORS
- REMOVE IGNITION COILS (WITH IGNITER) FROM SPARK PLUGS

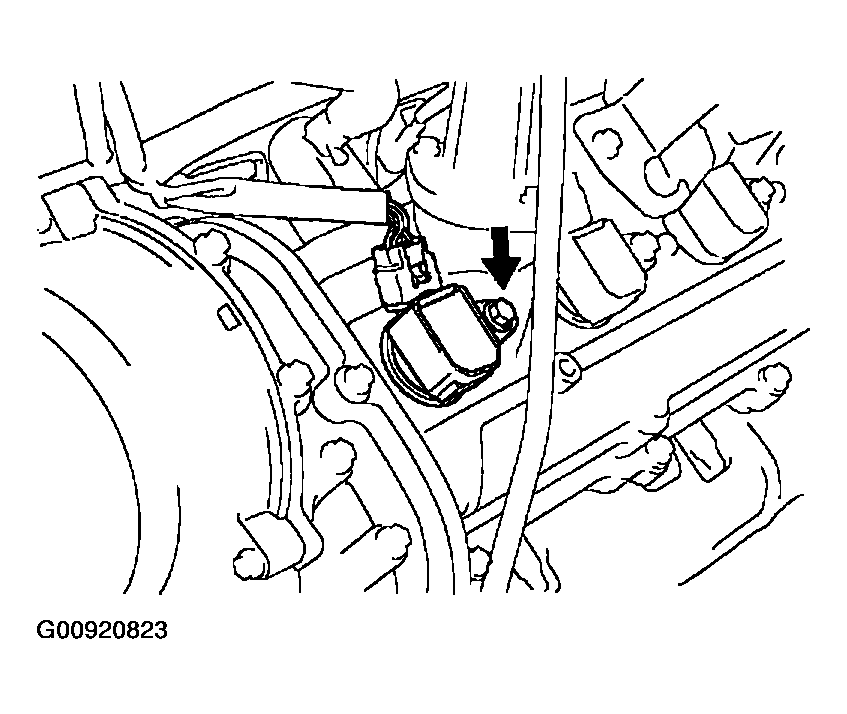

Remove the bolt, and pull out the ignition coil (with igniter). Remove the 8 ignition coils (with igniter).
- Torque: 7.5 N.m (80 kgf.cm, 66 in.lbf)
