Camshaft Position Sensor: Removal
WARNING: This page is about a different car, the 2004 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE V-BANK COVER
- DRAIN ENGINE COOLANT
- DISCONNECT UPPER RADIATOR HOSE
- REMOVE LH NO. 3 TIMING BELT COVER (See REMOVAL )
- REMOVE CAMSHAFT POSITION SENSOR

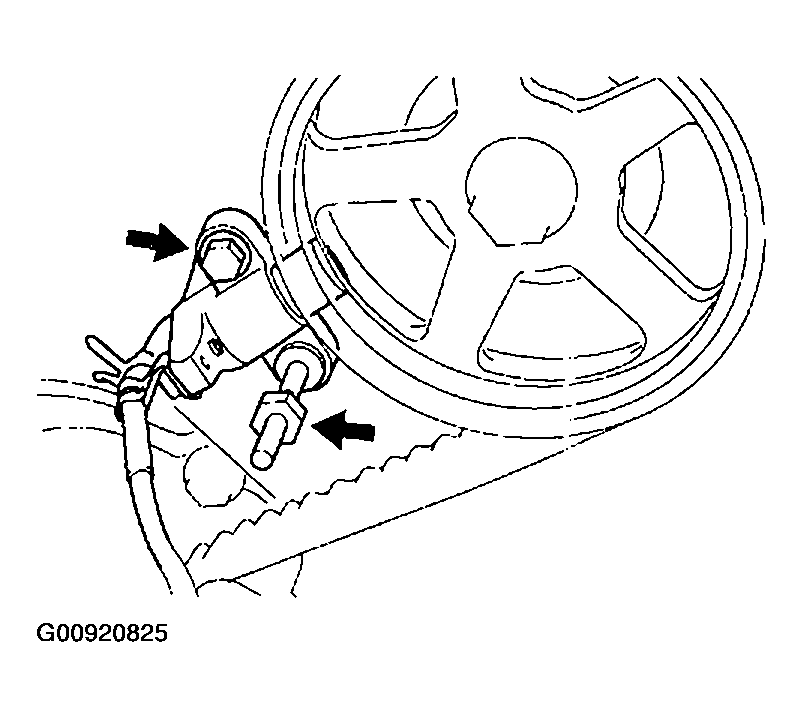

Remove the bolt, stud bolt and camshaft position sensor.
