On-Vehicle Inspection

WARNING: This page is about a different car, the 2004 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE V-BANK COVER
  2. REMOVE INTAKE AIR CONNECTOR
  3. INSPECT INJECTOR RESISTANCE
    1. Disconnect the 8 injector connectors.
    2. Using an ohmmeter, measure the resistance between the terminals.

      Resistance: 13.4 - 14.2 +/- at 20°C (68°F)

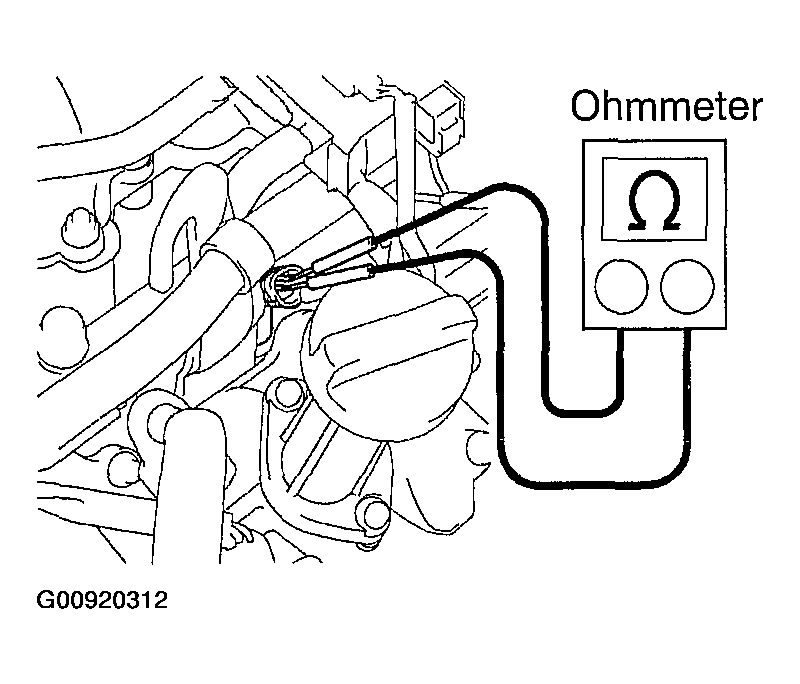

      Fig 1: Measuring Resistance Between Terminals
      G00920312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      If the resistance is not as specified, replace the injector.

    3. Reconnect the 8 injector connectors.
  4. REINSTALL INTAKE AIR CONNECTOR
  5. REINSTALL V-BANK COVER
