Indicator Lights:

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

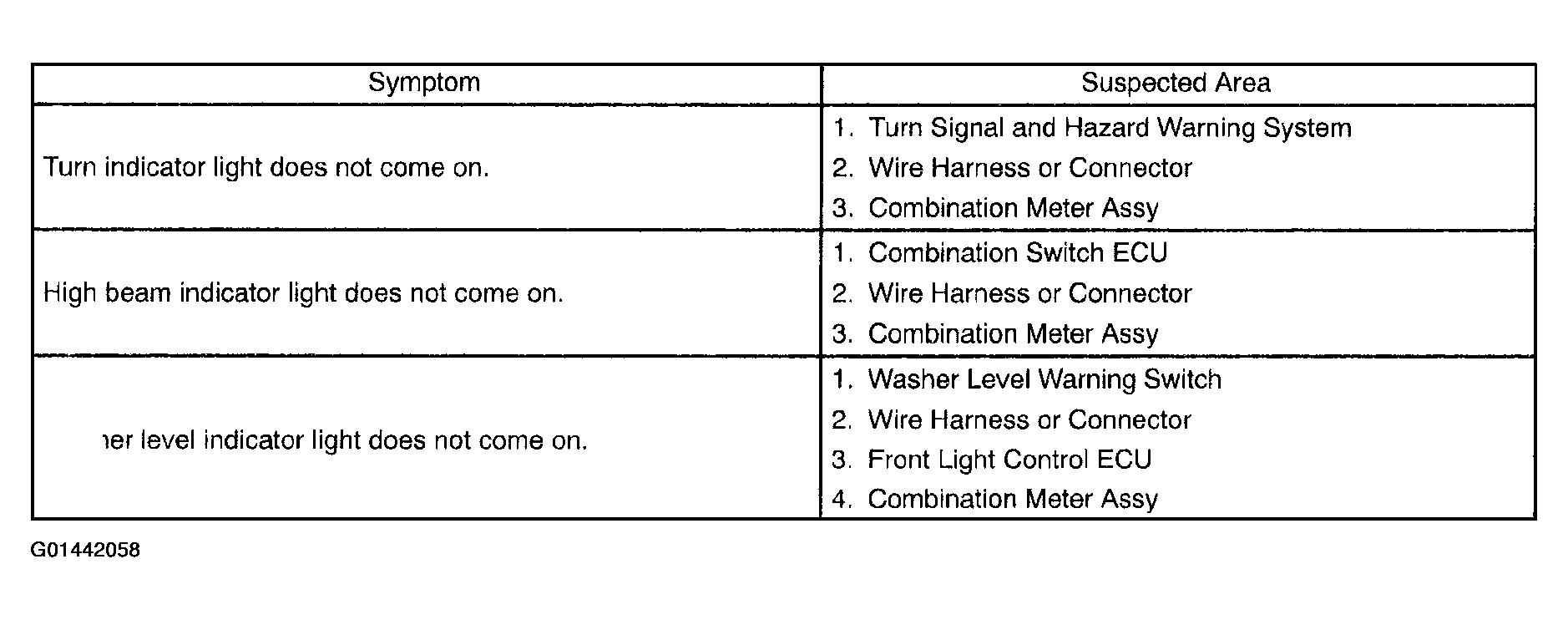

Fig 1: Indicator Lights - Problem Symptom Chart (1 Of 2)
G01442058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

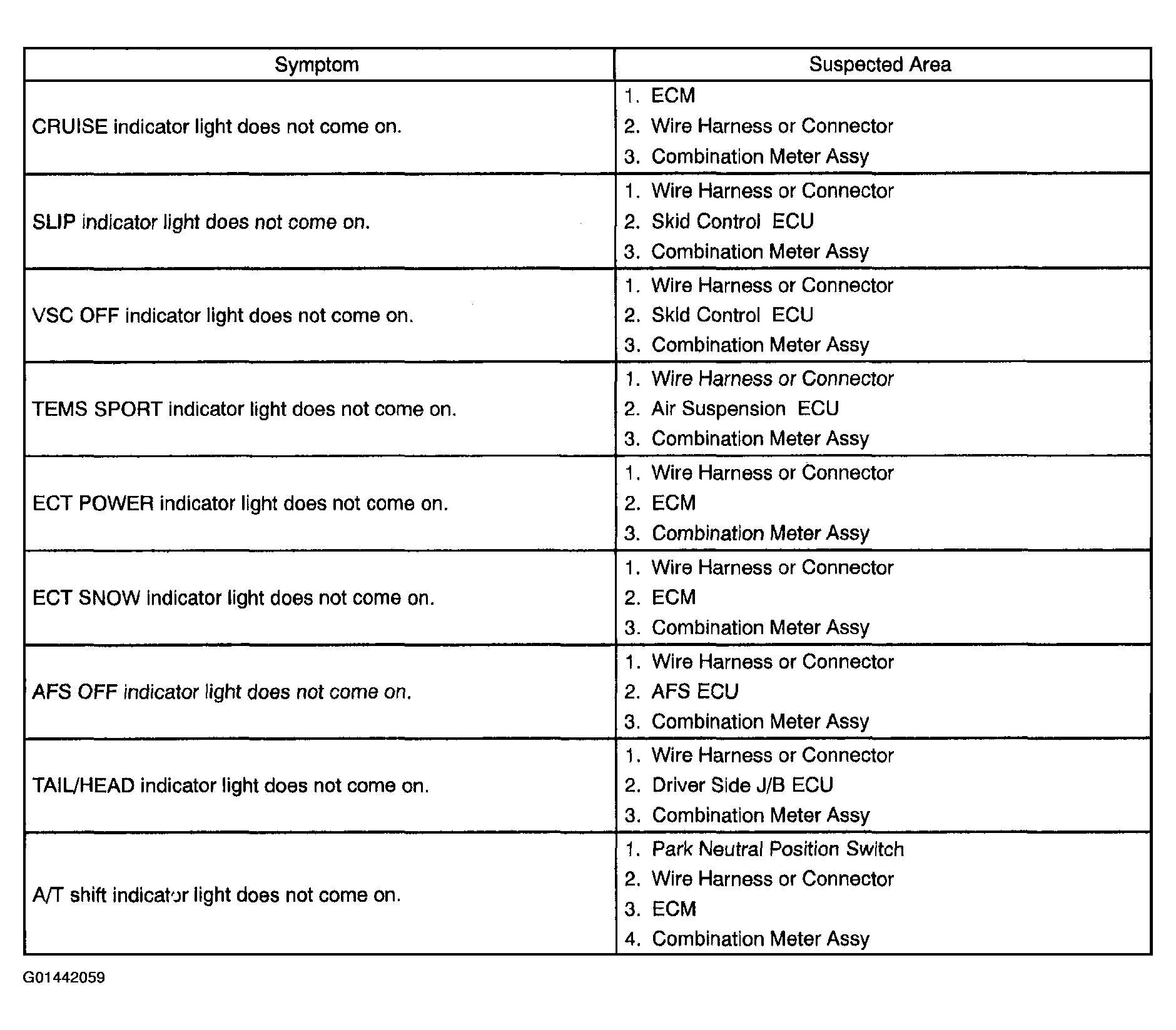

Fig 2: Indicator Lights - Problem Symptom Chart (2 Of 2)
G01442059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
