Graphic Area:

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

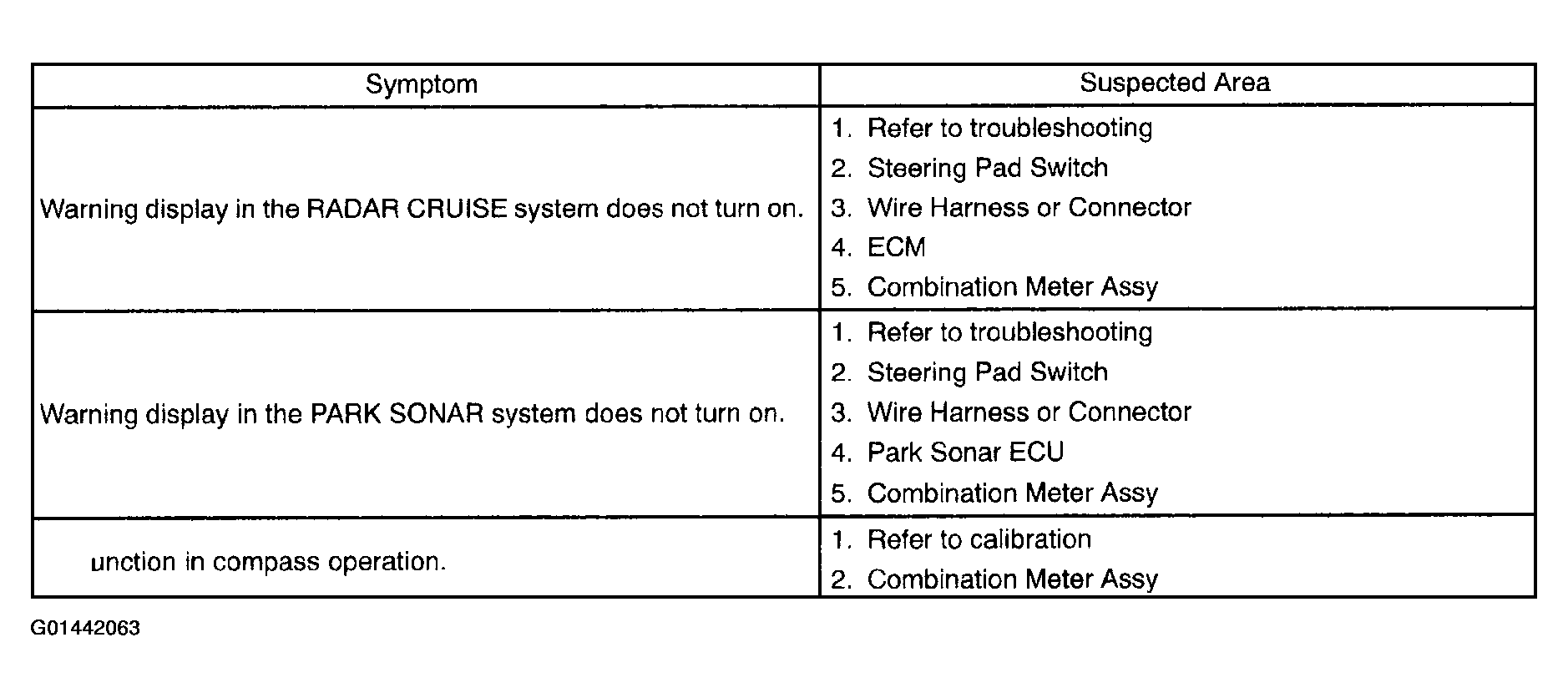

Fig 1: Graphic Area - Problem Symptom Chart (1 Of 2)
G01442063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

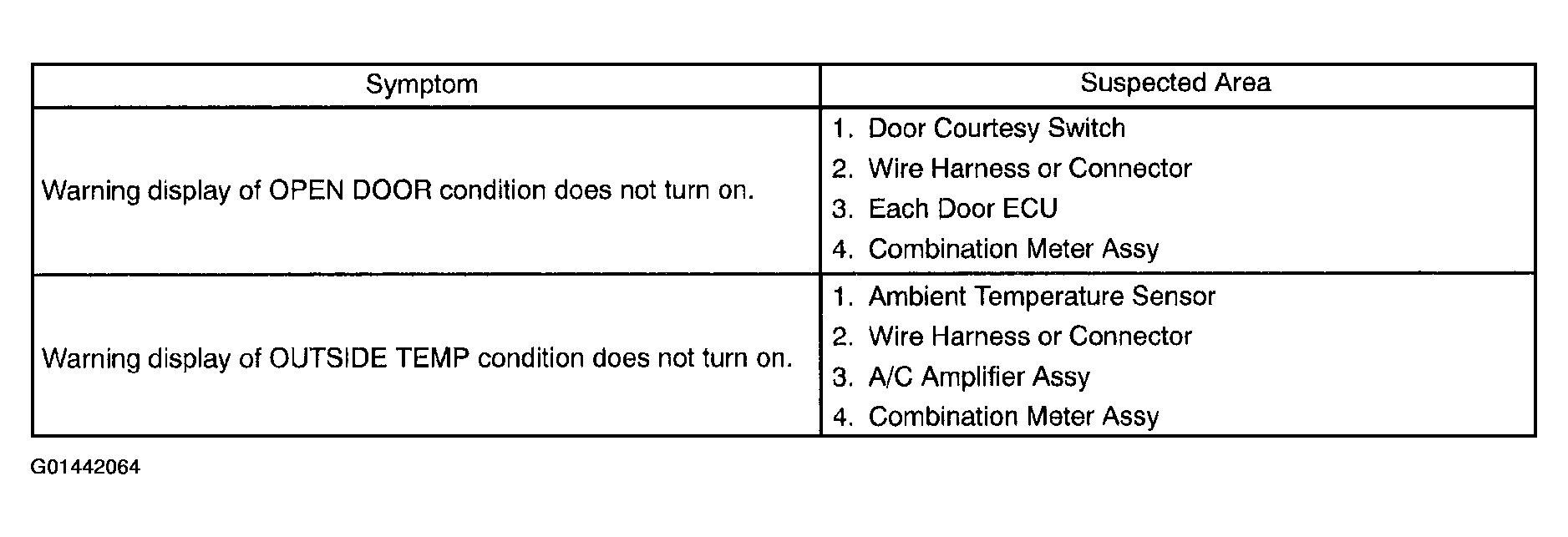

Fig 2: Graphic Area - Problem Symptom Chart (2 Of 2)
G01442064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
