Inspection Procedure

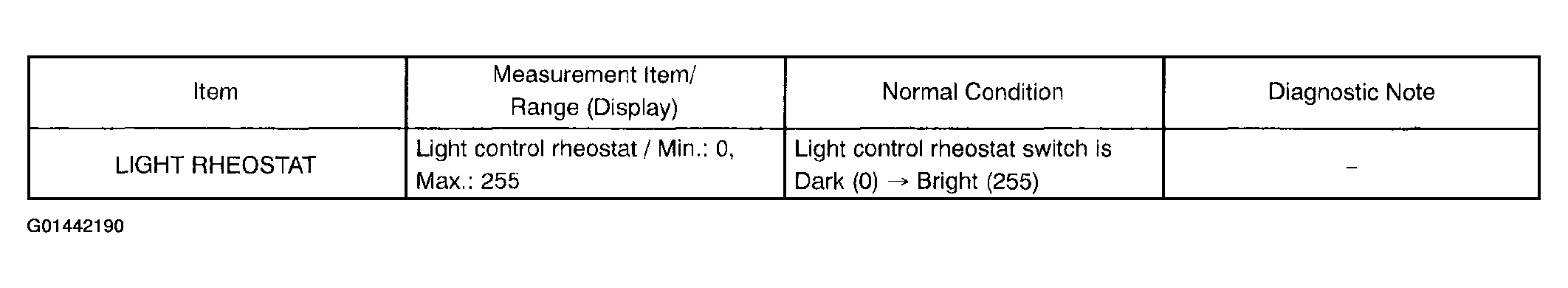

- READ VALUE OF HAND-HELD TESTER (LIGHT RHEOSTAT SIGNAL)
- Operate the hand-held tester according to the steps on the display and select the "DATA LIST".
METER:
OK: Go to next step.
Light control can be changed within the specified range by actual operation.
NG: Go to step 2
OK: REPLACE COMBINATION METER ASSY (SEE OVERHAUL )
- Operate the hand-held tester according to the steps on the display and select the "DATA LIST".

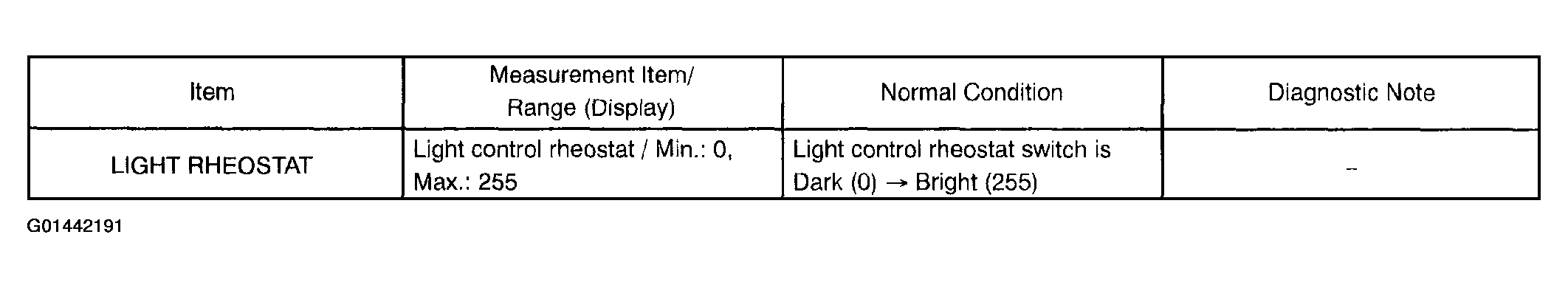

- READ VALUE OF HAND-HELD TESTER (LIGHT RHEOSTAT SIGNAL)
Operate the hand-held tester according to the steps on the display and select the "DATA LIST".
BODY No.2:
OK: Go to next step.
Light control can be changed within the specified range by actual operation.
NG: Go to step 5
OK: Go to next step.
- CHECK HARNESS AND CONNECTOR (DRIVER SIDE JUNCTION BLOCK-COMBINATION METER ASSY) (SEE
ELECTRONIC CIRCUIT INSPECTION PROCEDURE
)

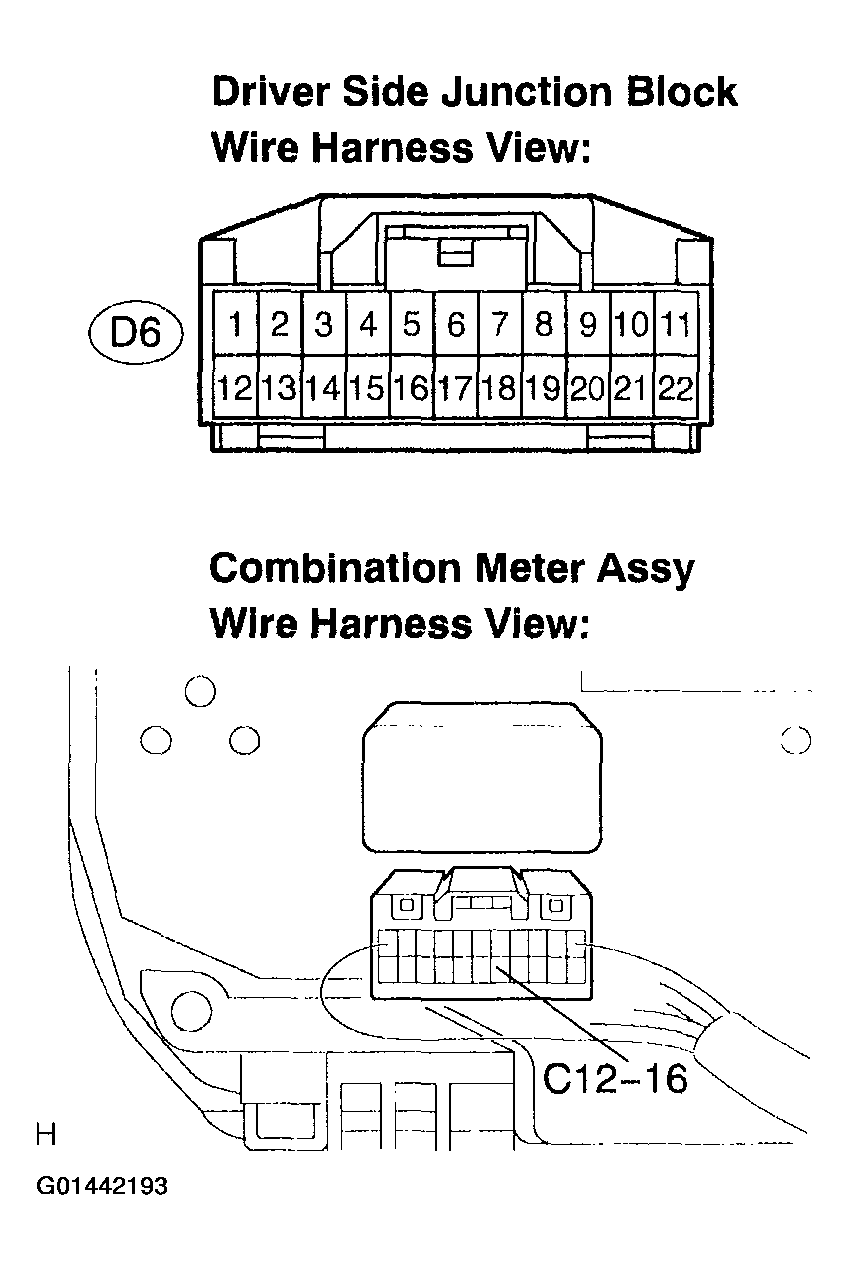

- Disconnect the C12 and D6 connectors.

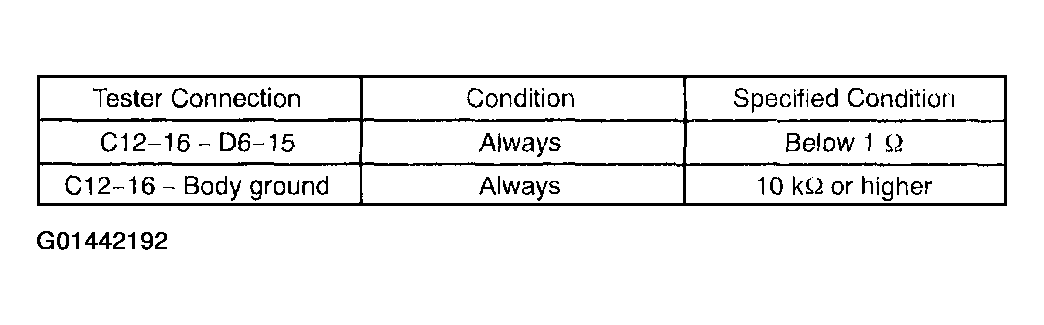

- Measure the resistance according to the value (s) in the figure Fig 3 below.
Standard:
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step.
- REPLACE DRIVER SIDE JUNCTION BLOCK
OK: Go to next step.
Normal operation
NG: REPLACE COMBINATION METER ASSY (SEE OVERHAUL )
OK: END
- INSPECT LIGHT CONTROL RHEOSTAT

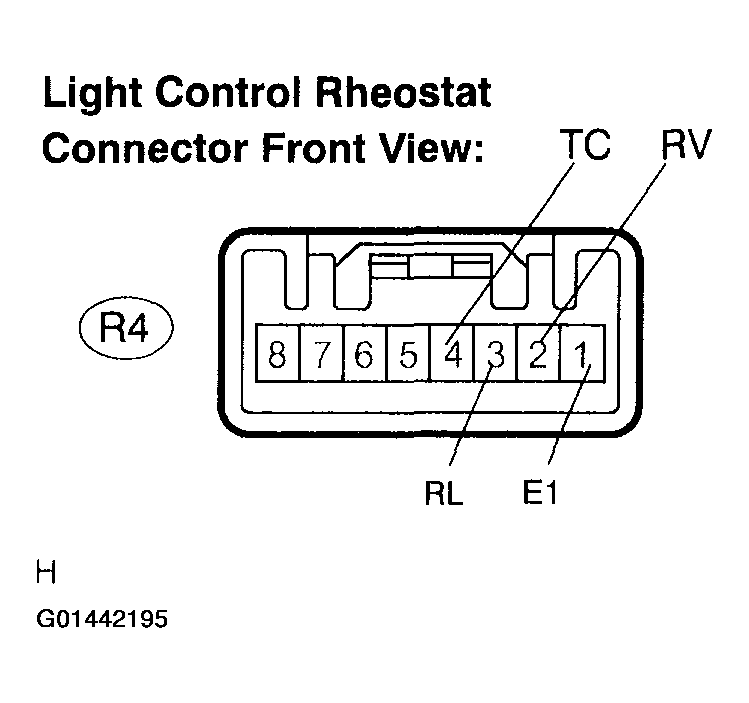

- Disconnect the light control rheostat connector.

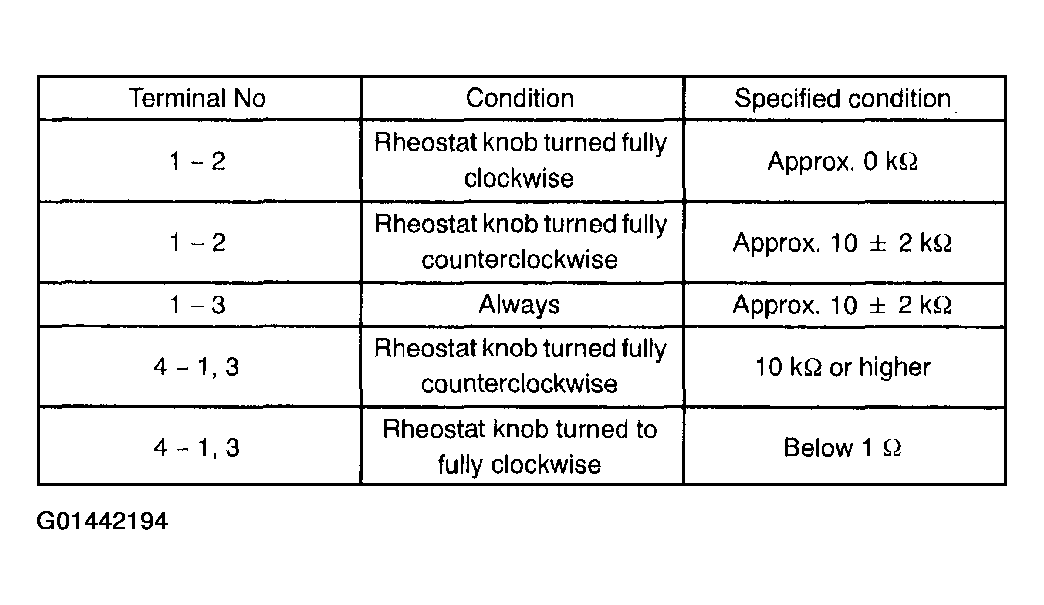

- Measure the voltage according to the value (s) in the figure Fig 5 below.
Standard:
NG: REPLACE LIGHT CONTROL RHEOSTAT
OK: Go to next step.
- CHECK HARNESS AND CONNECTOR (LIGHT CONTROL RHEOSTAT - DRIVER SIDE JUNCTION BLOCK) (SEE
ELECTRONIC CIRCUIT INSPECTION PROCEDURE
)

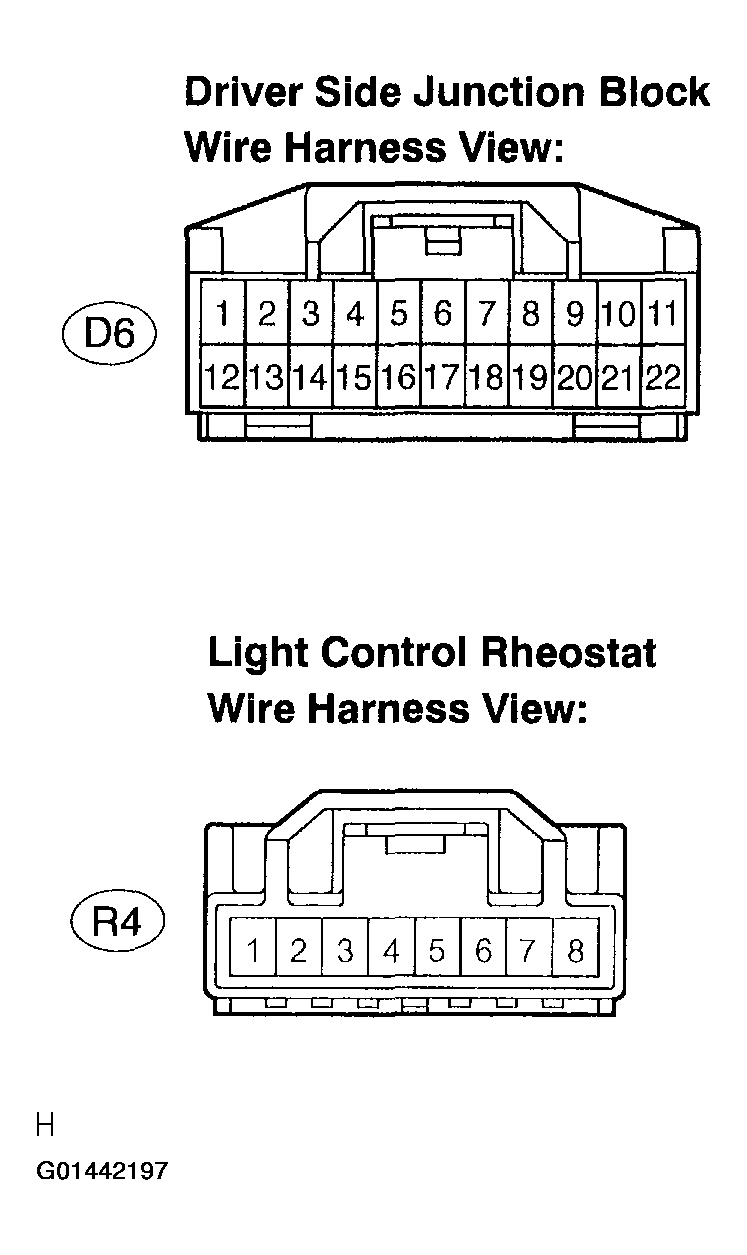

- Disconnect the D6 and R4 connectors.

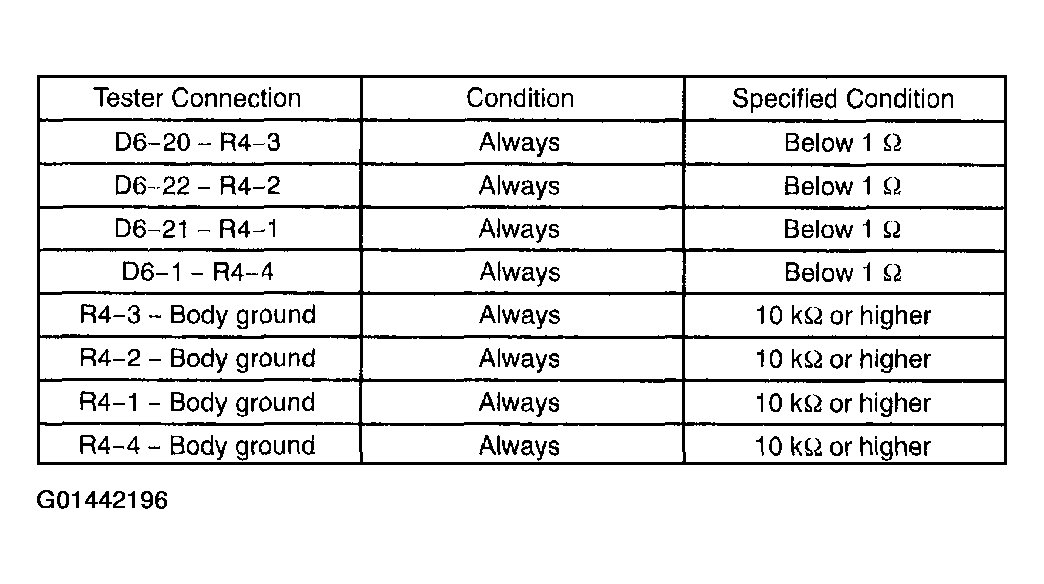

- Measure the resistance according to the value (s) in figure Fig 7 below.
Standard:
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step.
- REPLACE DRIVER SIDE JUNCTION BLOCK
OK: Go to next step.
Normal operation
NG: REPLACE COMBINATION METER ASSY (SEE OVERHAUL )
OK: END
