Section 237 (Combination Meter - Diagnosis): Location

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

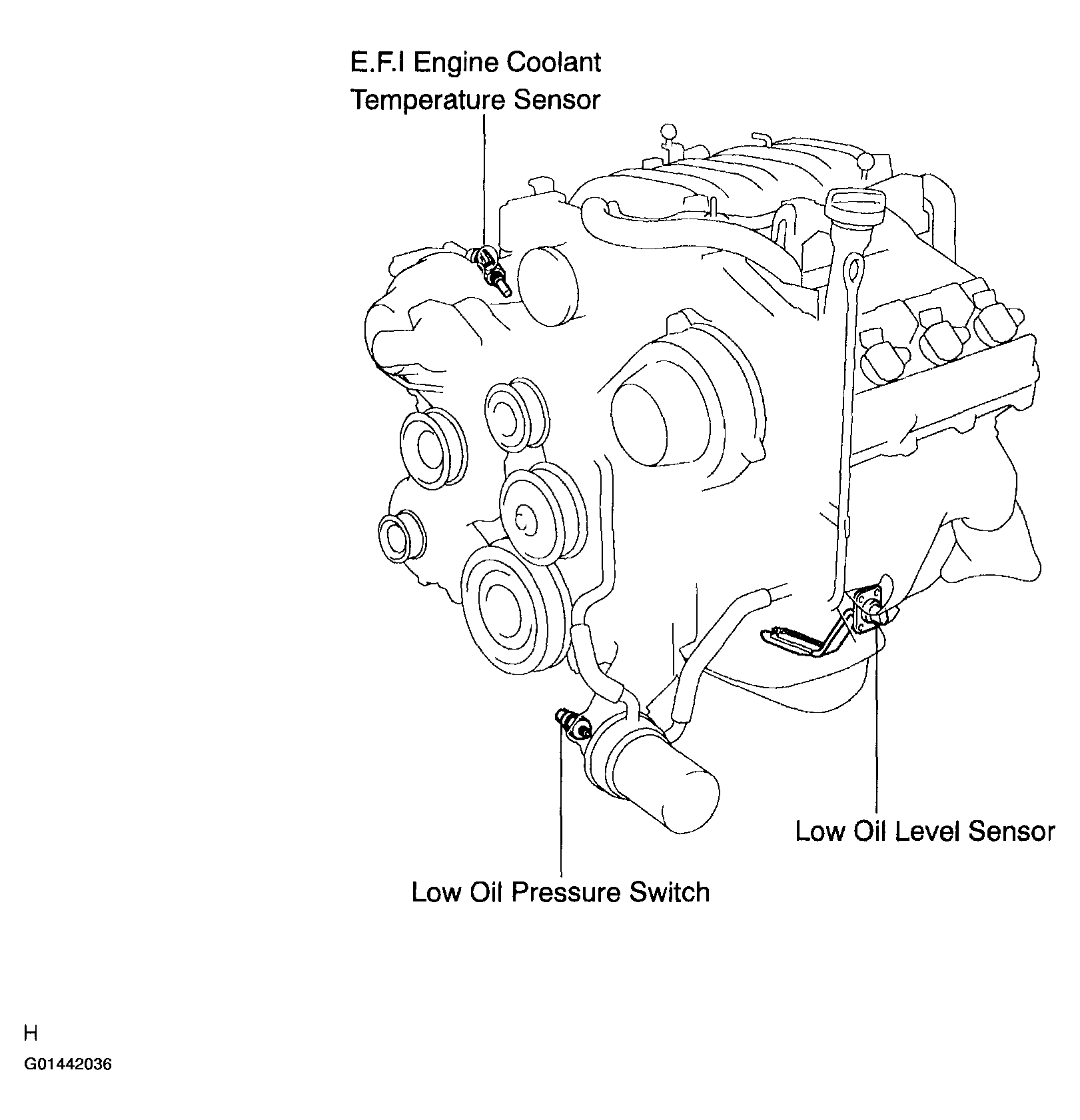

Fig 1: Identifying Combination Meter Components Location (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

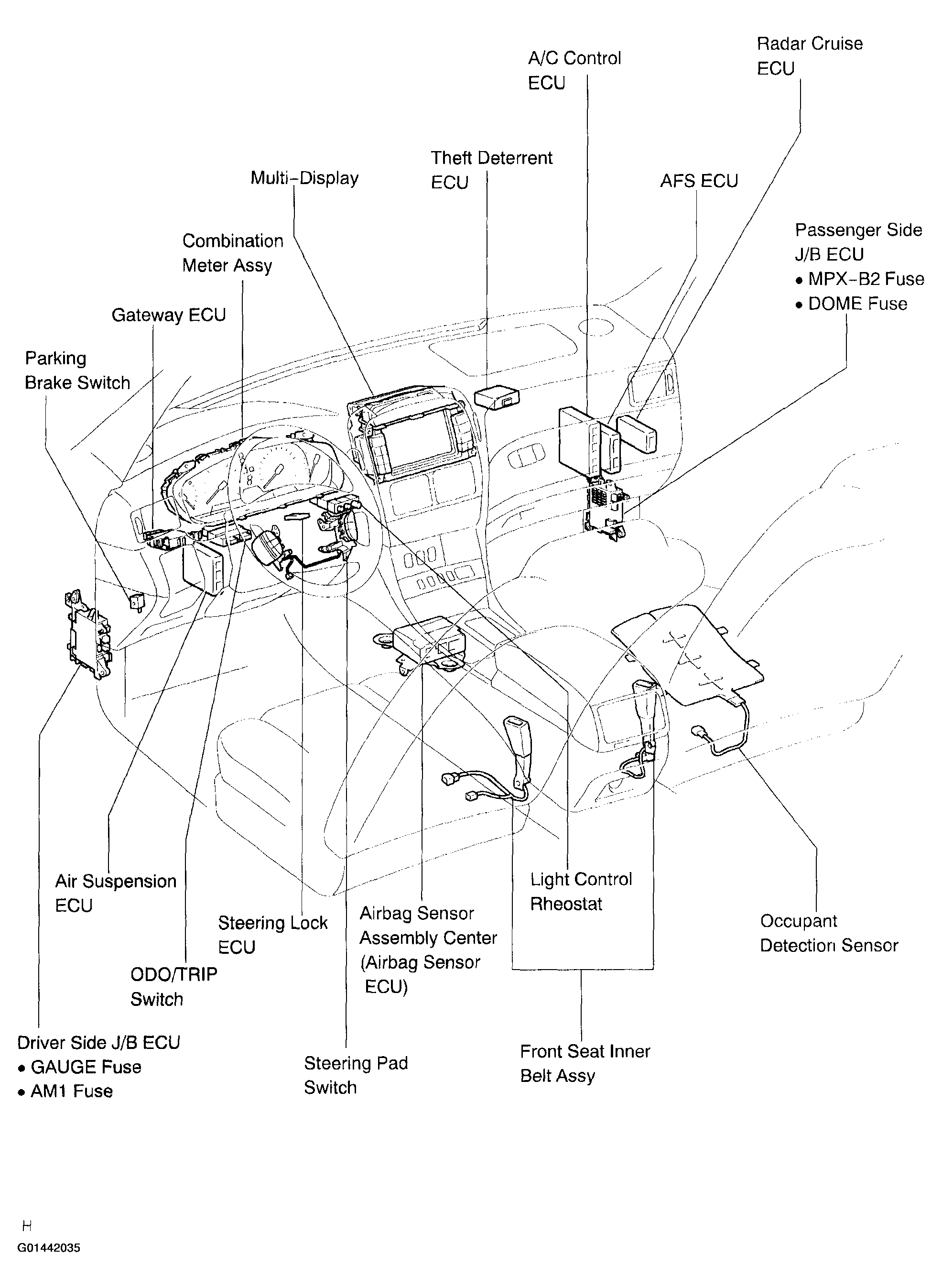

Fig 2: Identifying Combination Meter Components Location (2 Of 3)

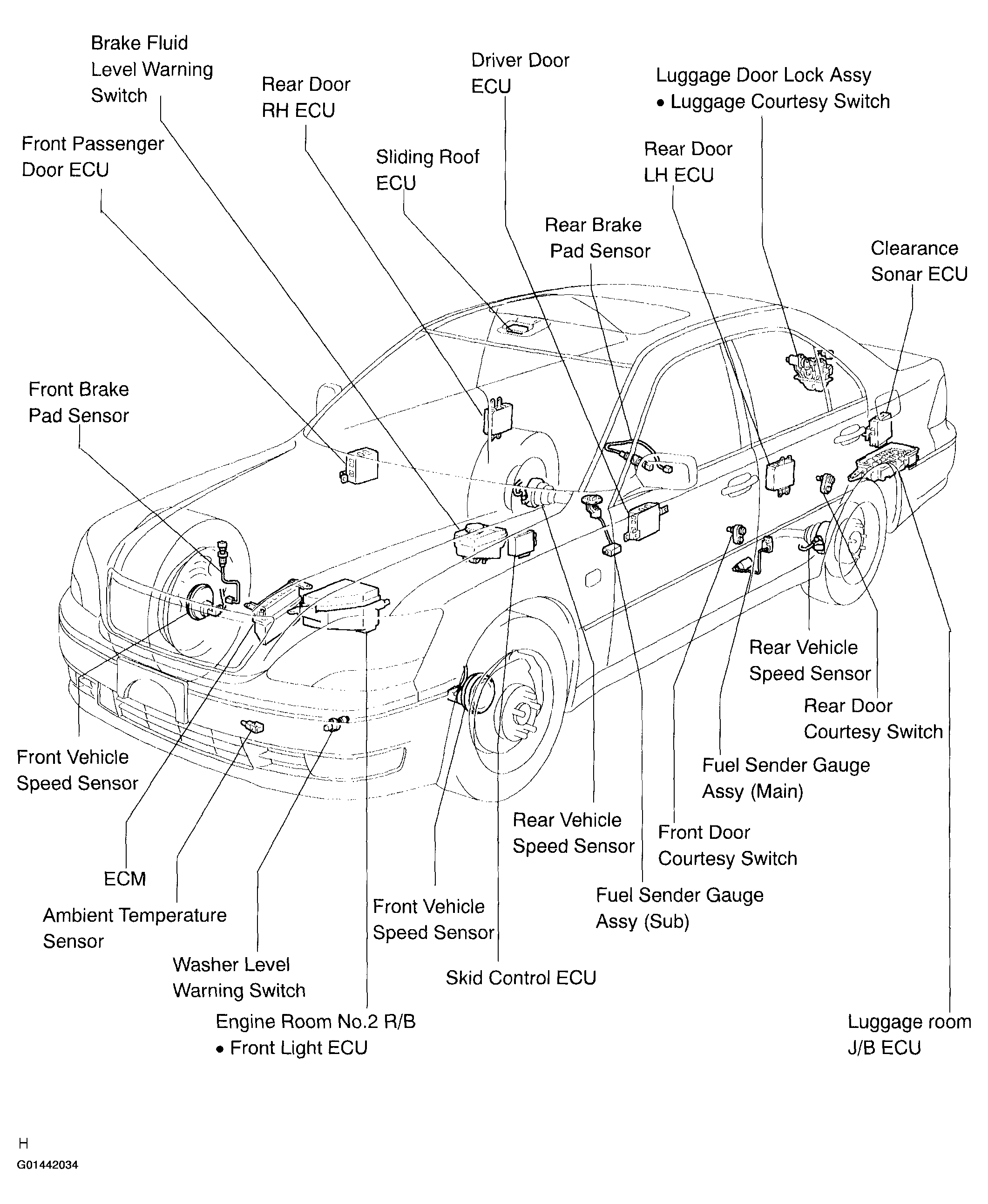

Fig 3: Identifying Combination Meter Components Location (3 Of 3)
