Section 237 (Combination Meter - Diagnosis)
>>
Data List/Active Test
>>
Active Test
>>
Meter:
Active Test: Meter:
WARNING:
This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

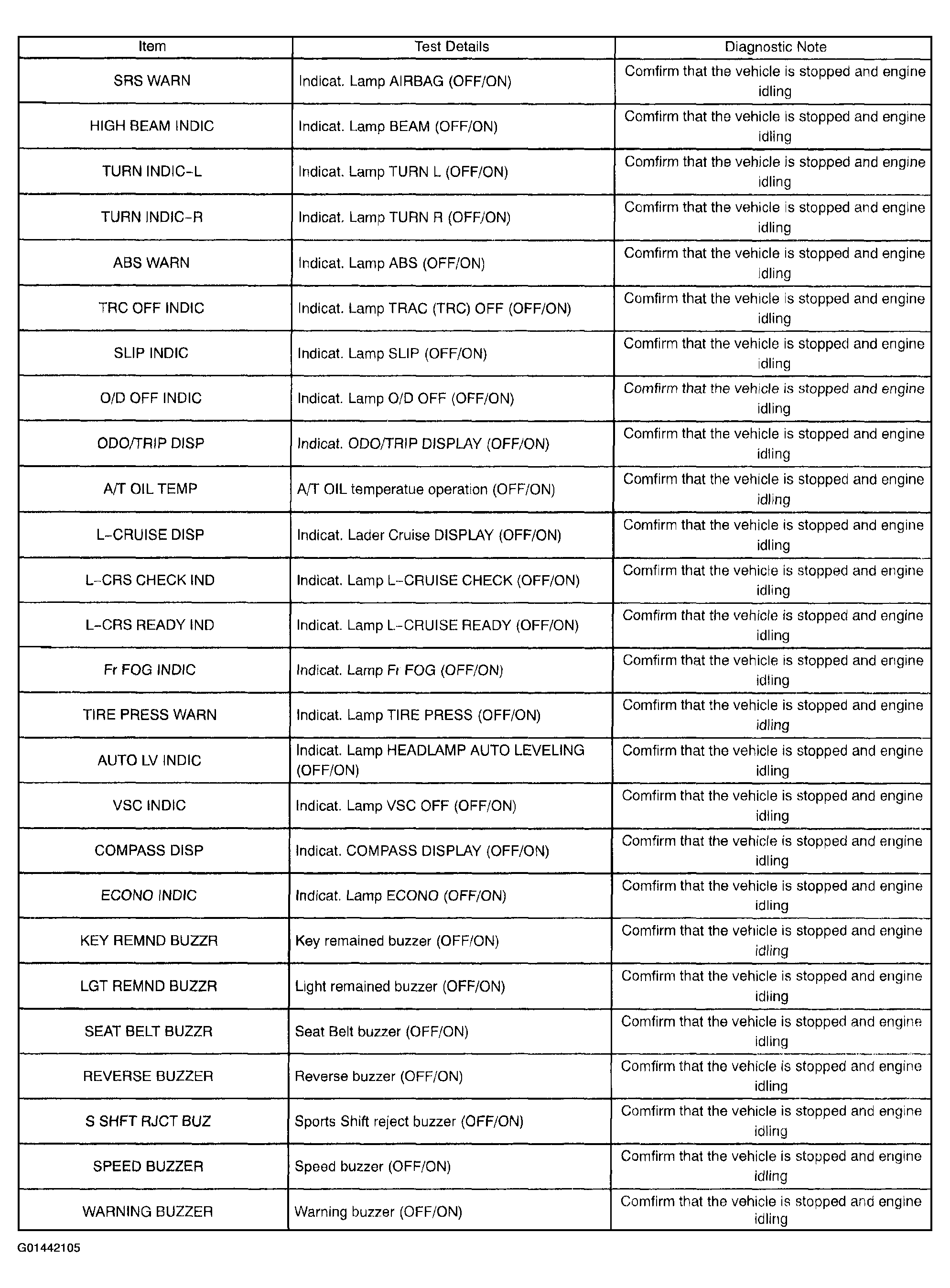

Fig 1: Meter - Active Test Chart (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

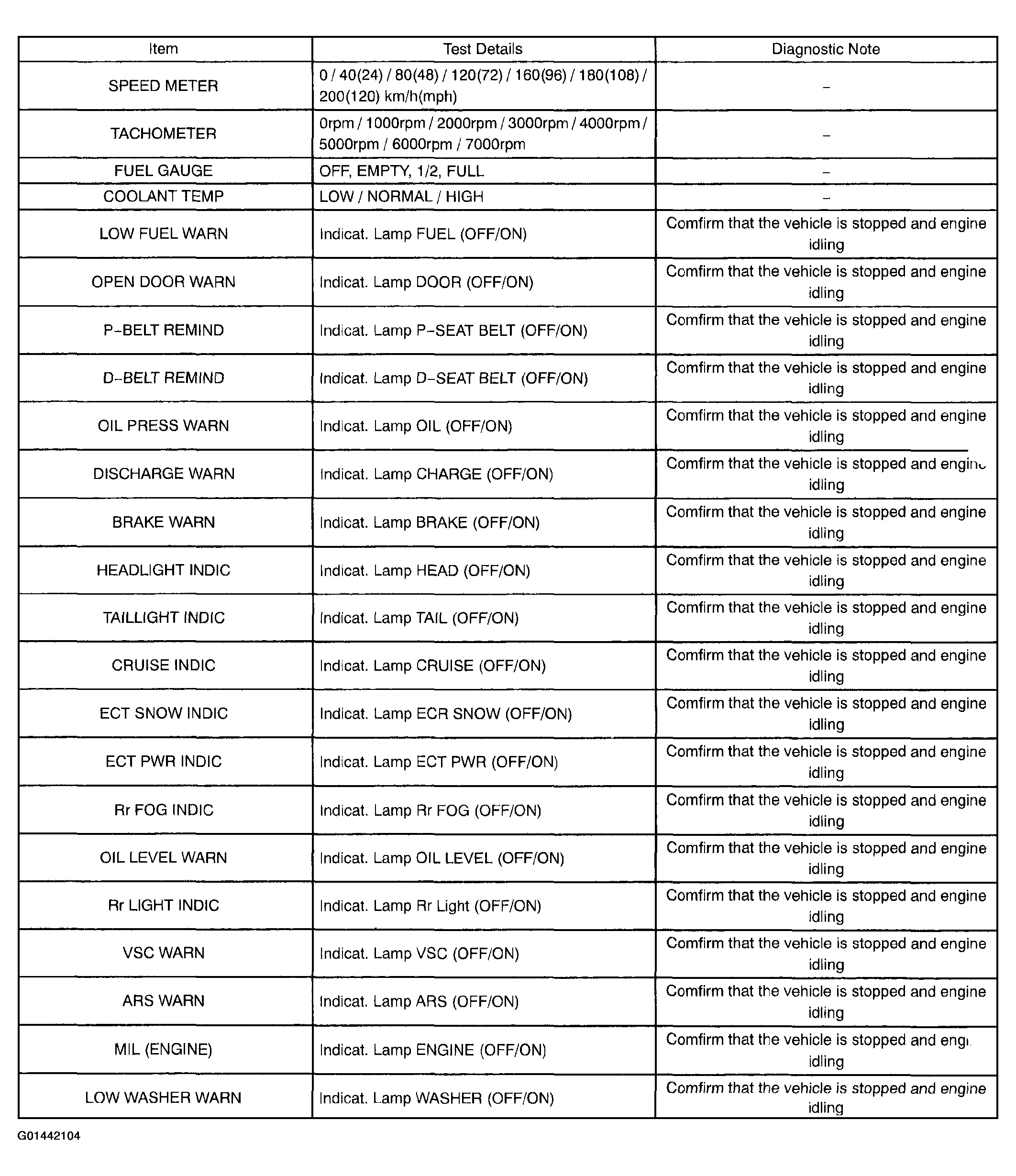

Fig 2: Meter - Active Test Chart (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

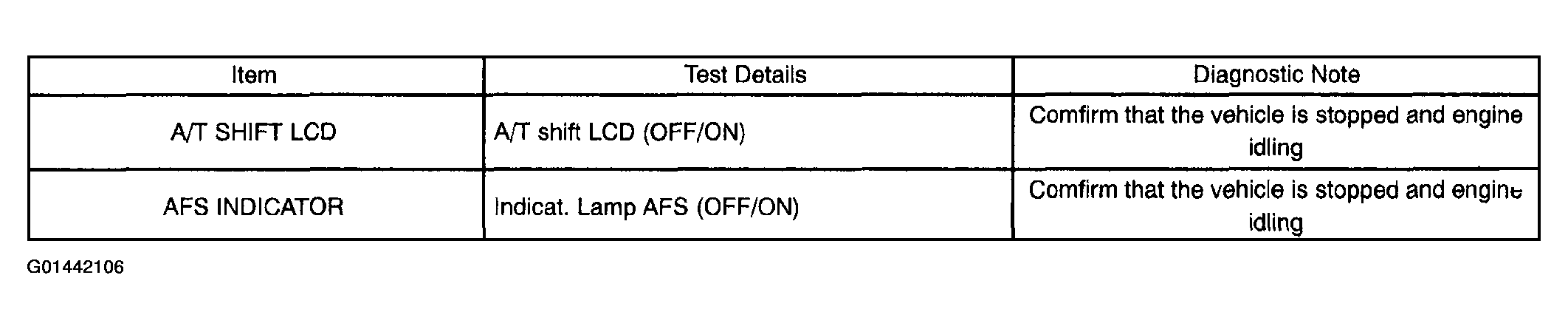

Fig 3: Meter - Active Test Chart (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
