Terminals Of Ecu

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

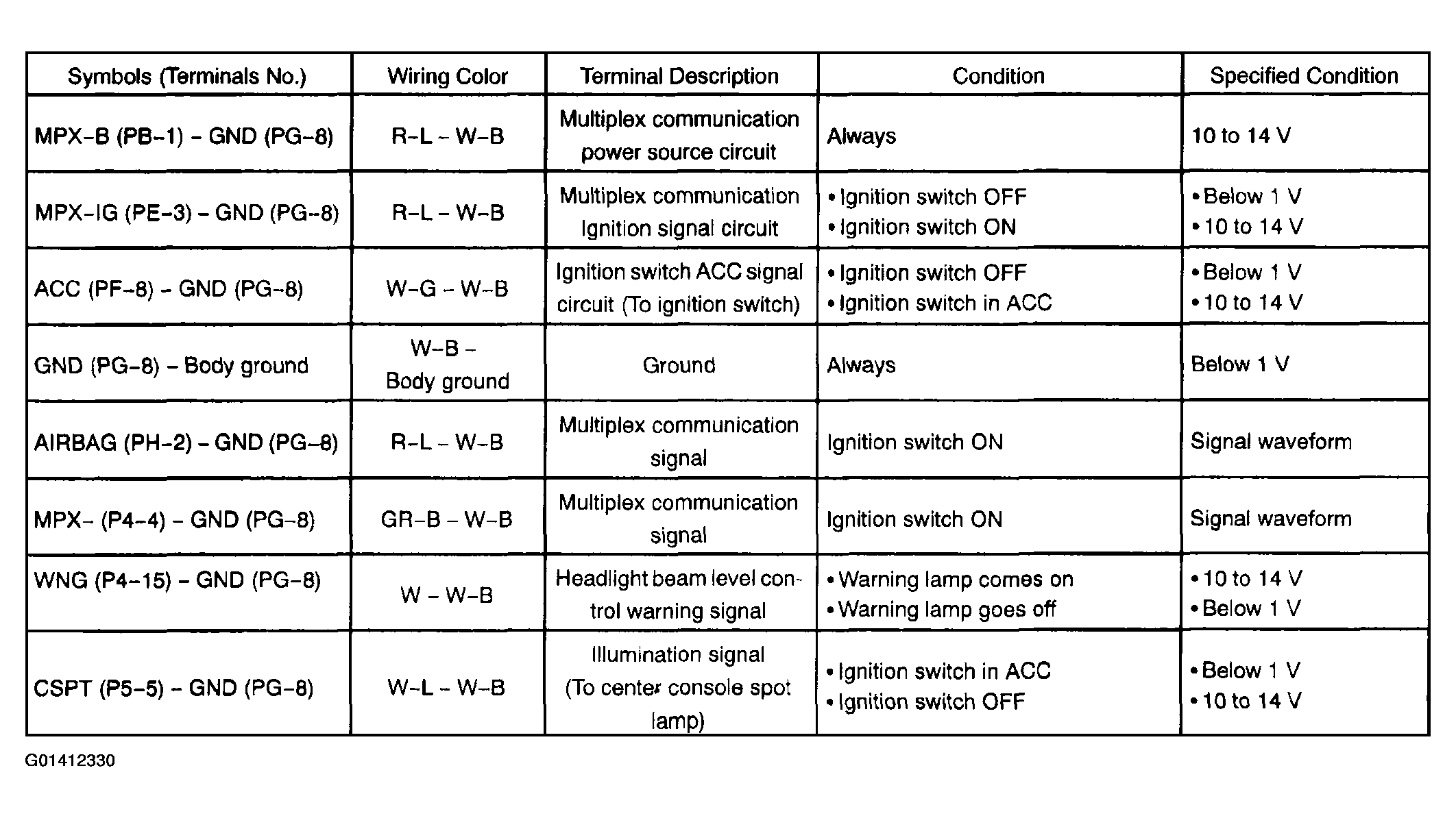

ENGINE ROOM NO.2 RELAY BLOCK

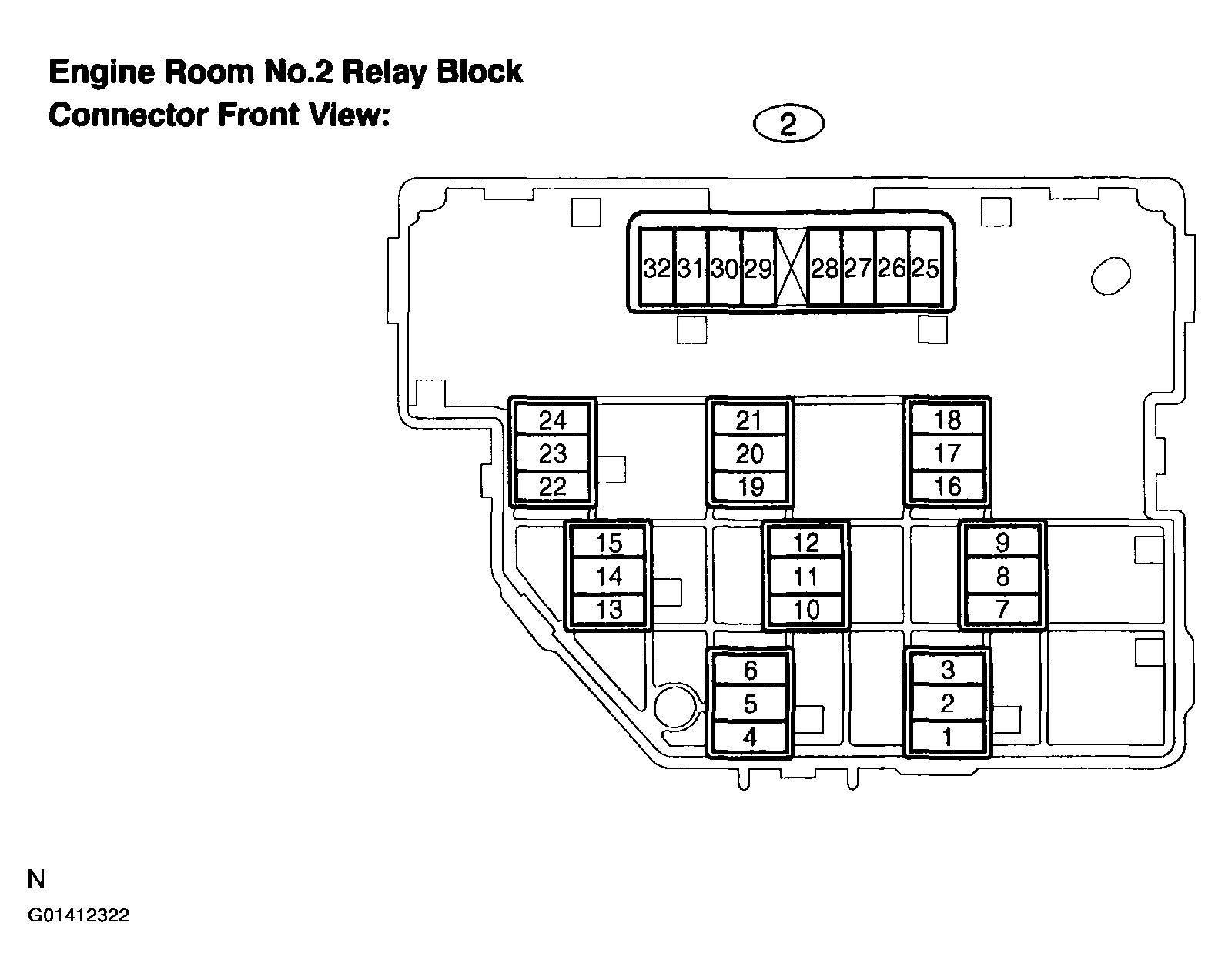

Fig 1: Identifying Connector Terminals Of Relay Block
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

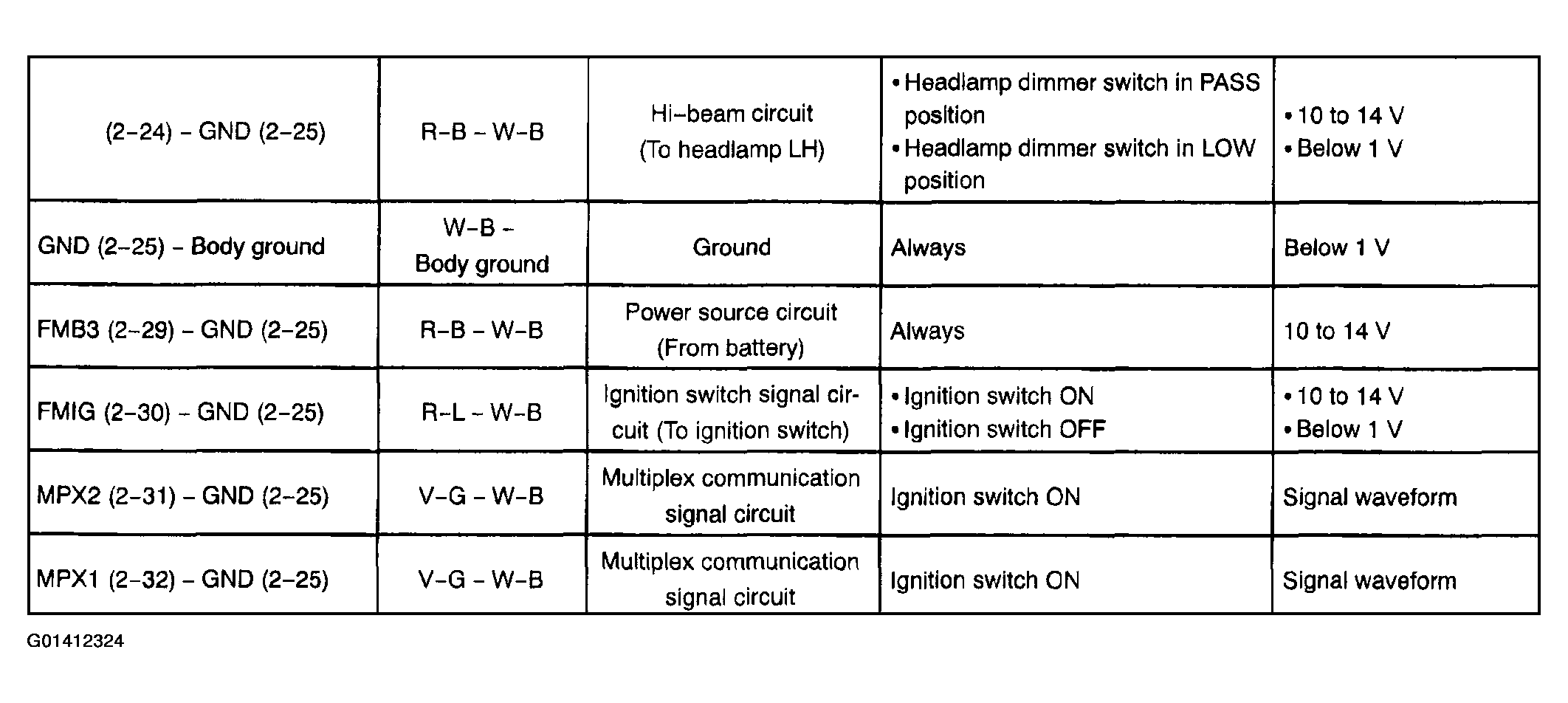

Fig 2: Relay Block Reference Chart (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Relay Block Reference Chart (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

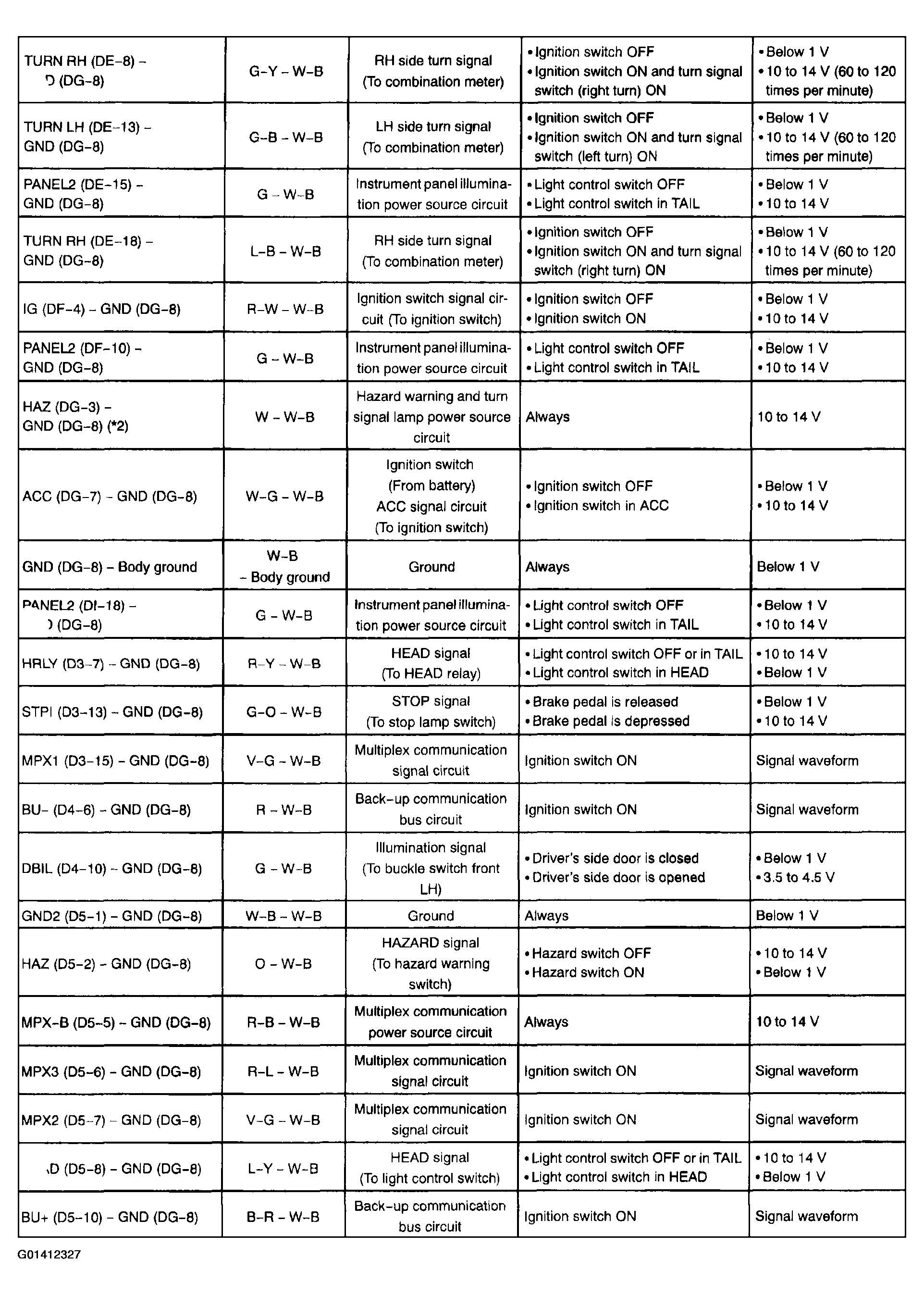

DRIVER SIDE JUNCTION BLOCK

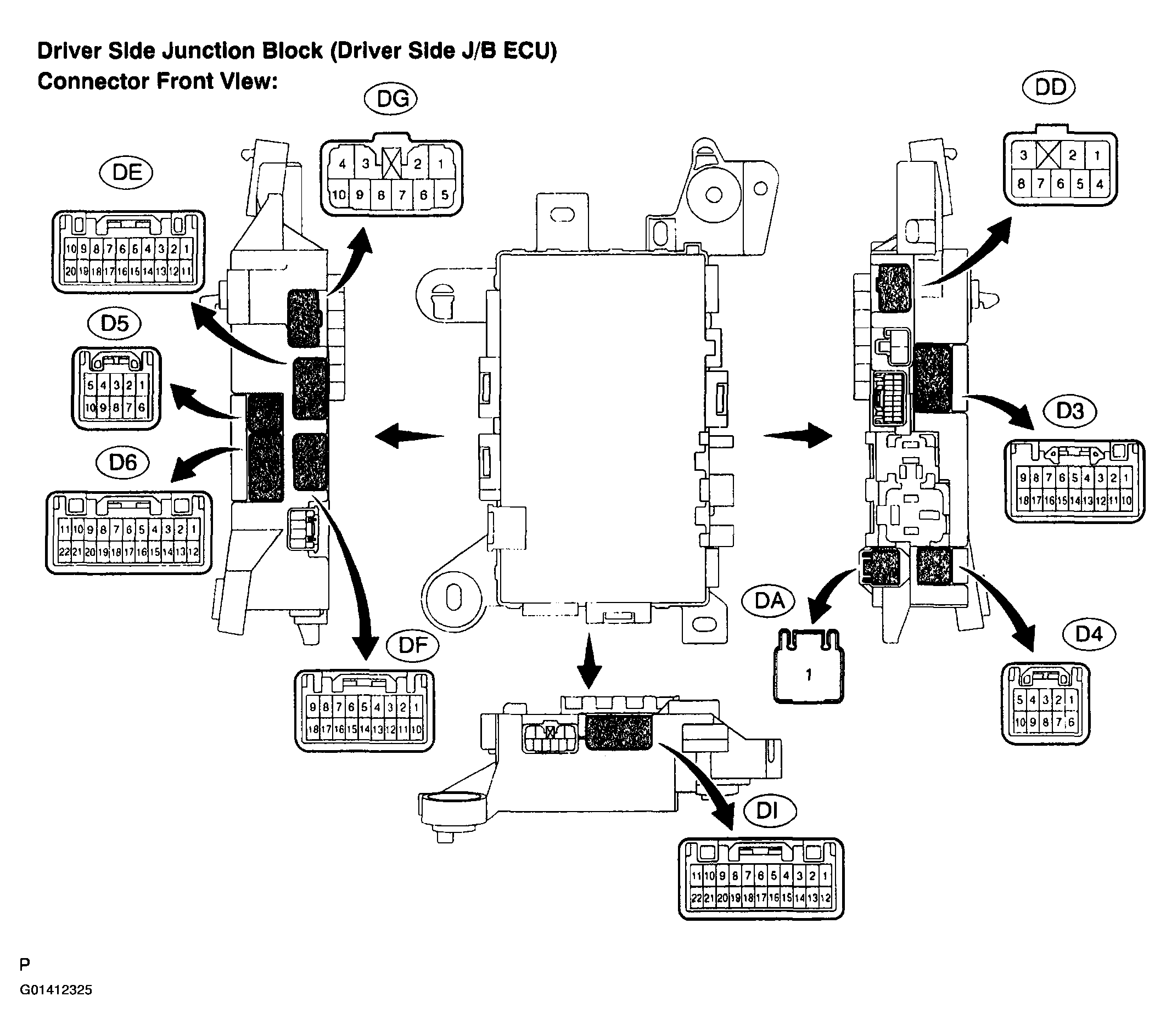

Fig 4: Identifying Connector Terminals Of Driver Side Junction Block
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

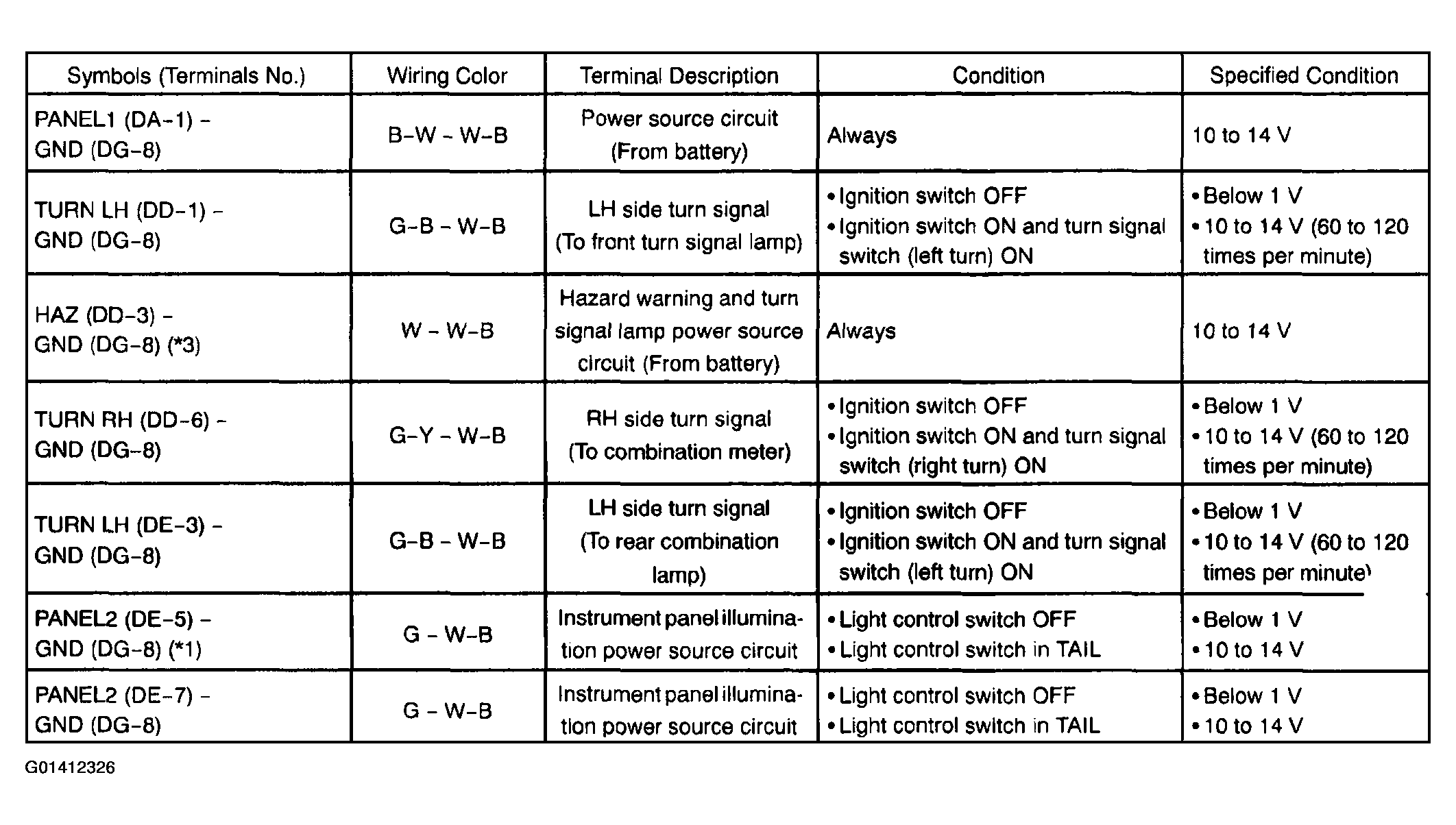

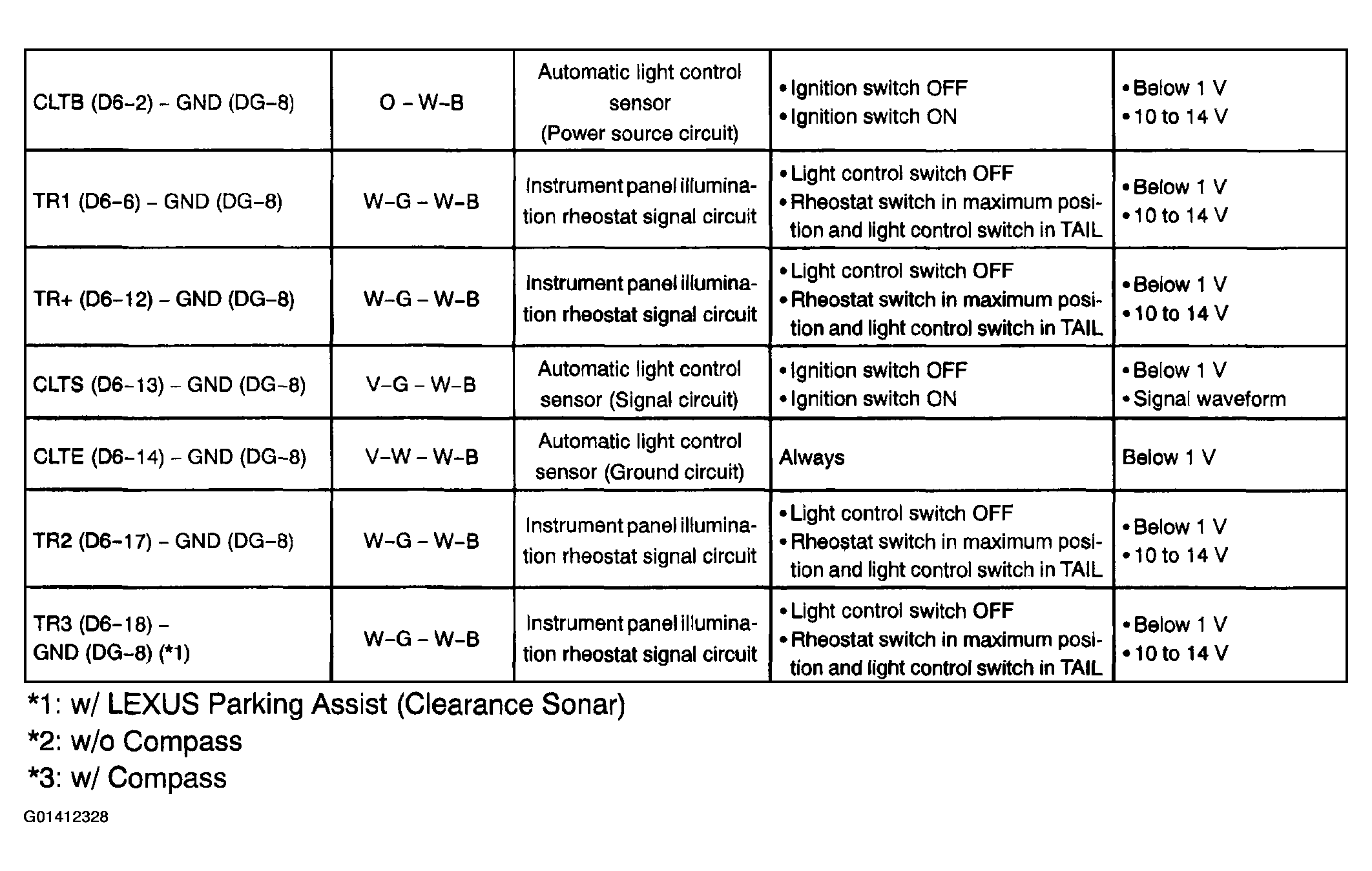

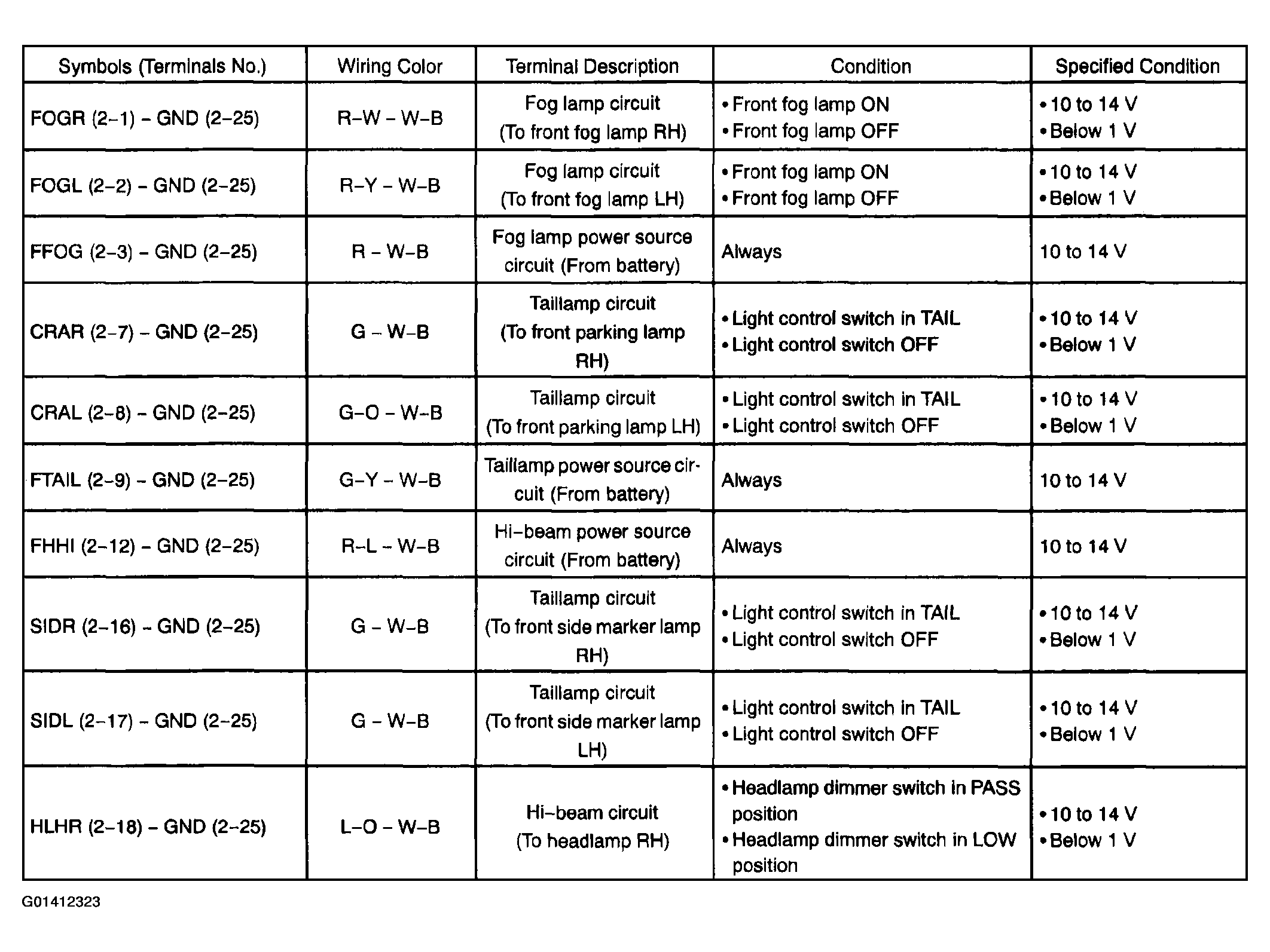

Fig 5: Driver Side Junction Block Reference Chart (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Driver Side Junction Block Reference Chart (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Driver Side Junction Block Reference Chart (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
PASSENGER SIDE JUNCTION BLOCK

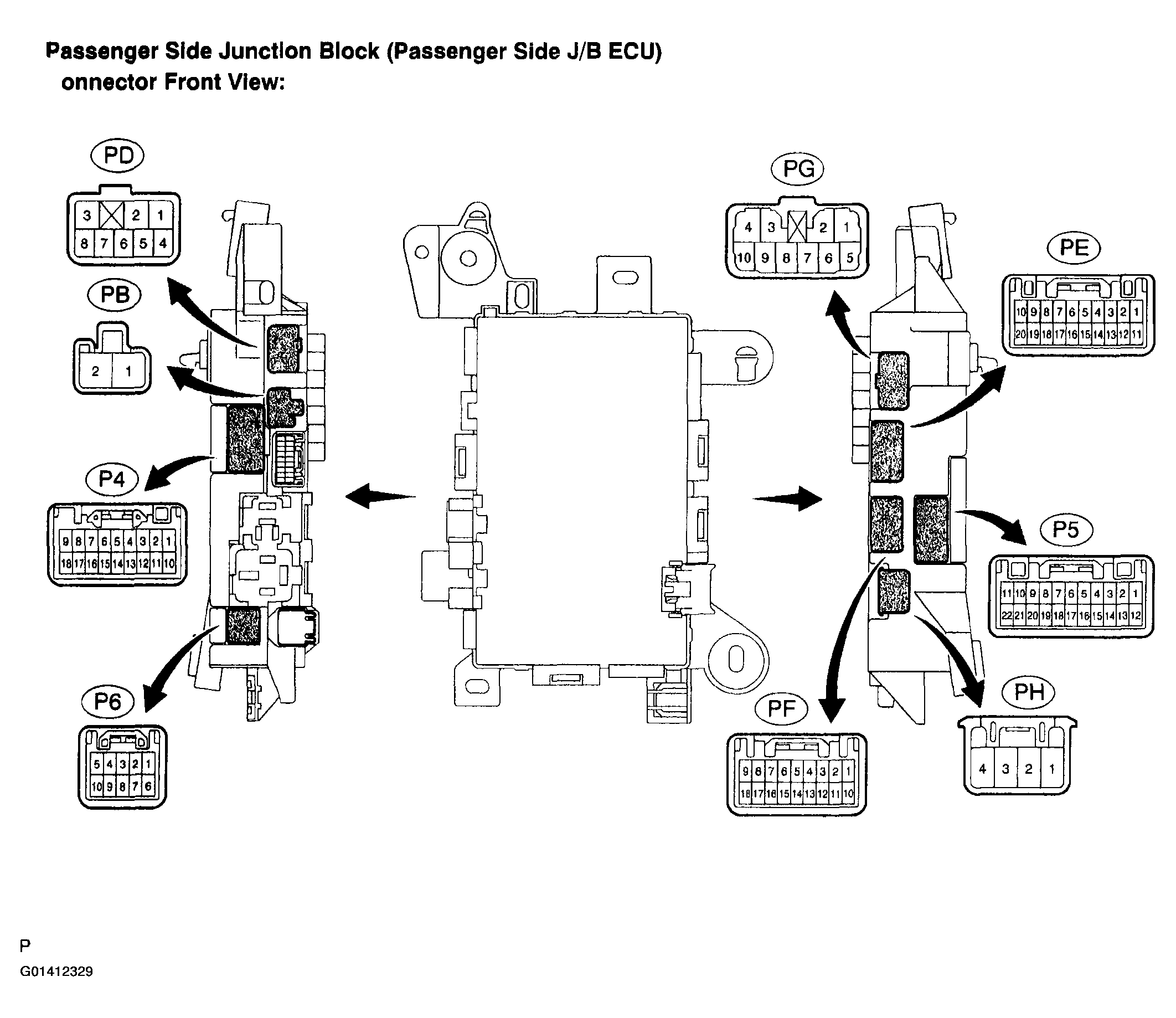

Fig 8: Identifying Connector Terminals Of Passenger Side Junction Block
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Passenger Side Junction Block Reference Chart (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Passenger Side Junction Block Reference Chart (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

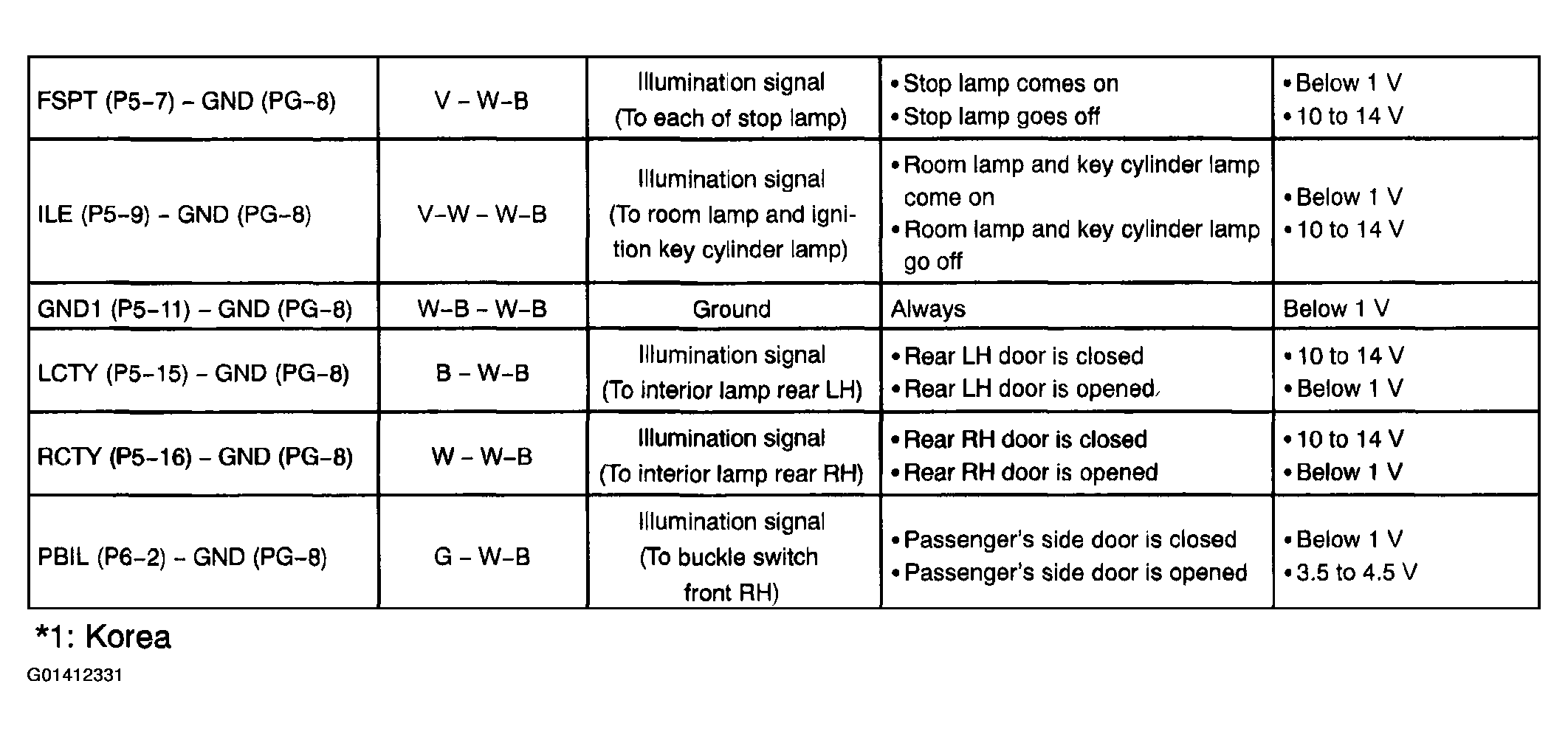

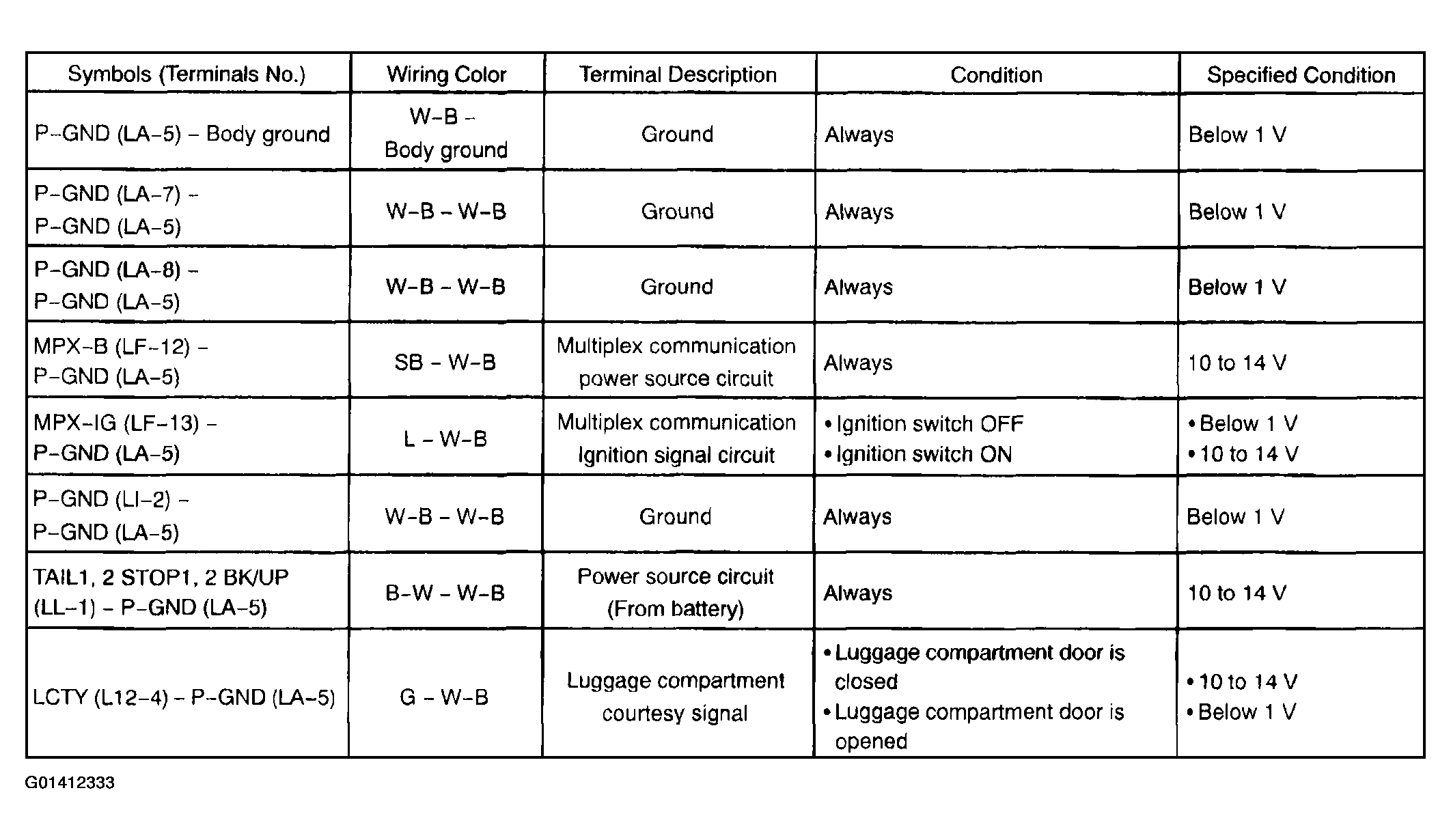

LUGGAGE ROOM JUNCTION BLOCK

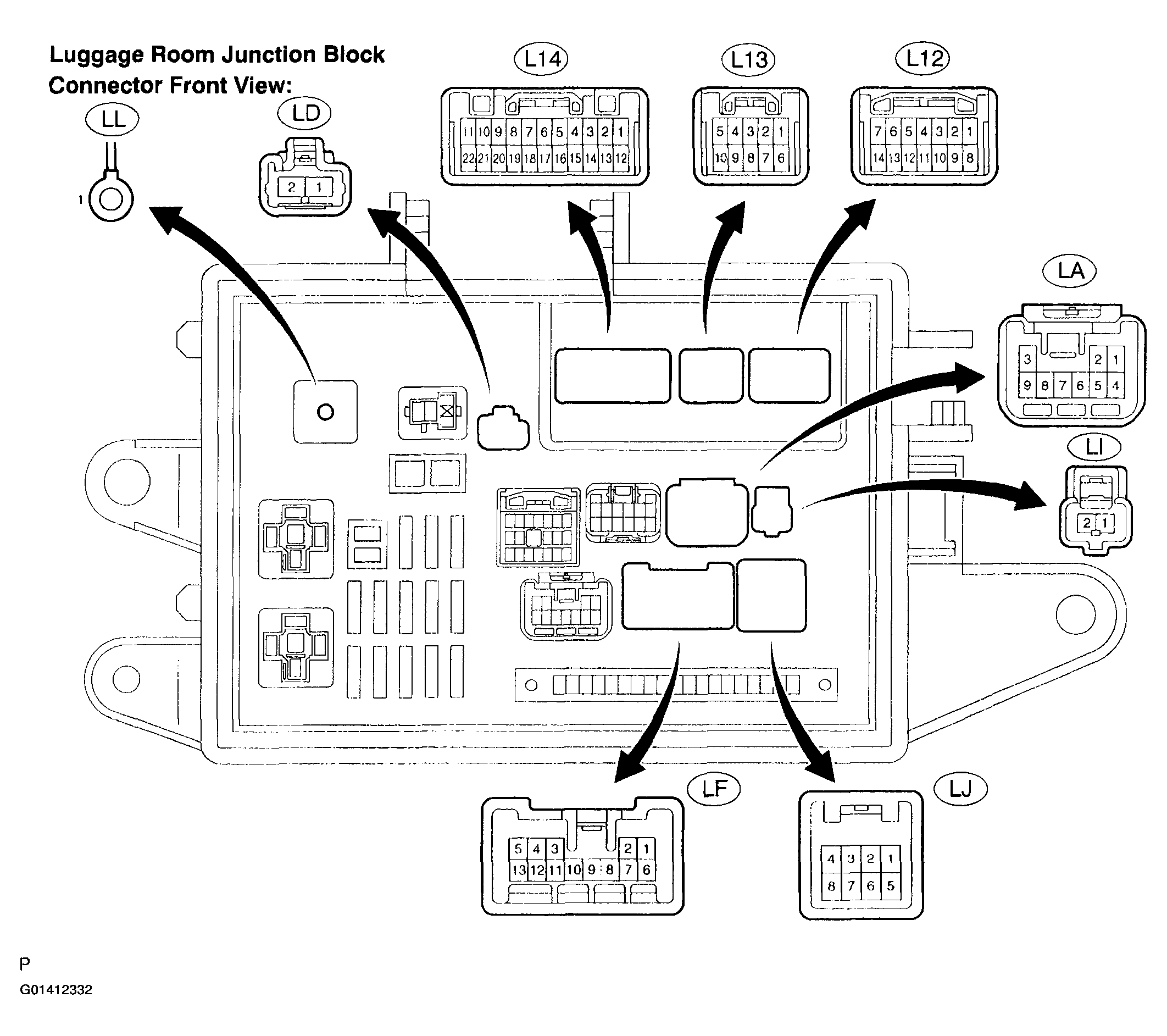

Fig 11: Identifying Connector Terminals Of Luggage Room Junction Block
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

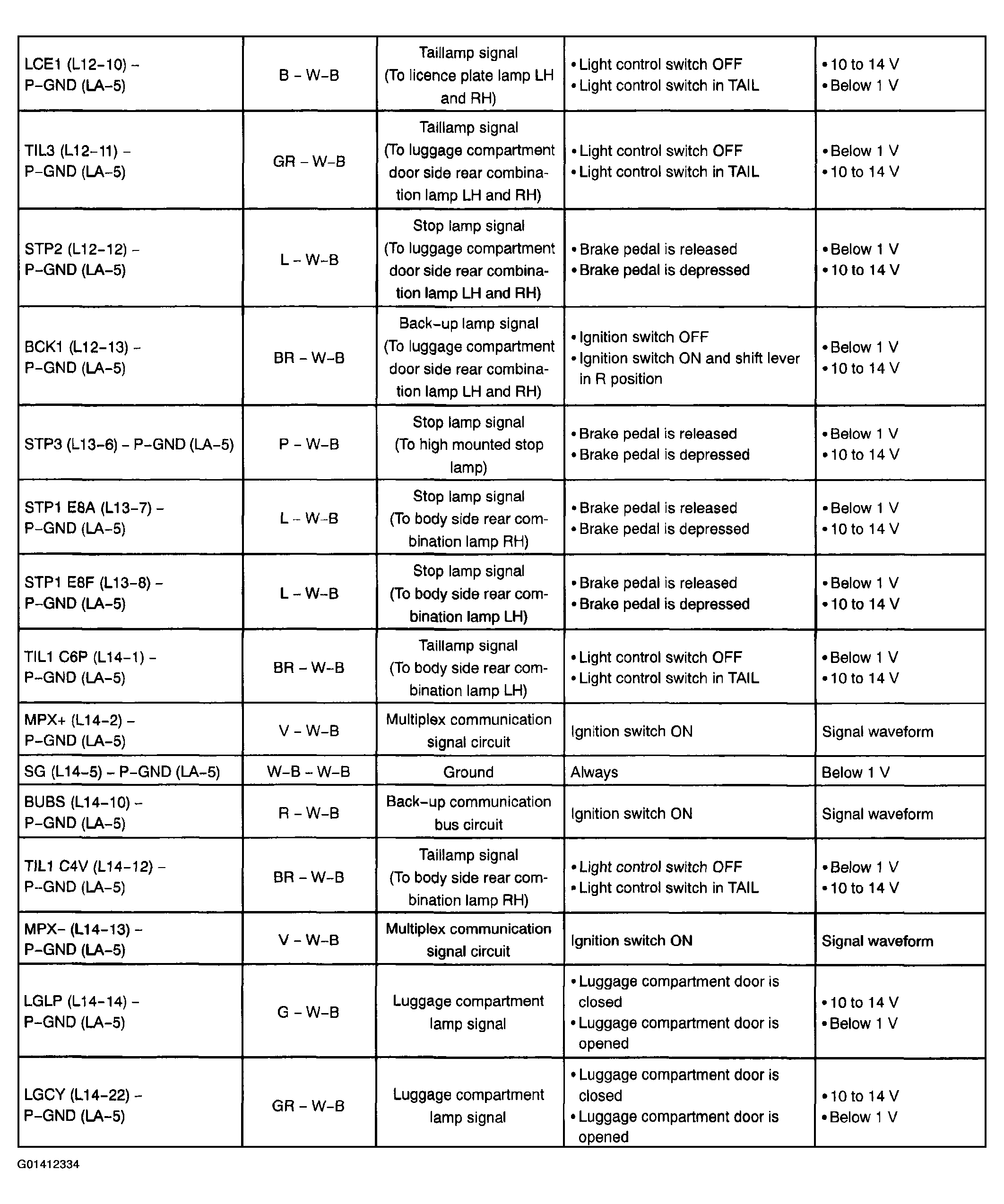

Fig 12: Luggage Room Junction Block Reference Chart (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Luggage Room Junction Block Reference Chart (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMBINATION SWITCH

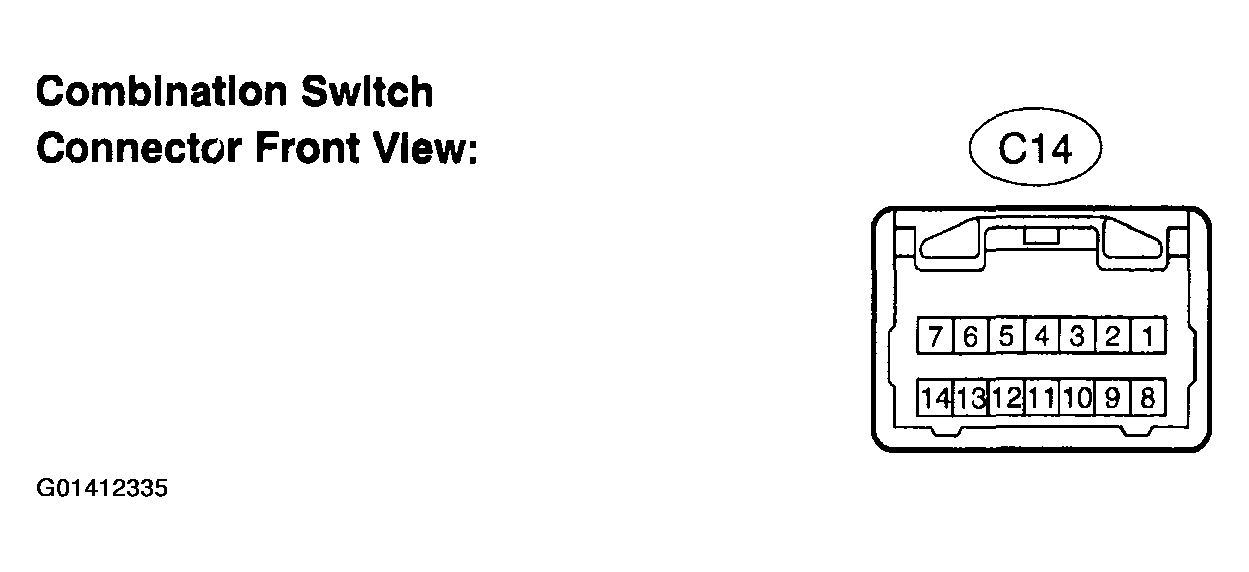

Fig 14: Identifying Connector Terminals Of Combination Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

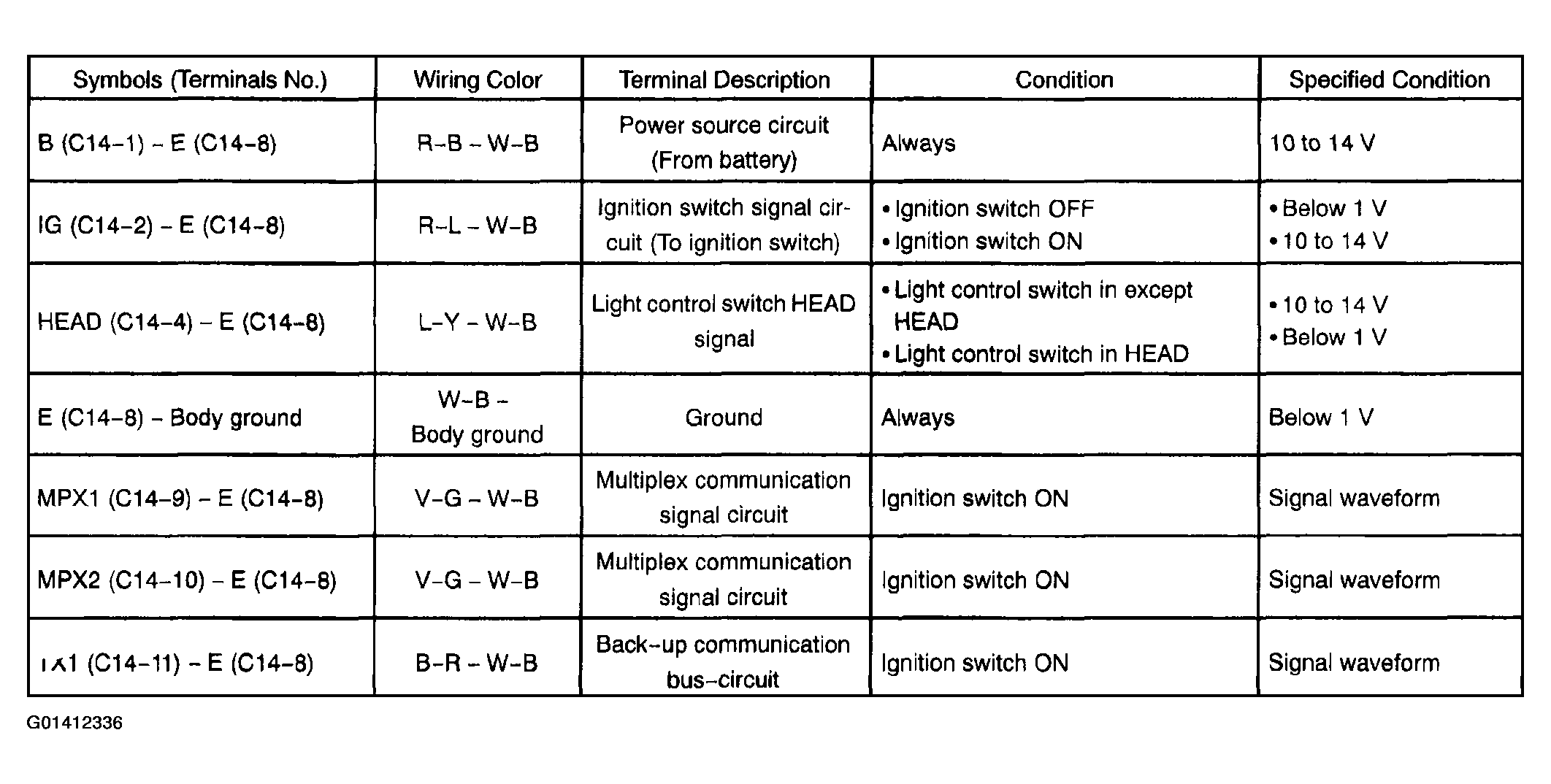

Fig 15: Combination Switch Reference Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

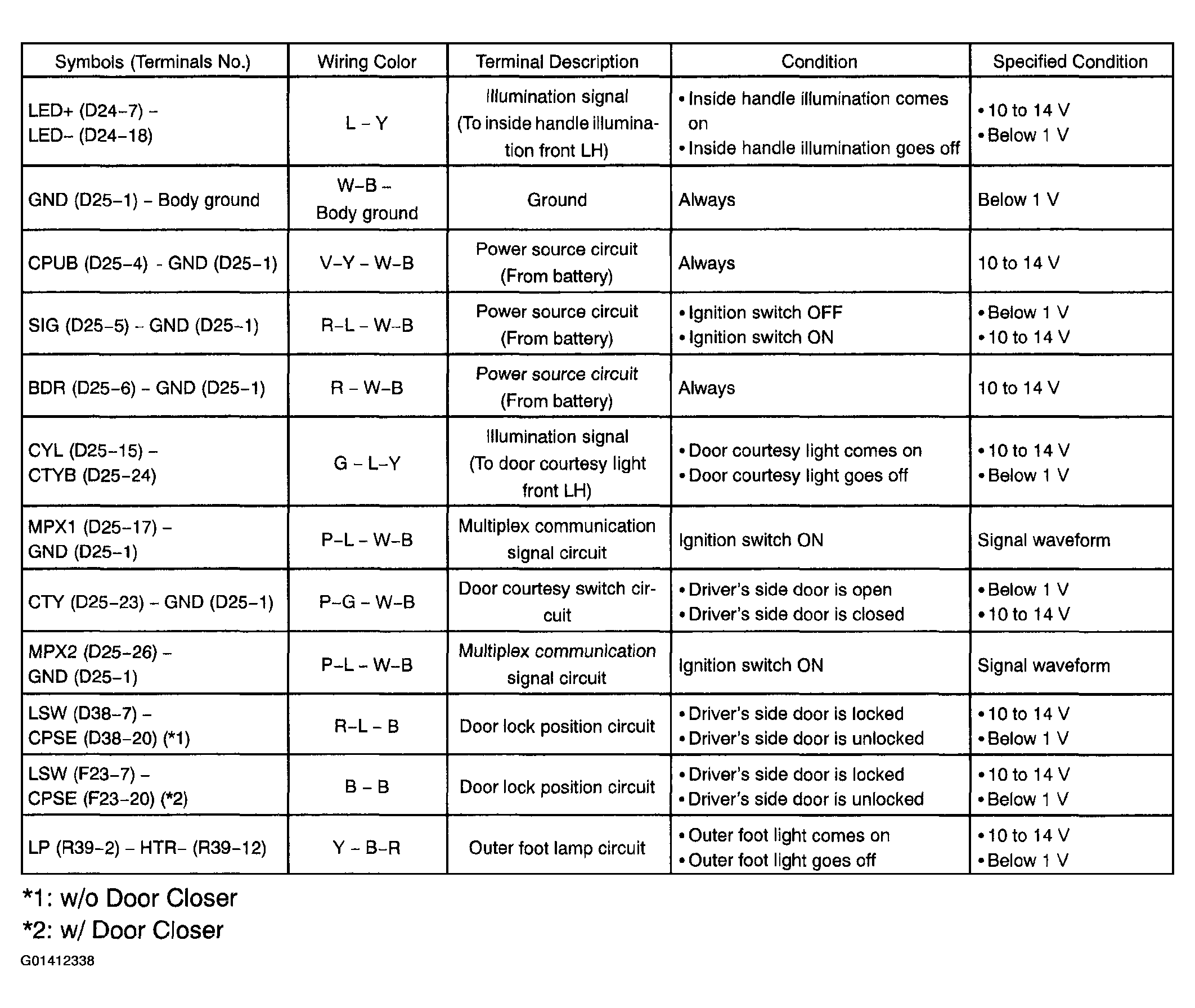

DRIVER DOOR ECU

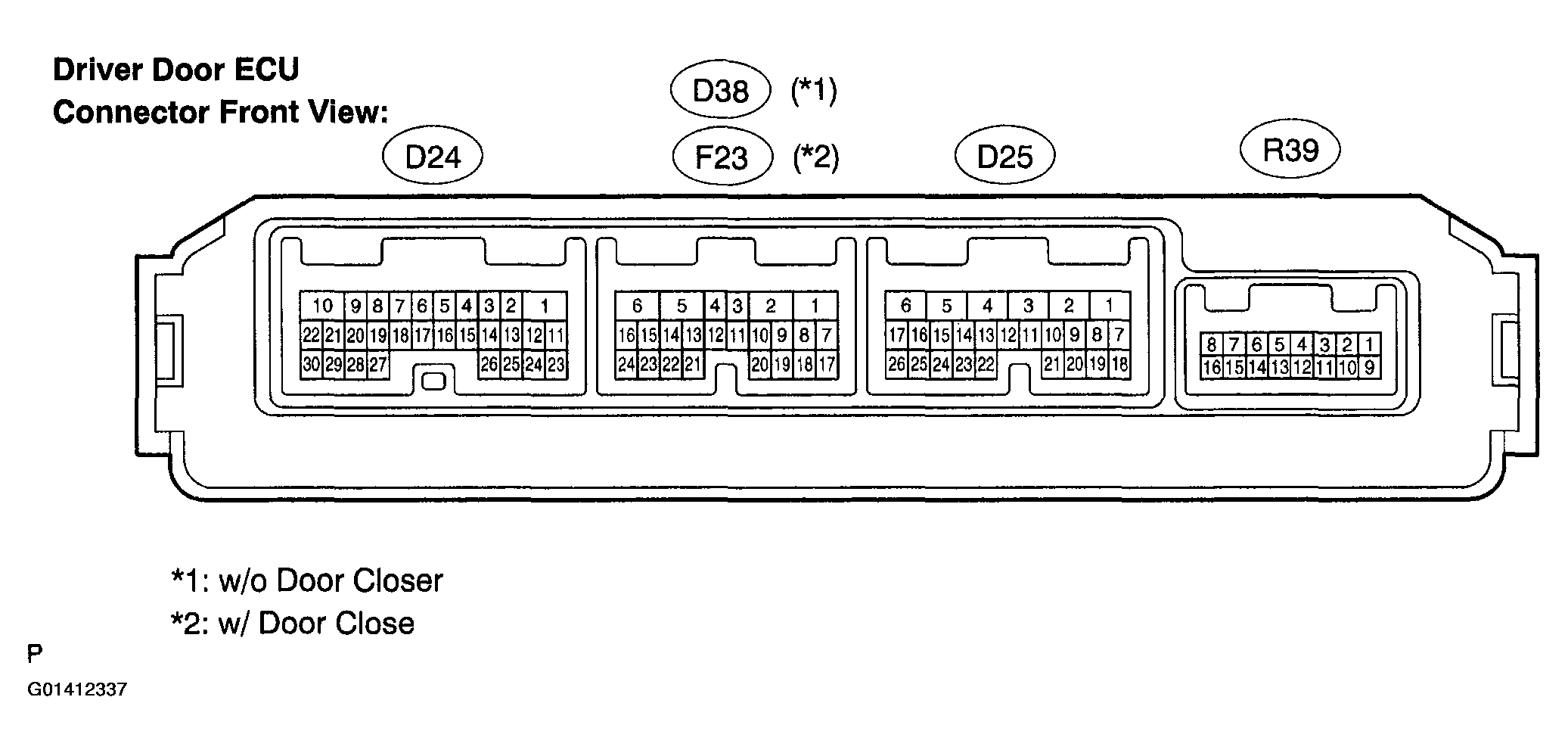

Fig 16: Identifying Connector Terminals Of Driver Door ECU
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

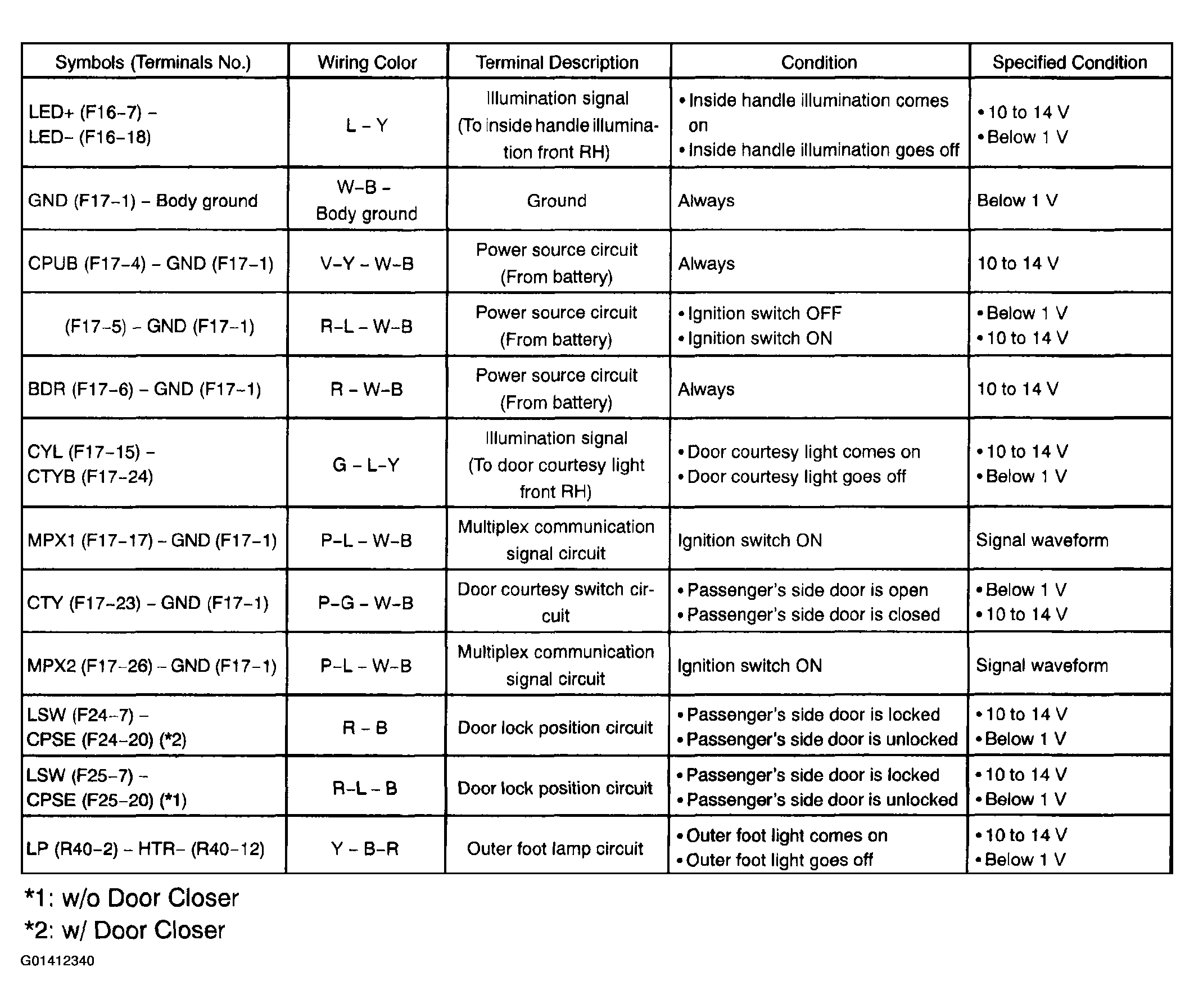

Fig 17: Driver Door ECU Reference Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
PASSENGER DOOR ECU

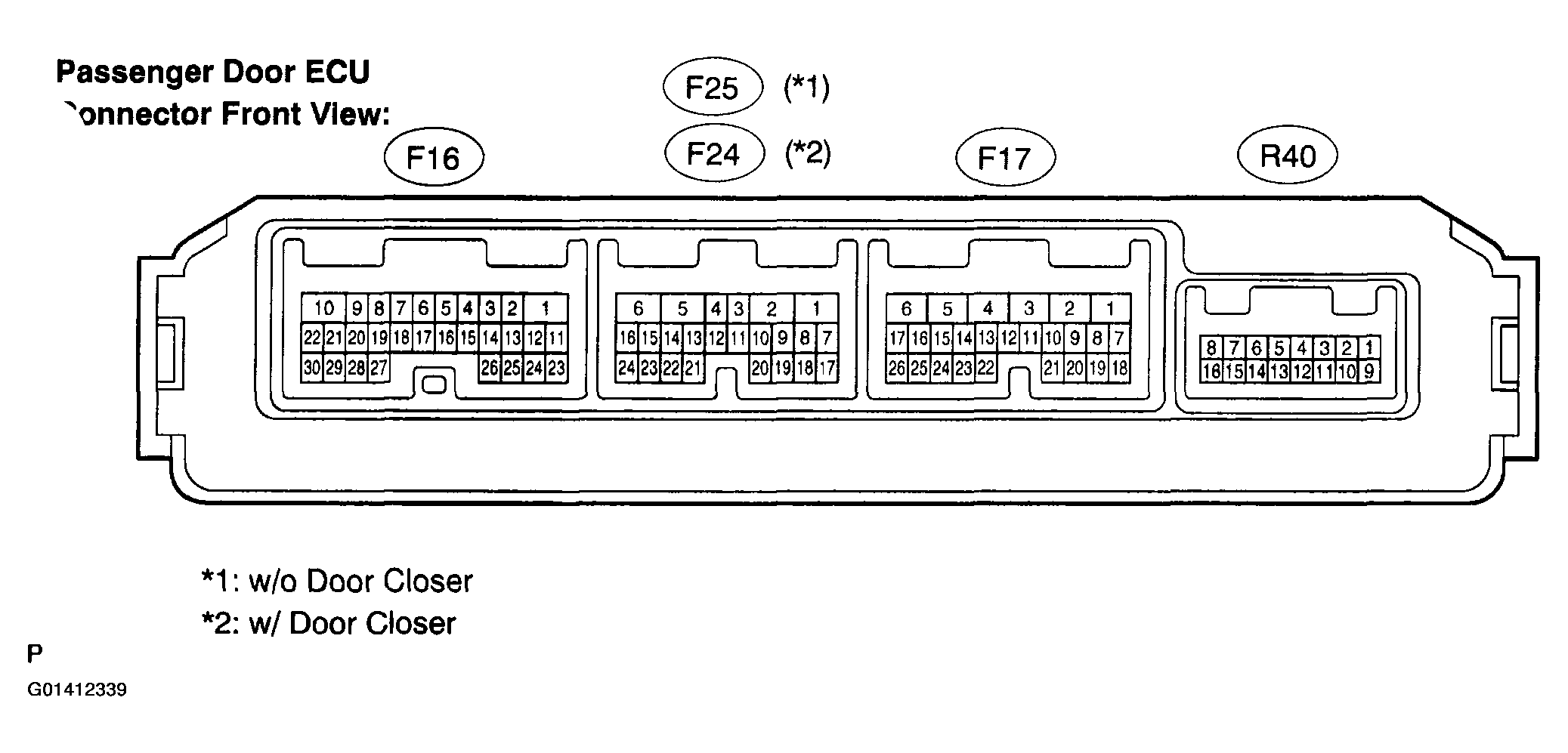

Fig 18: Identifying Connector Terminals Of Passenger Door ECU
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 19: Passenger Door ECU Reference Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REAR DOOR LH ECU

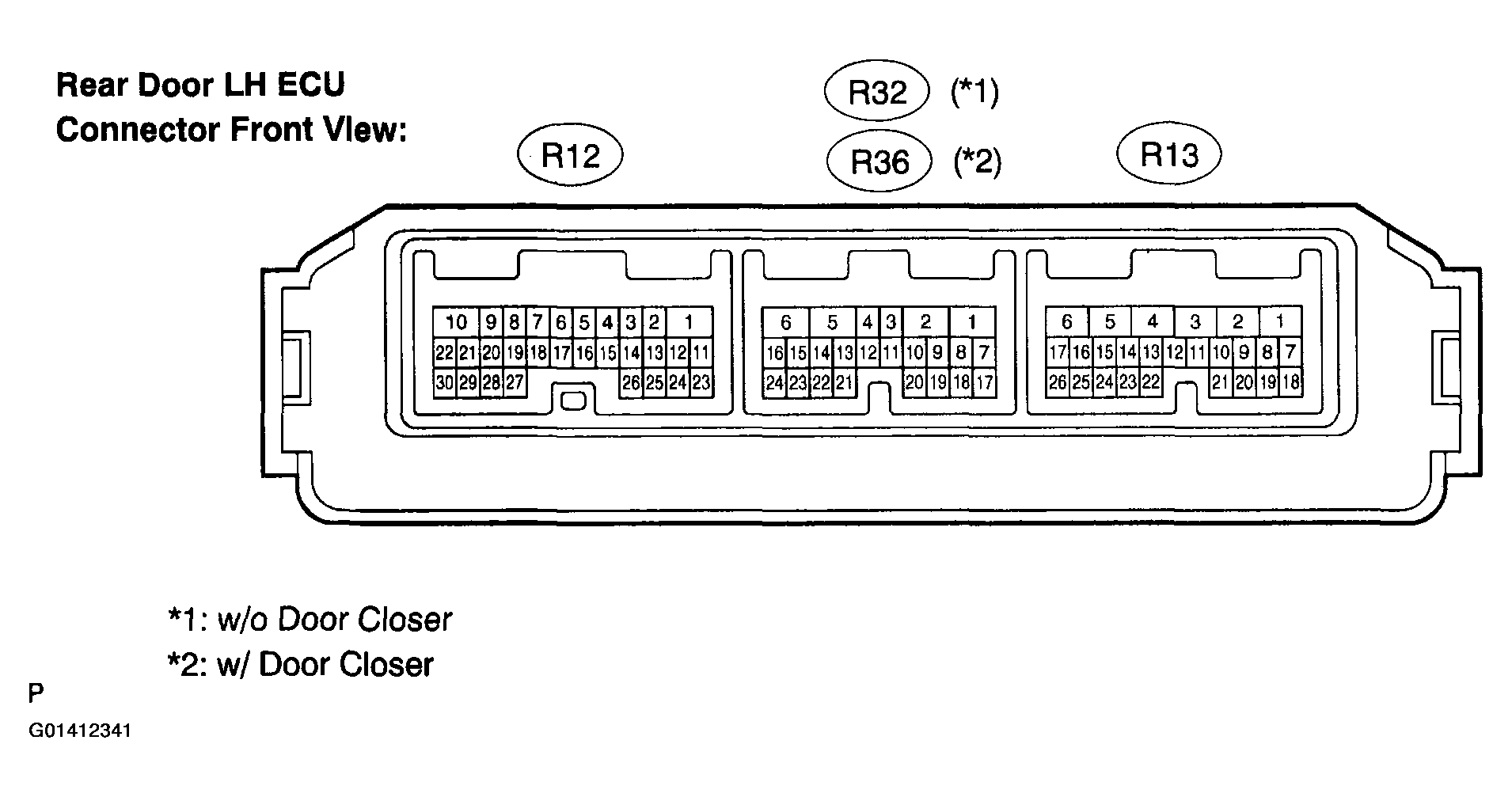

Fig 20: Identifying Connector Terminals Of Rear Door LH ECU
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

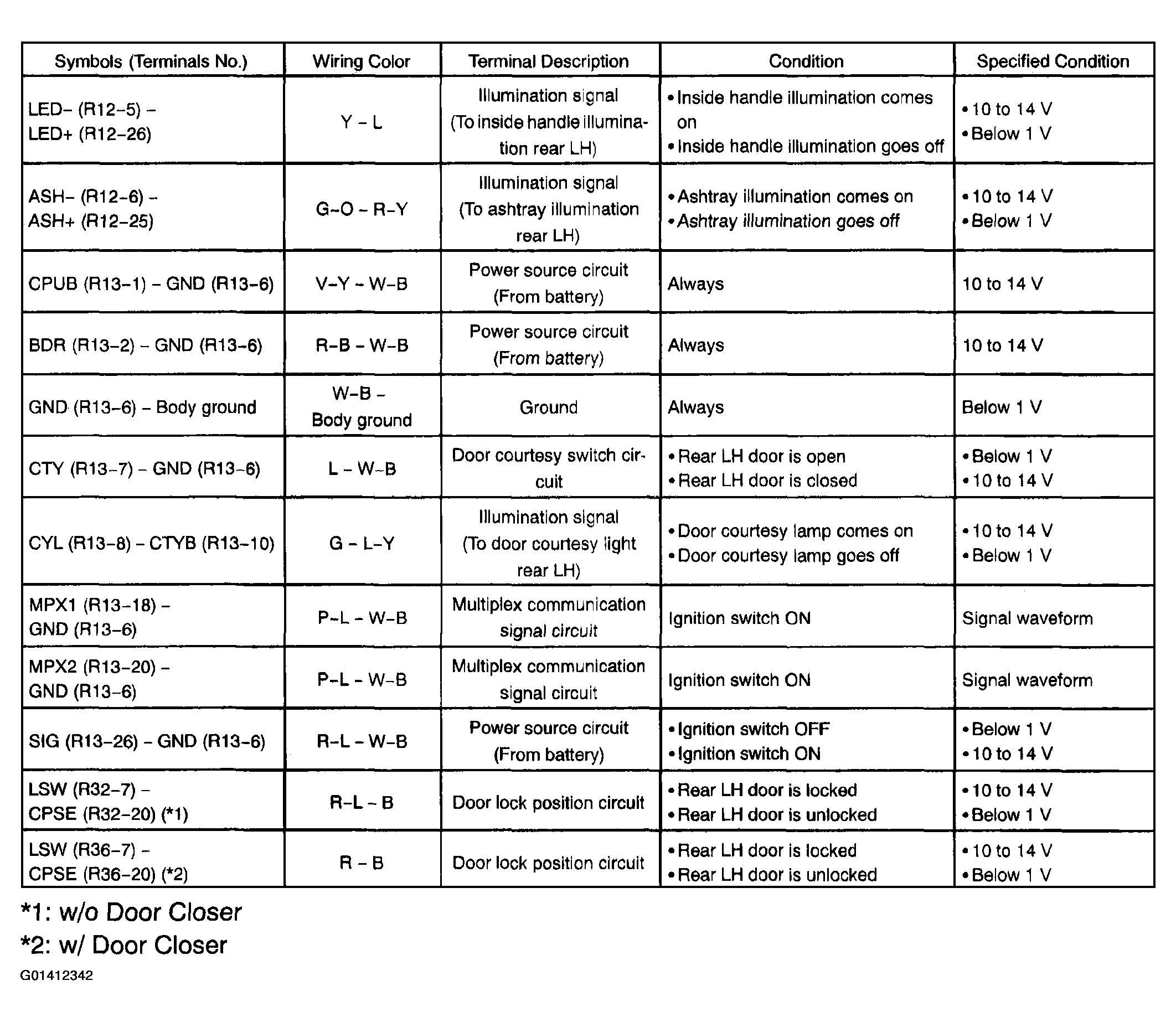

Fig 21: Reference Chart Rear Door LH ECU
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REAR DOOR RH ECU

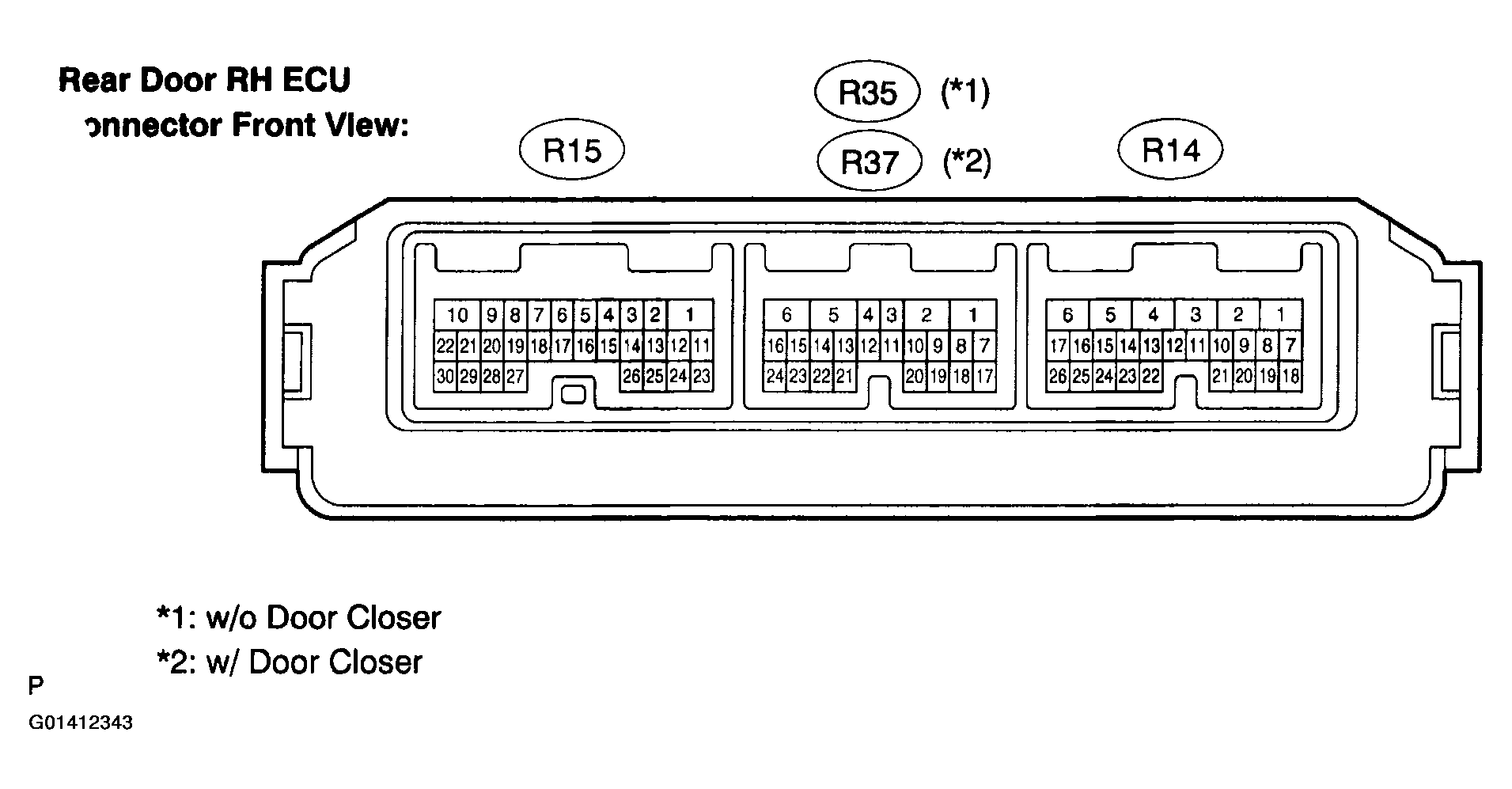

Fig 22: Identifying Connector Terminals Of Rear Door RH ECU
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

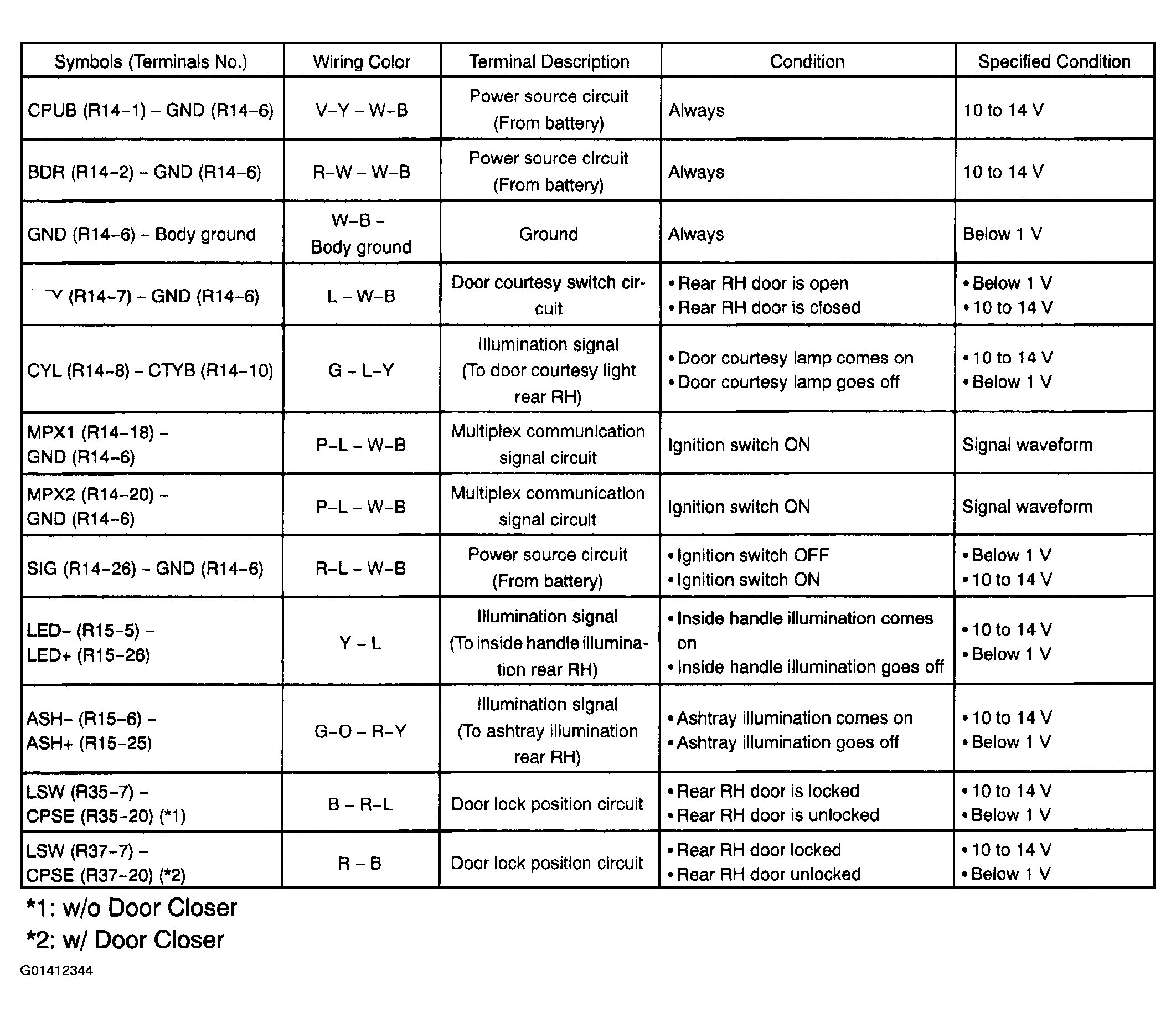

Fig 23: Reference Chart Rear Door RH ECU
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

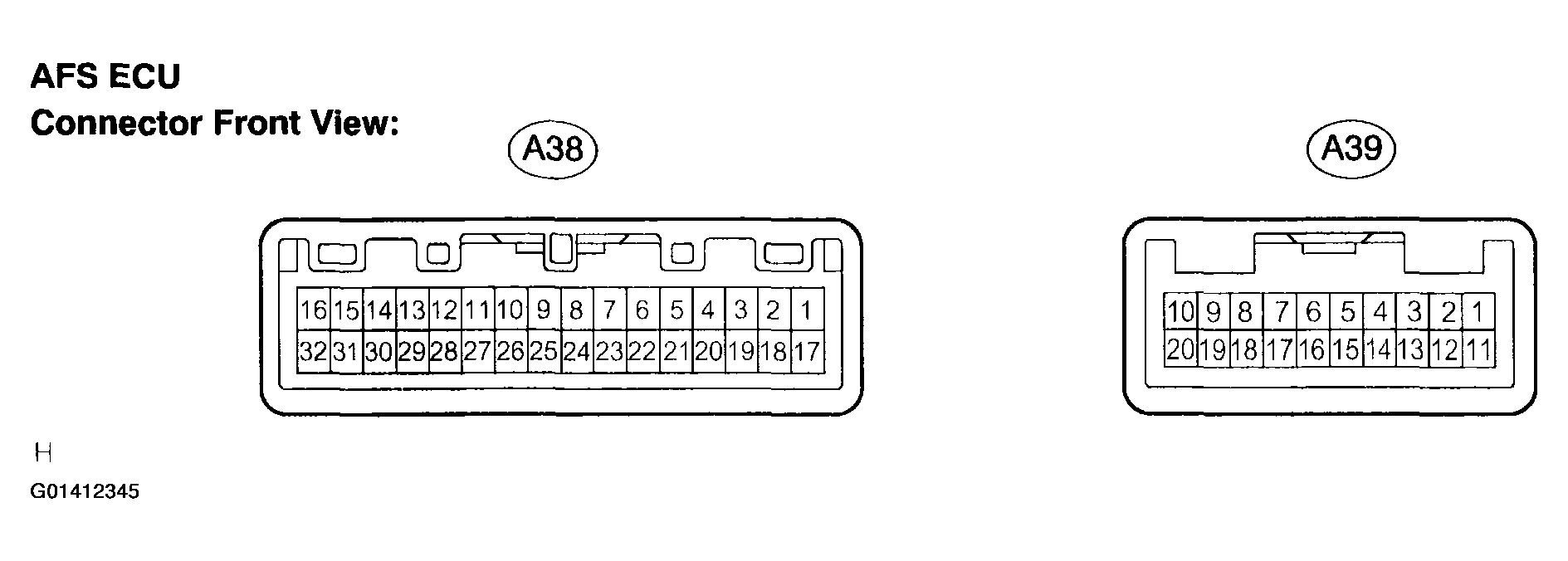

AFS ECU

Fig 24: Identifying Connector Terminals Of AFS ECU
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

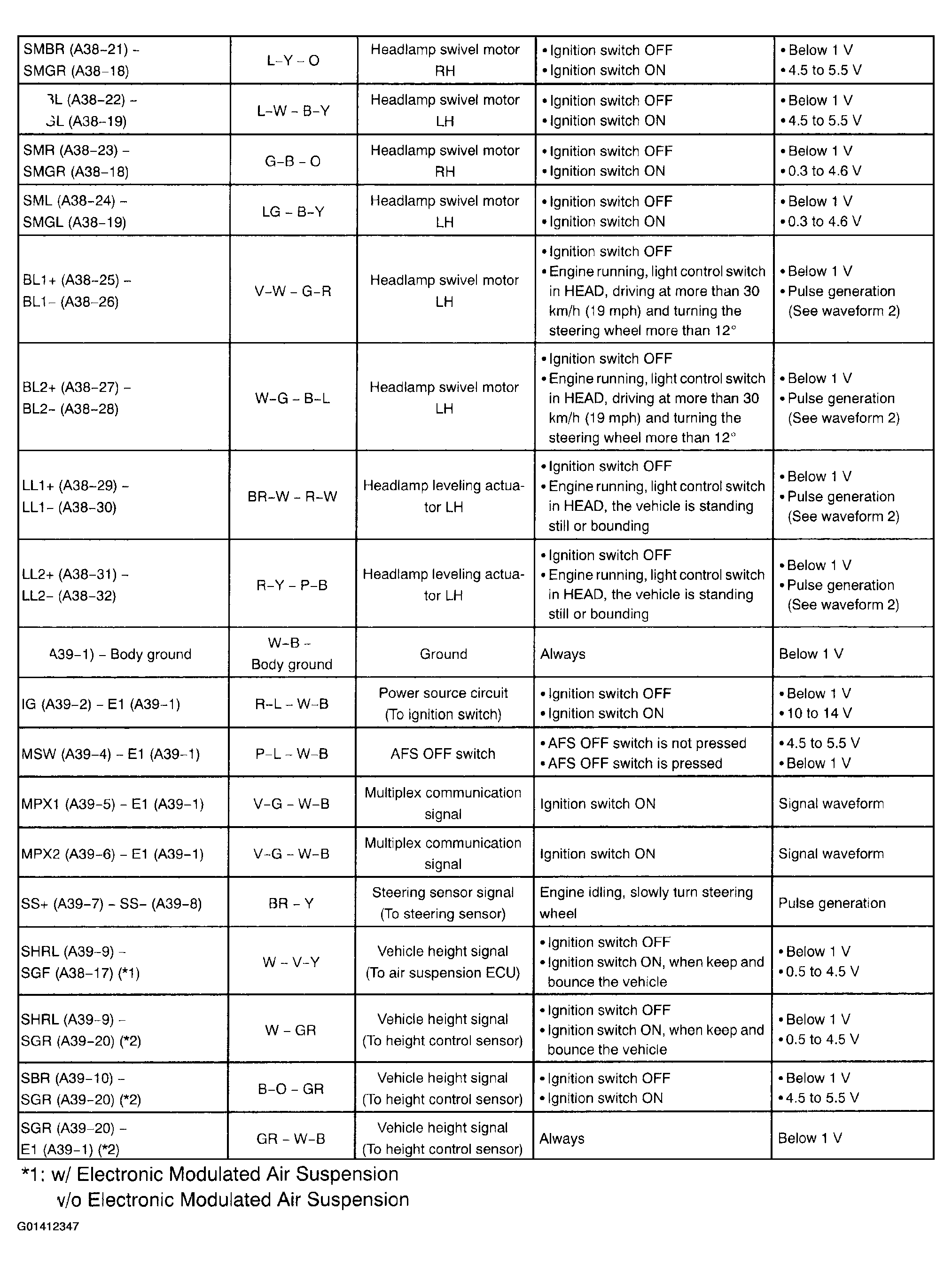

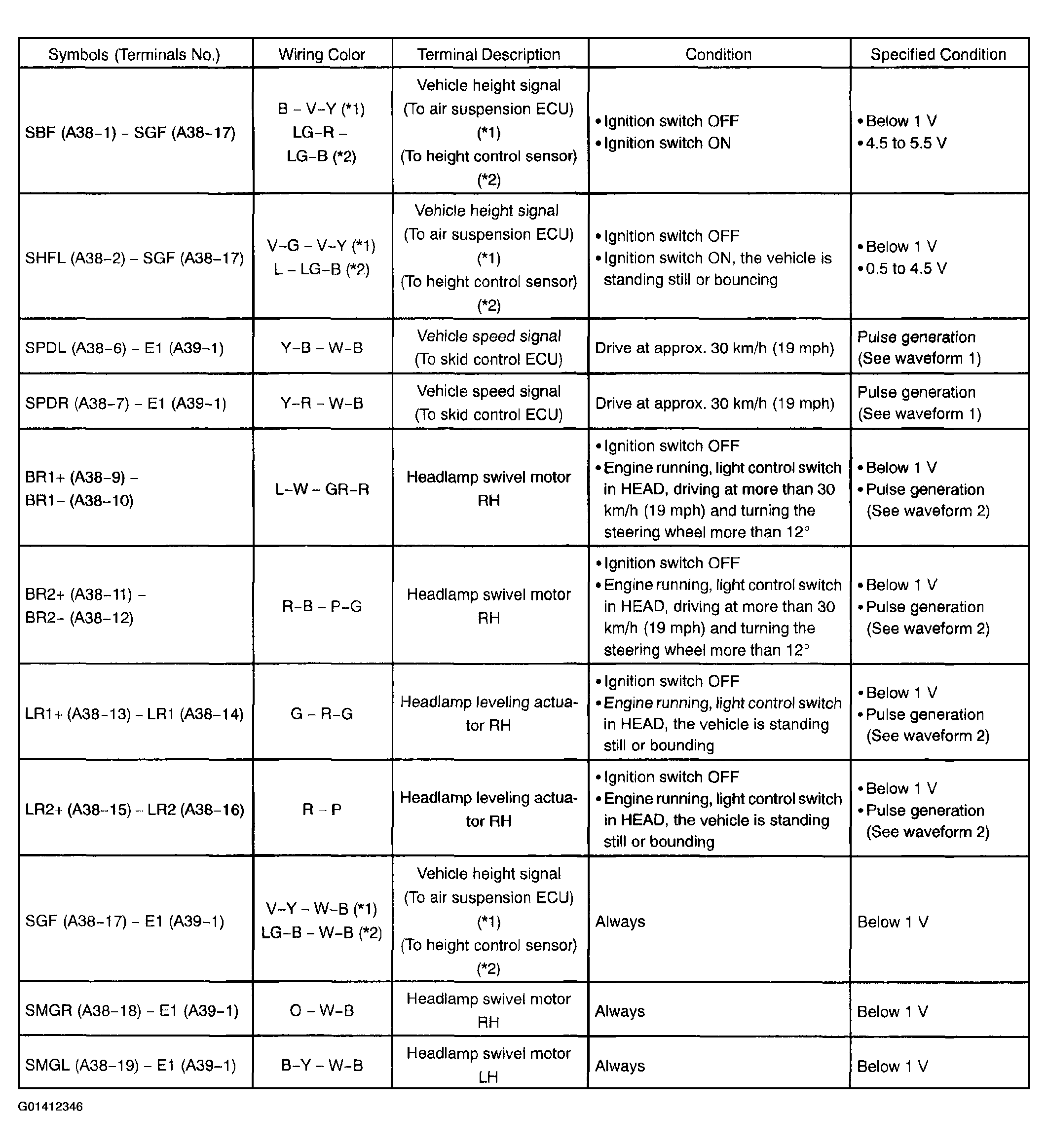

Fig 25: AFS ECU Reference Chart (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 26: AFS ECU Reference Chart (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

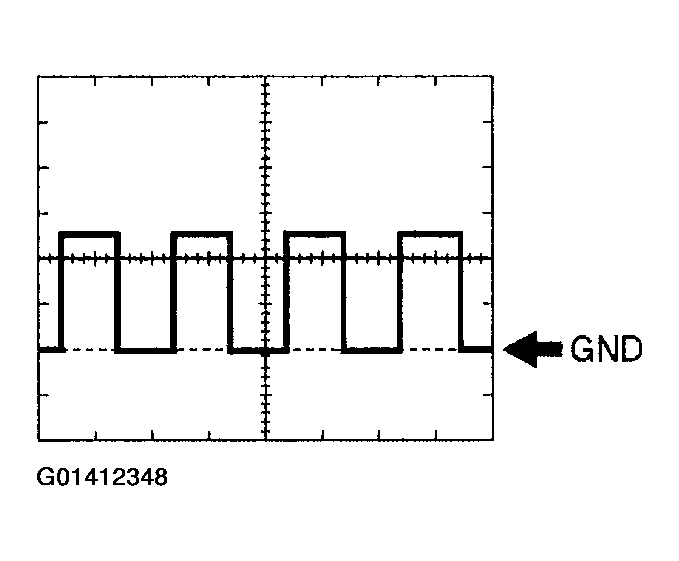

Waveform 1

HINT:
- Terminal: SPDL - GND, SPDR - GND
- Gauge set: 5 V / DIV. 2 ms / DIV
- Condition: Vehicle is driving at approximately 30 km/h (19 mph)

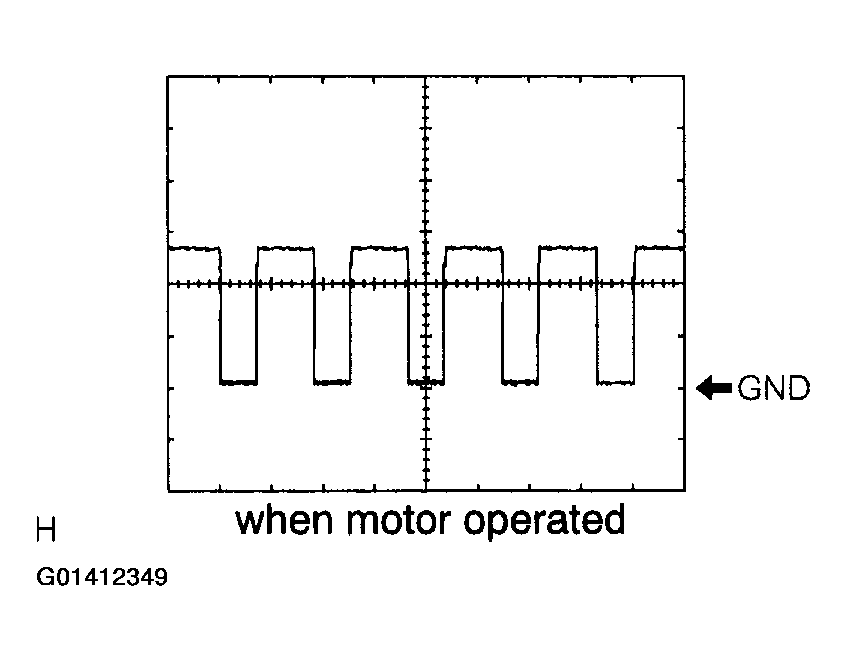

Fig 27: Waveform 1 (Terminal: SPDL - GND, SPDR - GND)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Waveform 2

HINT:
- Terminal: LR1 +. LR1 -. LR2+. LH2- - GND LL1+. LL1-. LL2+. LL2- - GND
- Gauge set: 5 V / DIV. 20 us / DIV
- Condition: The DRL system is on with engine running or the light control switch is in the HEAD position when the vehicle standing still or bouncing.
Fig 28: Waveform 2 (Terminal: LR1 +. LR1 -. LR2+. LH2- - GND LL1+. LL1-. LL2+. LL2- - GND)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the value is not within the standard range, it is possible there is some defect on the vehicle side. Inspect the fuse, wire harness and connector.
