Power Steering Vane Pump: Components

WARNING: This page is about a different car, the 2003 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

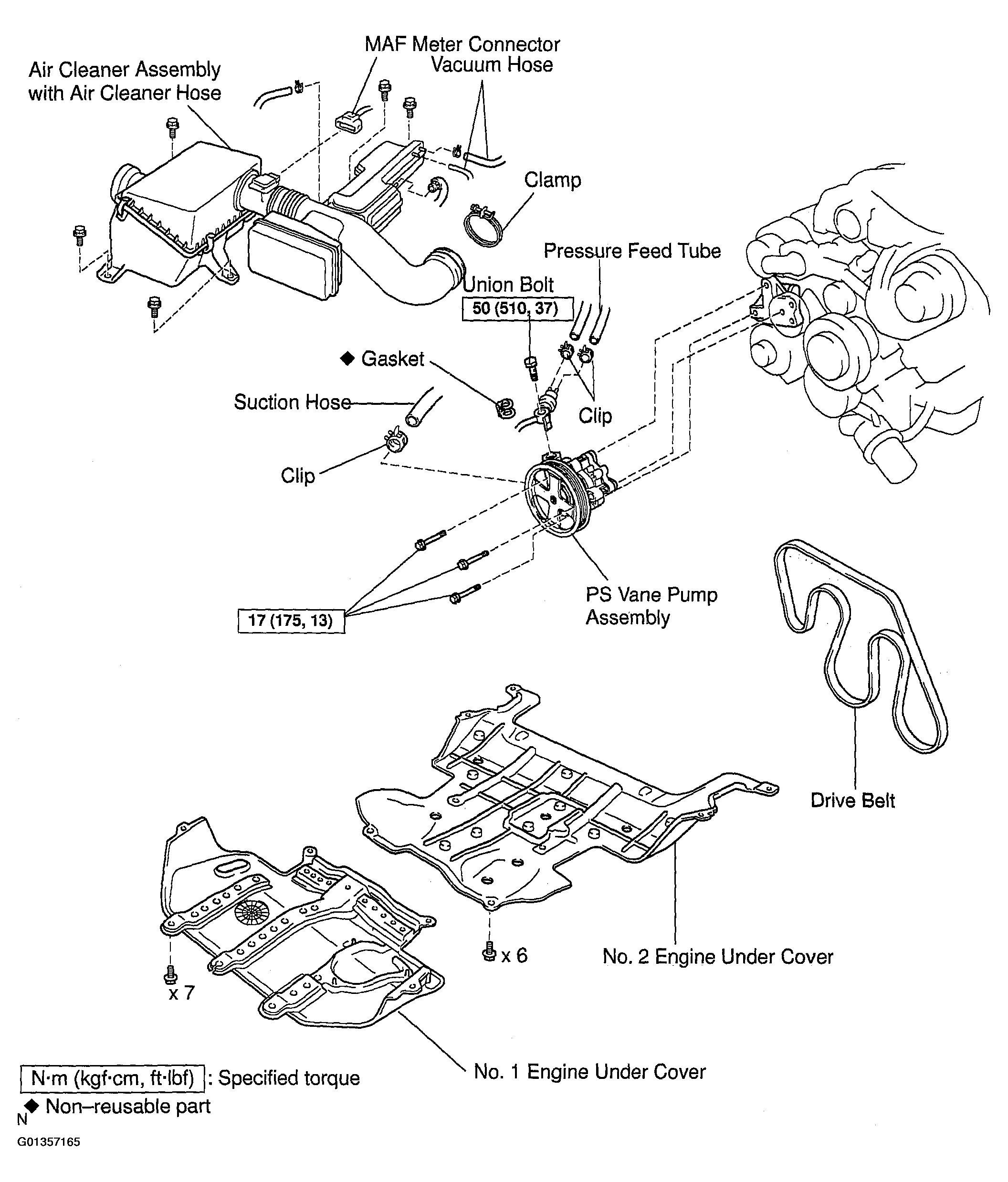

Fig 1: Exploded View Of Power Steering Vane Pump Components And Torque Specifications (1 Of 2)
G01357165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

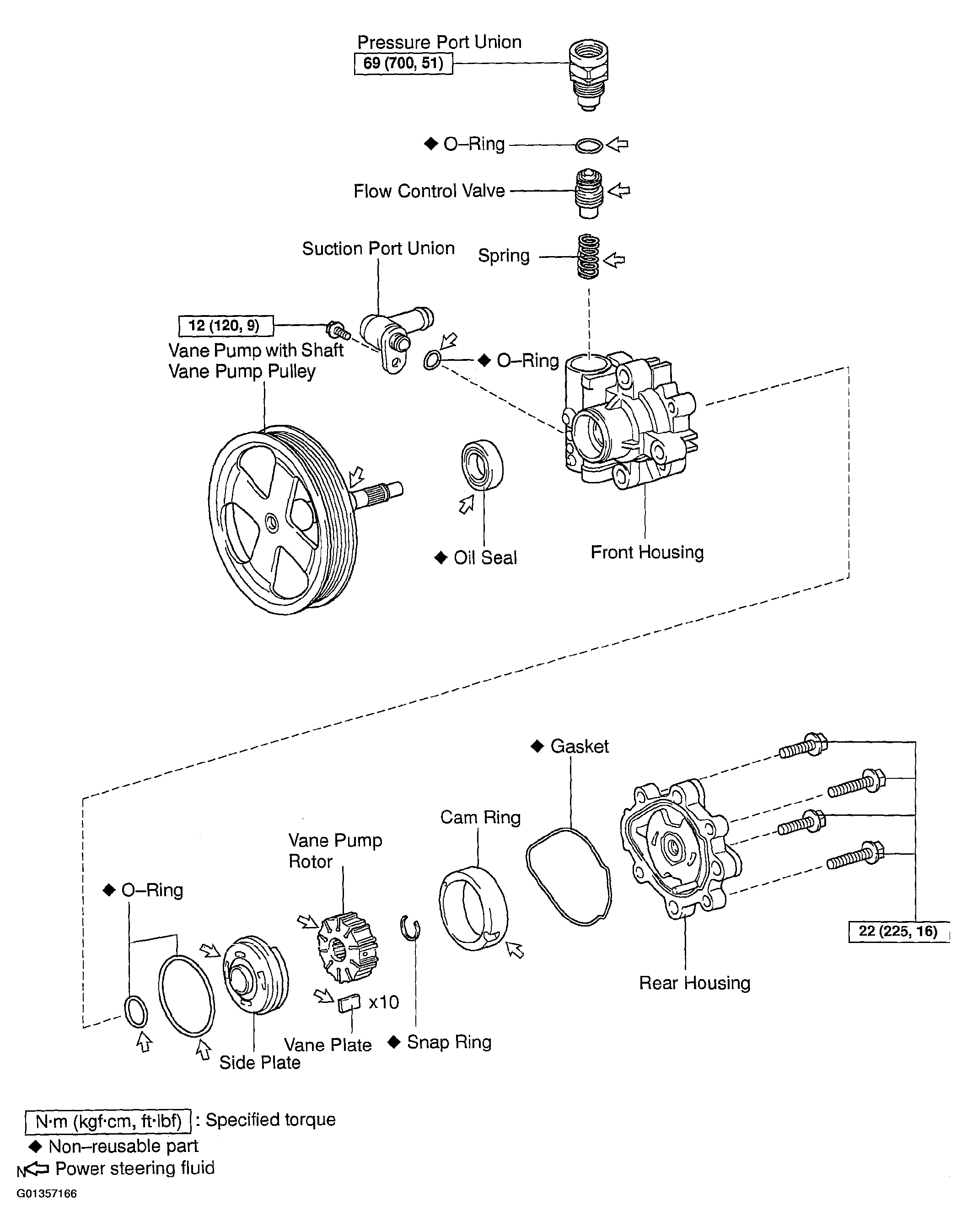

Fig 2: Exploded View Of Power Steering Vane Pump Components And Torque Specifications (2 Of 2)
G01357166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
