Idler Gear: Inspection

WARNING: This page is about a different car, the 2003 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT IDLER GEAR
Using a micrometer, measure the idler gear diameter.

Standard diameter:

38.48 - 38.50 mm (1.5149 -1.5157 in.)

Maximum diameter:

38.50 mm (1.5157 in.)

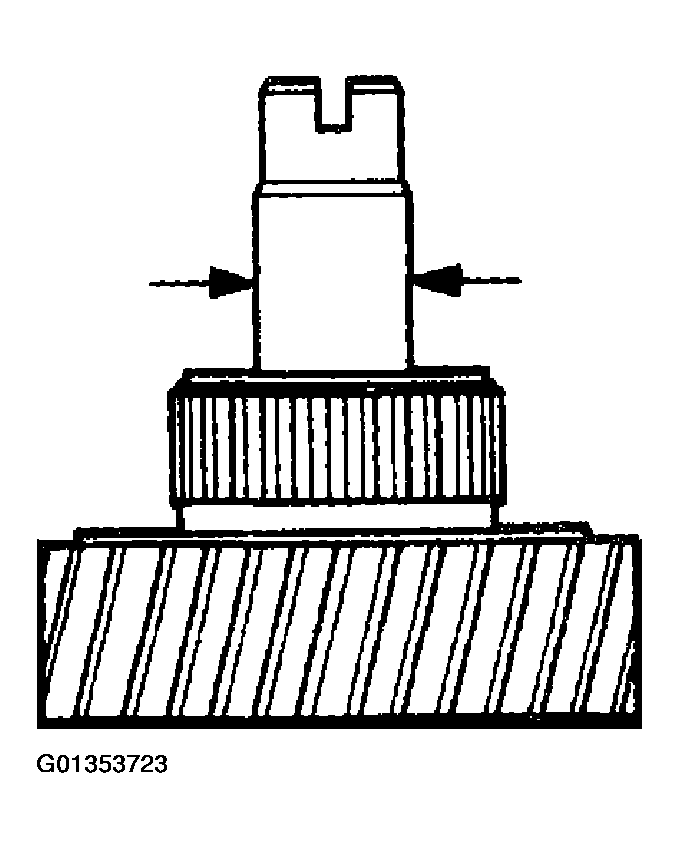

Fig 1: Measuring Idler Gear
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT IDLER LOW GEAR
Using a cylinder gauge, measure the idler low gear diameter.

Standard diameter:

45.52 - 45.54 mm (1.7922 - 1.7930 in.)

Maximum diameter:

45.54 mm (1.7930 in.)

Fig 2: Measuring Idler Low Gear Diameter Using Cylinder Gauge
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
