Real Oil Seal: Components

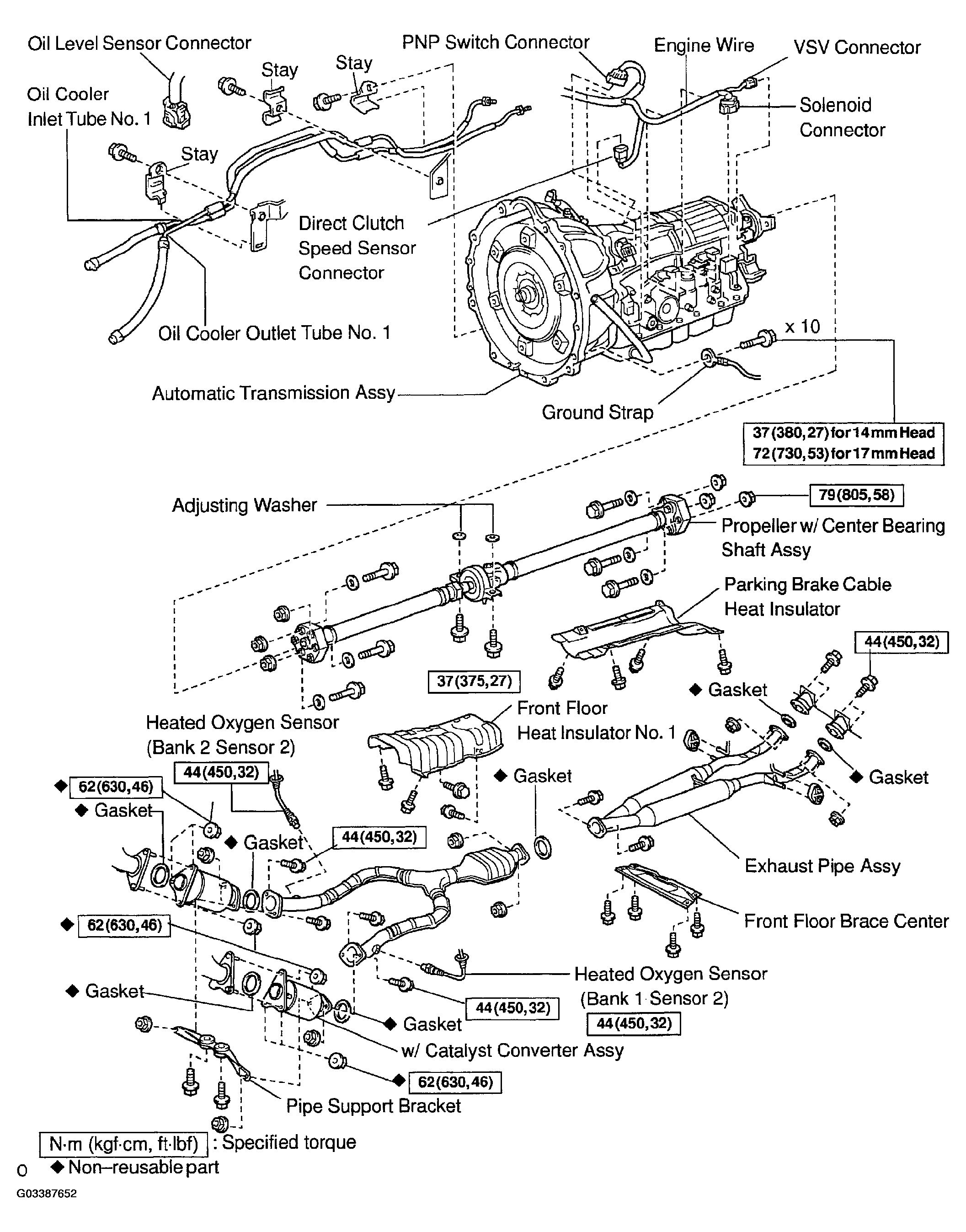

Fig 1: Exploded View Of Engine Rear Oil Seal And Related Components And Torque Specifications (1 Of 2)
G03387652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

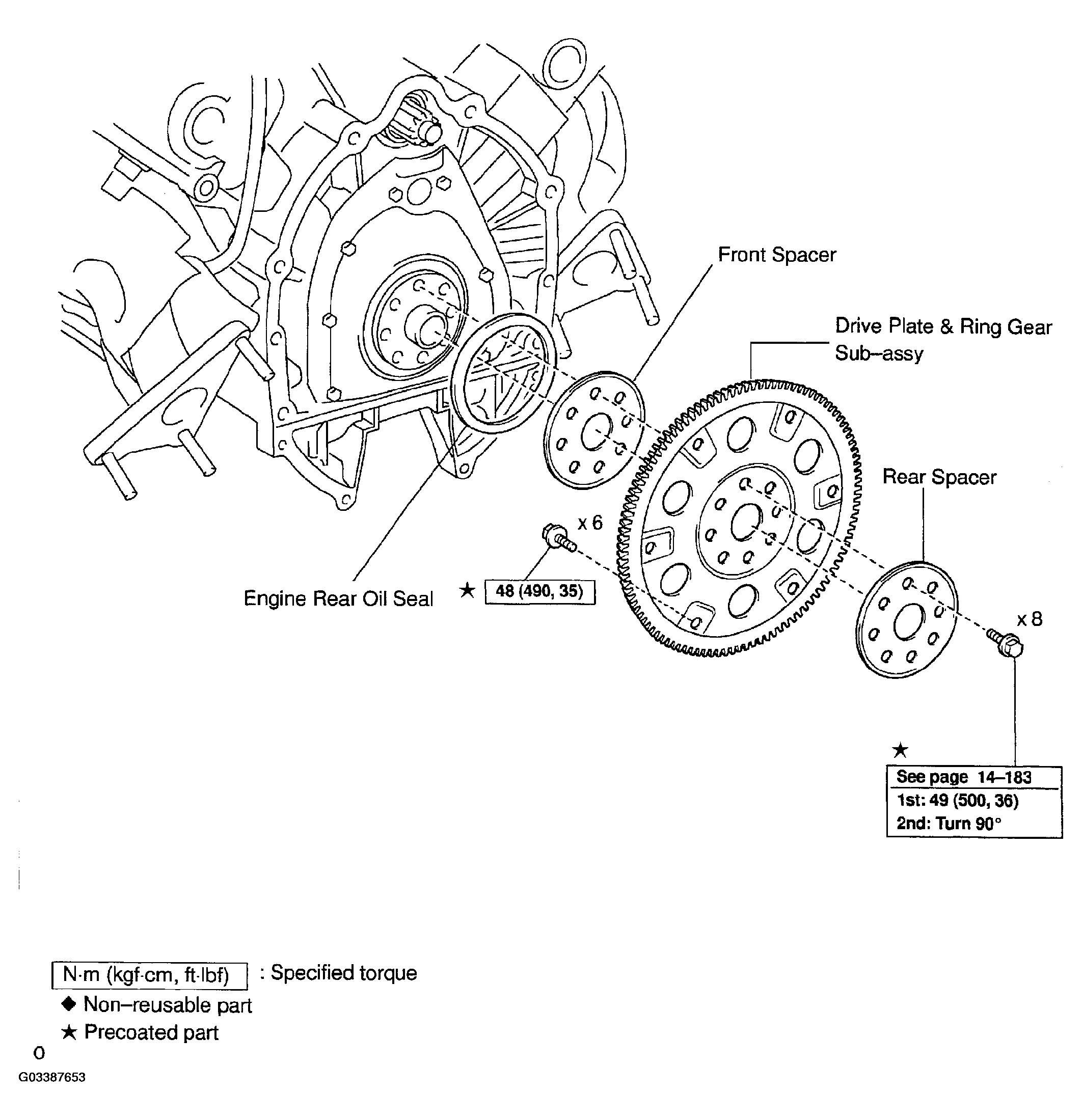

Fig 2: Exploded View Of Engine Rear Oil Seal And Related Components And Torque Specifications (2 Of 2)
G03387653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
