Oil Pump Seal: Replacement

REMOVE TIMING BELT, see TIMING BELT REPLACEMENT .
REMOVE CRANKSHAFT TIMING PULLEY
1. Using SST, remove the crankshaft timing pulley.
  SST 09950-50012 (09951-05010, 09952-05010, 09953-05010, 09953-05020, 09954-05010)

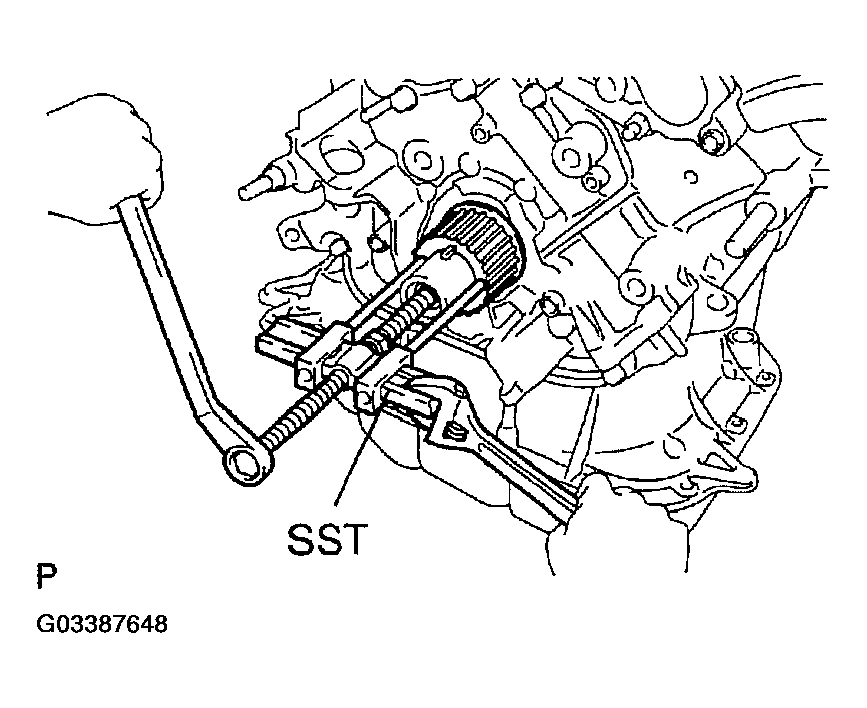

  Fig 1: Removing Crankshaft Timing Pulley
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE: Do not turn the timing pulley.
REMOVE OIL PUMP SEAL
1. Using a knife, cut off the oil seal lip.
2. Using a screwdriver with taping its tip, pry out the oil seal.
3. After the removal, check if the crankshaft is not damaged. If it is damaged, mend it with a sandpaper (#400).

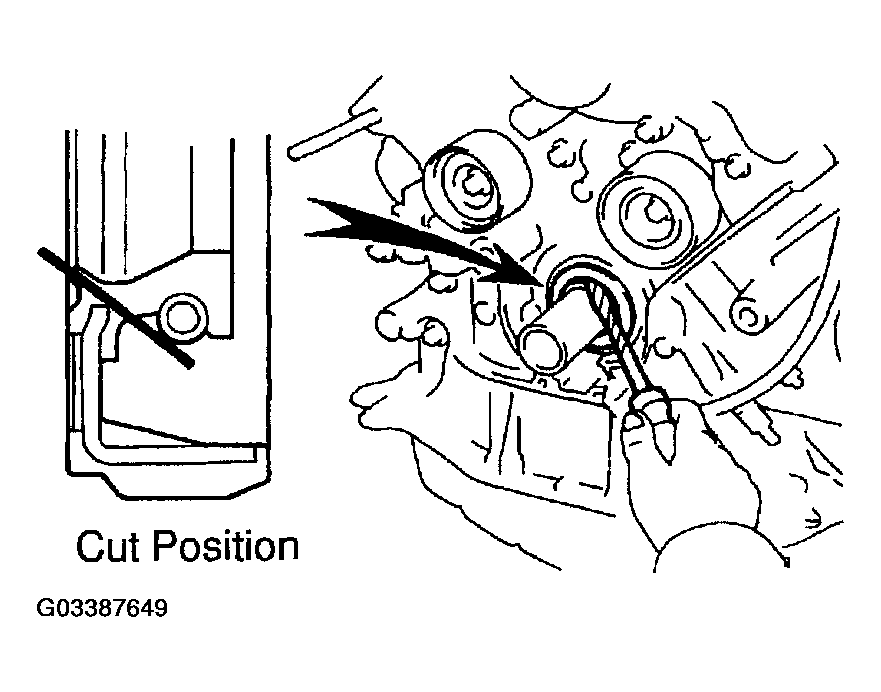

Fig 2: Removing Oil Pump Seal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL OIL PUMP SEAL
1. Apply MP grease to a new oil seal lip.
  NOTE: Keep the lip off foreign materials.
2. Using SST and a hammer, tap in the oil seal until its surface is flush with the oil pump edge.
  SST 09316-60011 (09316-00011)

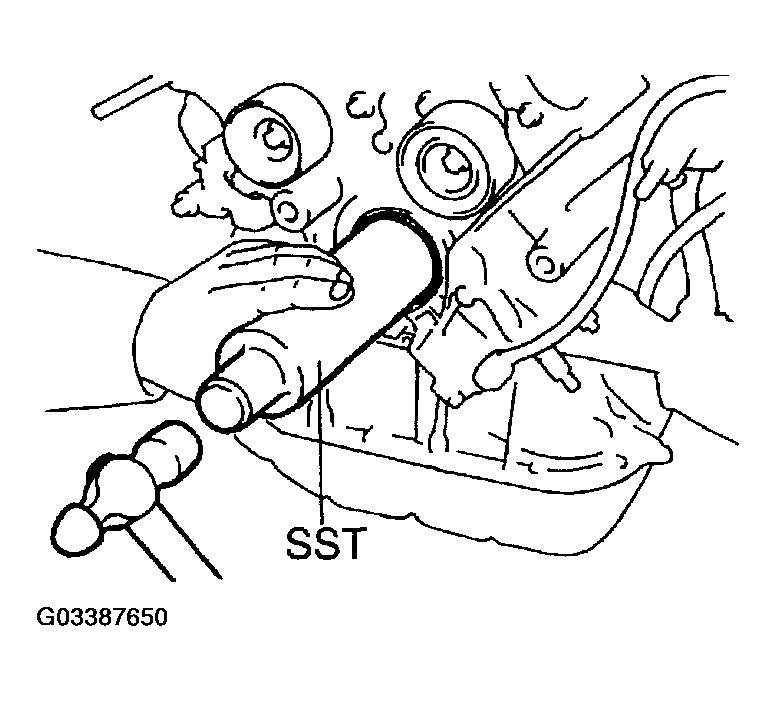

  Fig 3: Installing Oil Pump Seal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE:
- Wipe off extra grease on the crankshaft.
- Be careful not to tap the oil seal slantingly.
INSTALL CRANKSHAFT TIMING PULLEY
1. Align the timing pulley set key with the key groove of the pulley.
2. Using SST and a hammer, tap in the timing pulley, facing the flange side inward.
  SST 09223-46011
INSTALL TIMING BELT, see TIMING BELT REPLACEMENT .

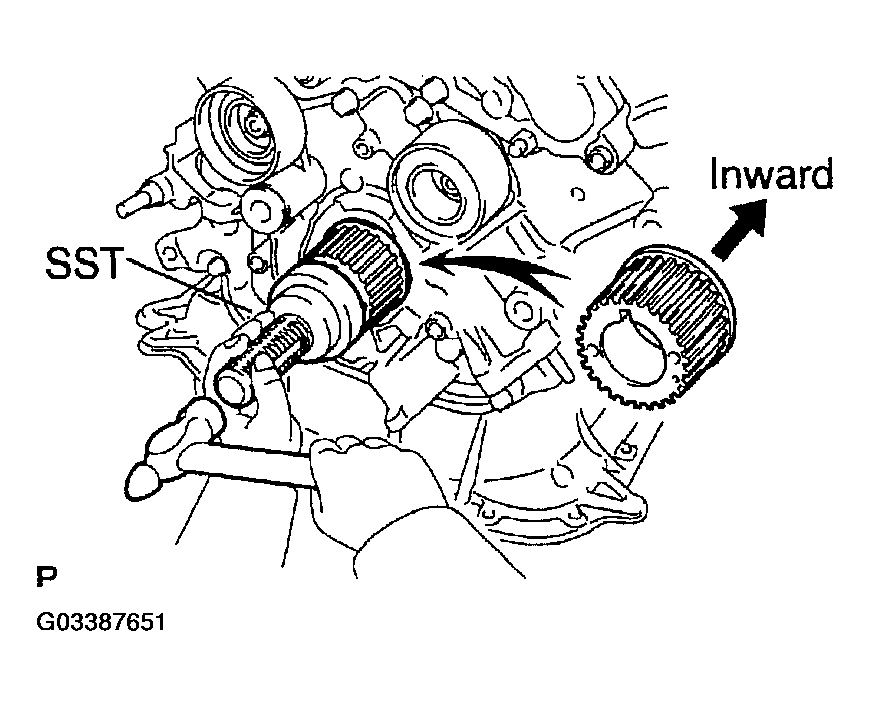

Fig 4: Installing Crankshaft Timing Pulley
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
