Oil Pump Seal: Components

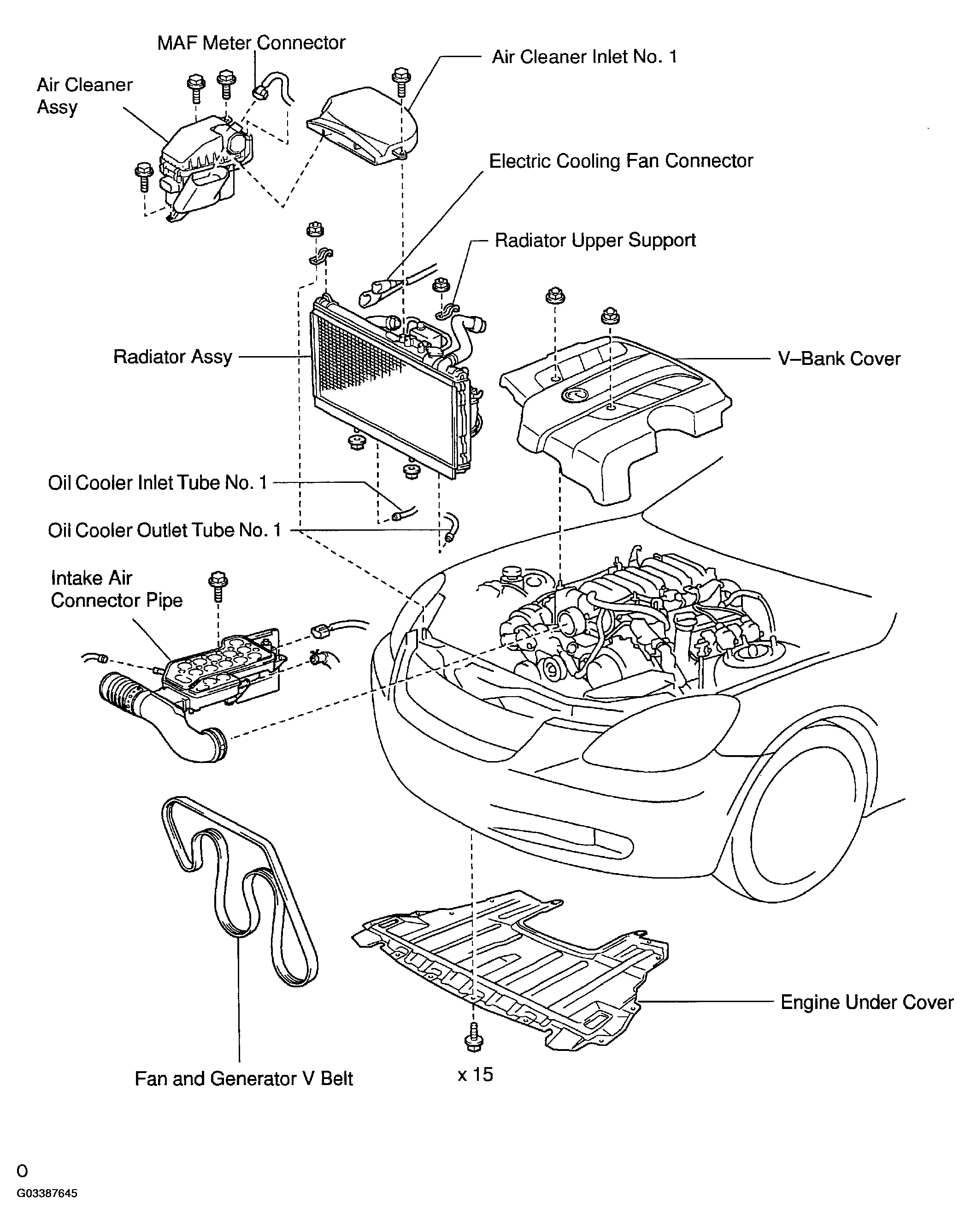

Fig 1: Identifying Components To Remove For Oil Pump Seal Replacement (1 Of 2)
G03387645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

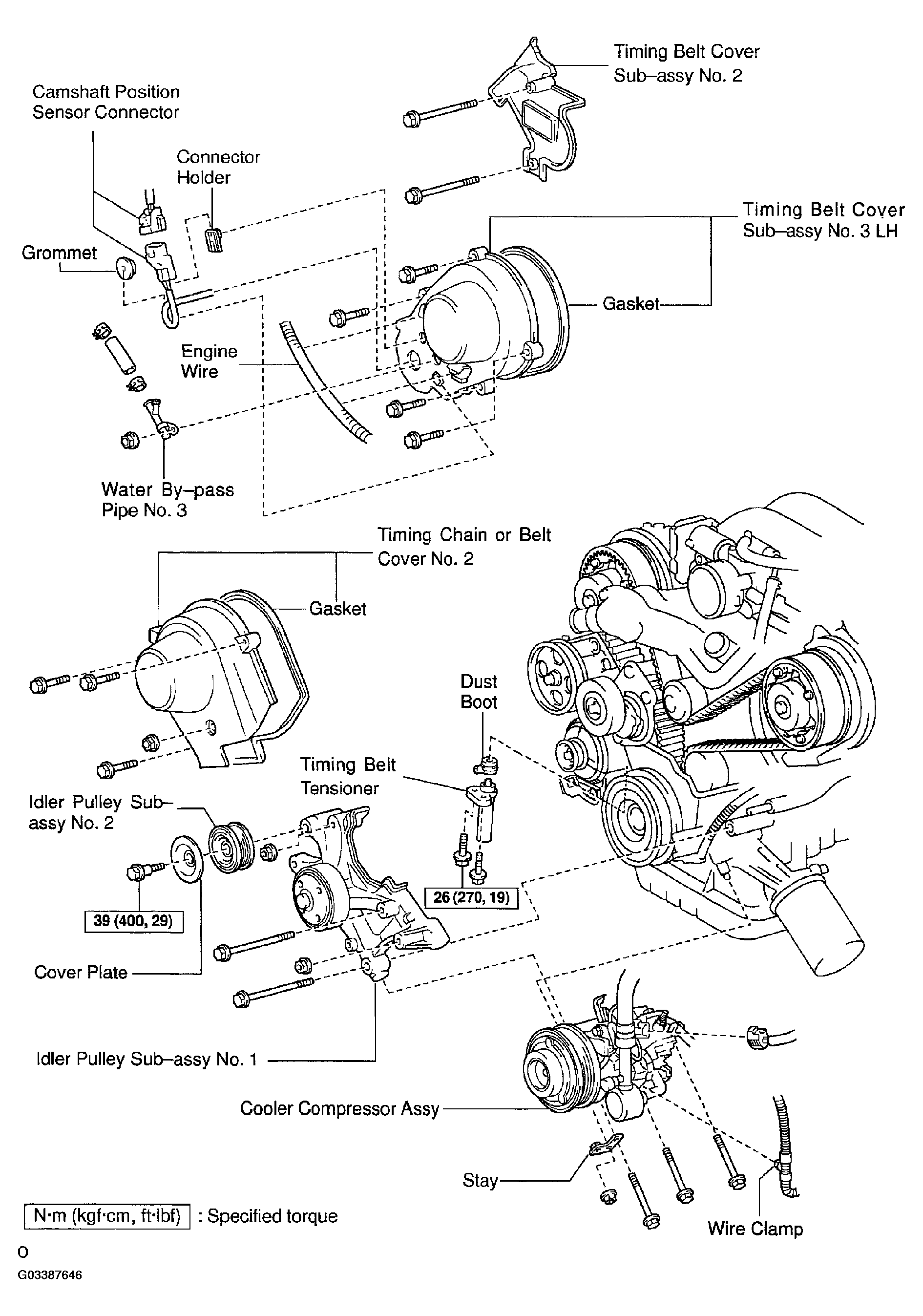

Fig 2: Identifying Components To Remove For Oil Pump Seal Replacement (2 Of 2)
G03387646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

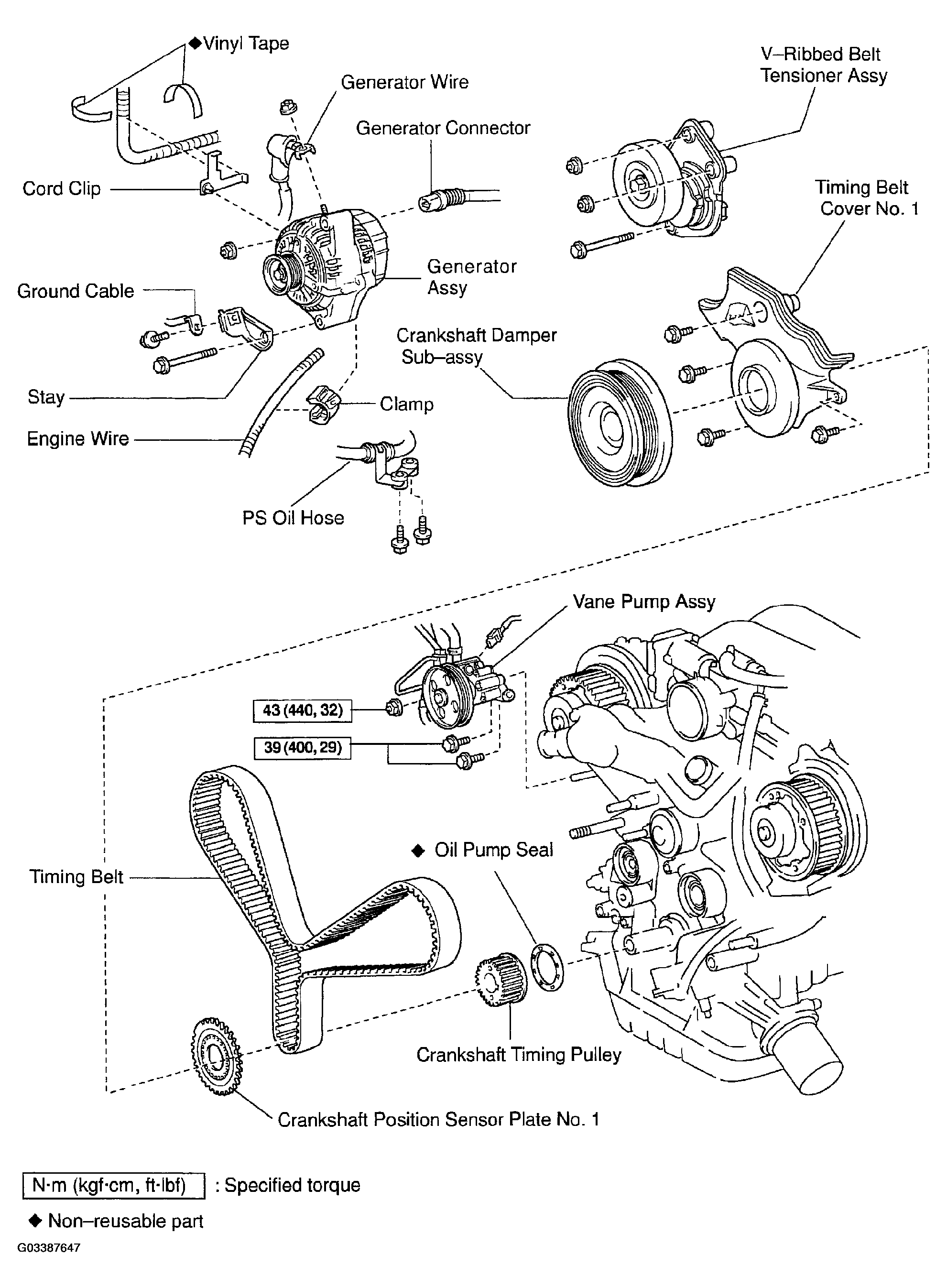

Fig 3: Removing Oil Pump Seal
G03387647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
