Radiator ASSY: Components

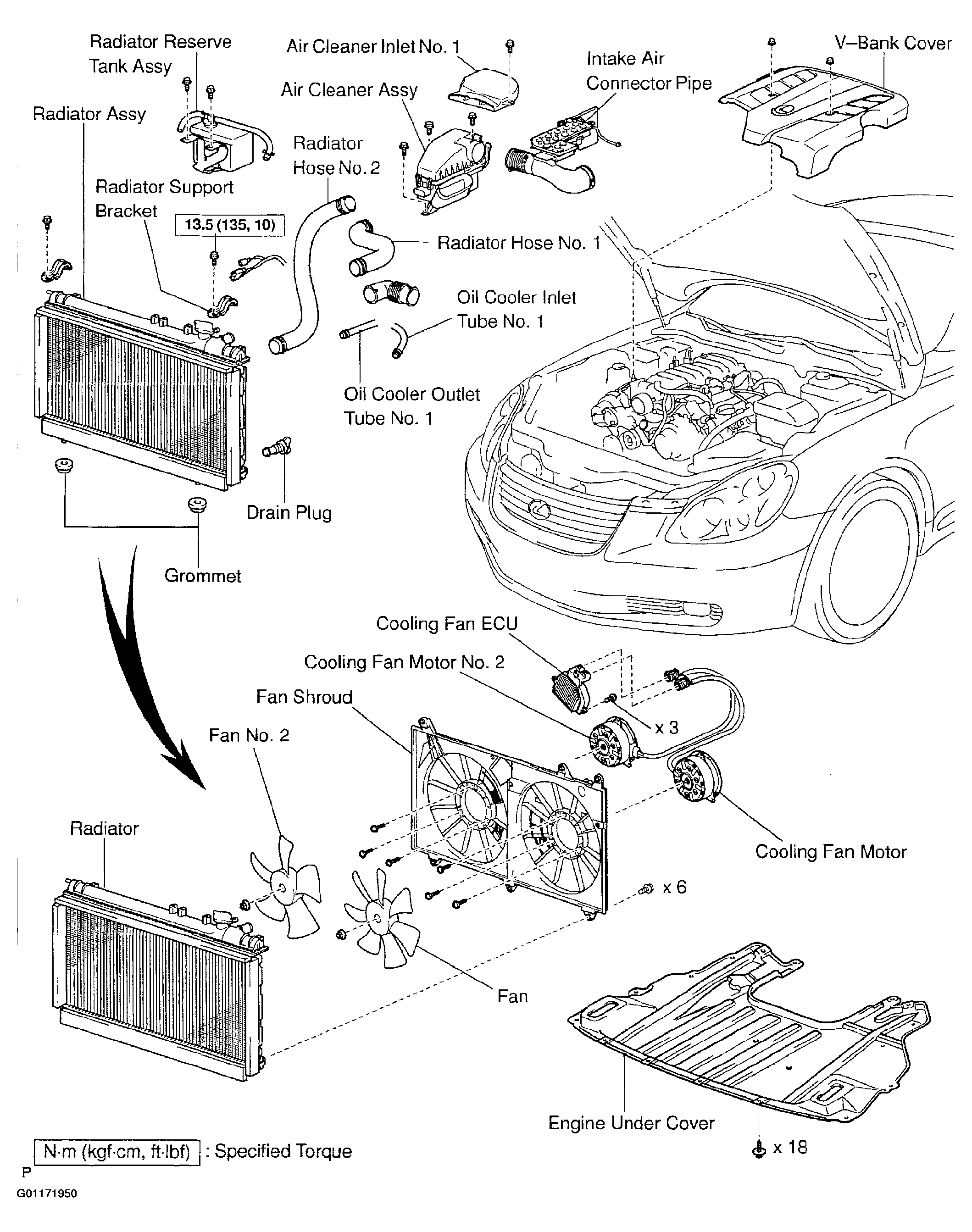

Fig 1: Exploded View Of Radiator Assembly Components

G01171950

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
