Compass Does Not Function: Wiring Diagram

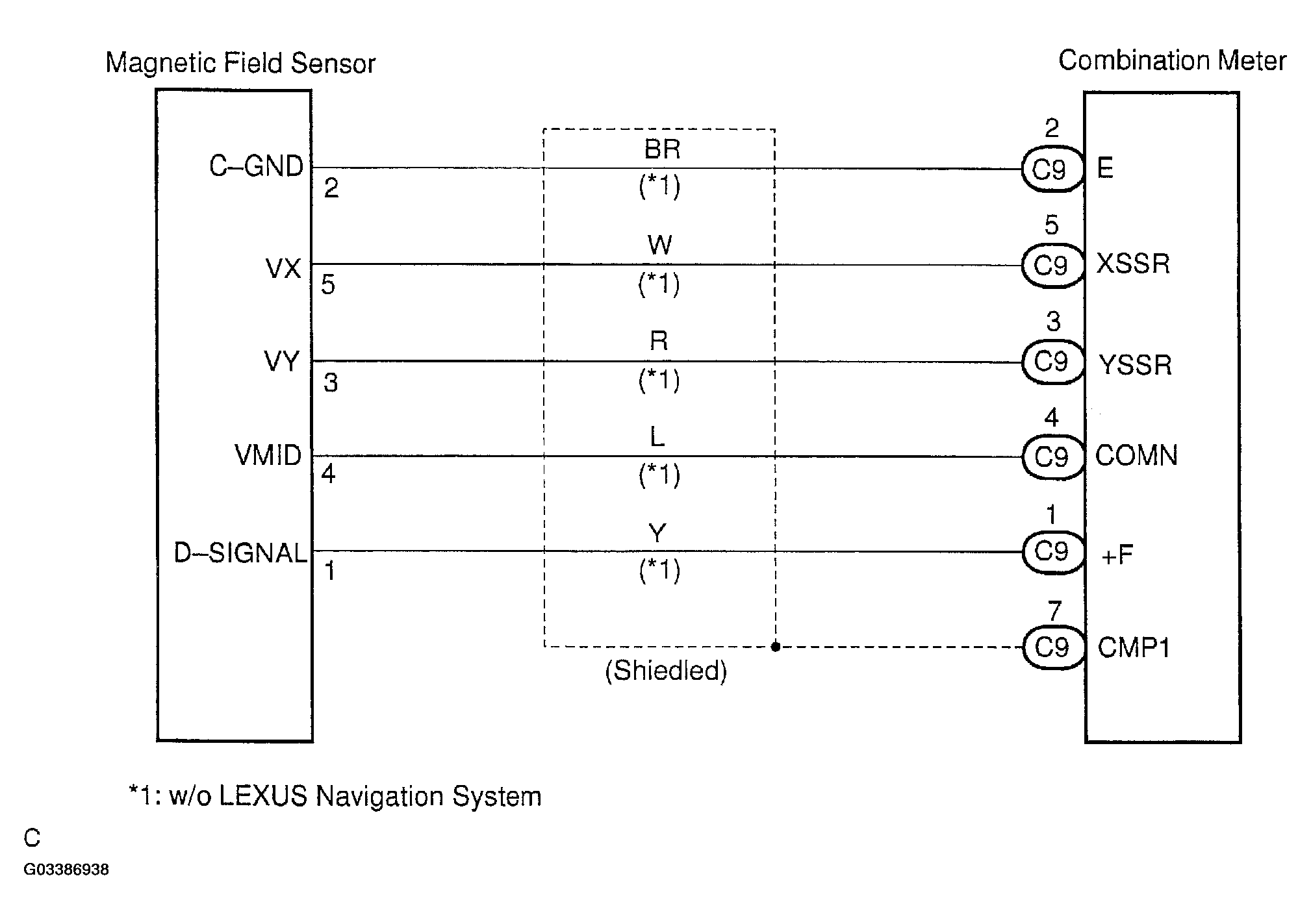

Fig 1: Compass Does Not Function Wiring Diagram

G03386938

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
