Rear Seat: Components

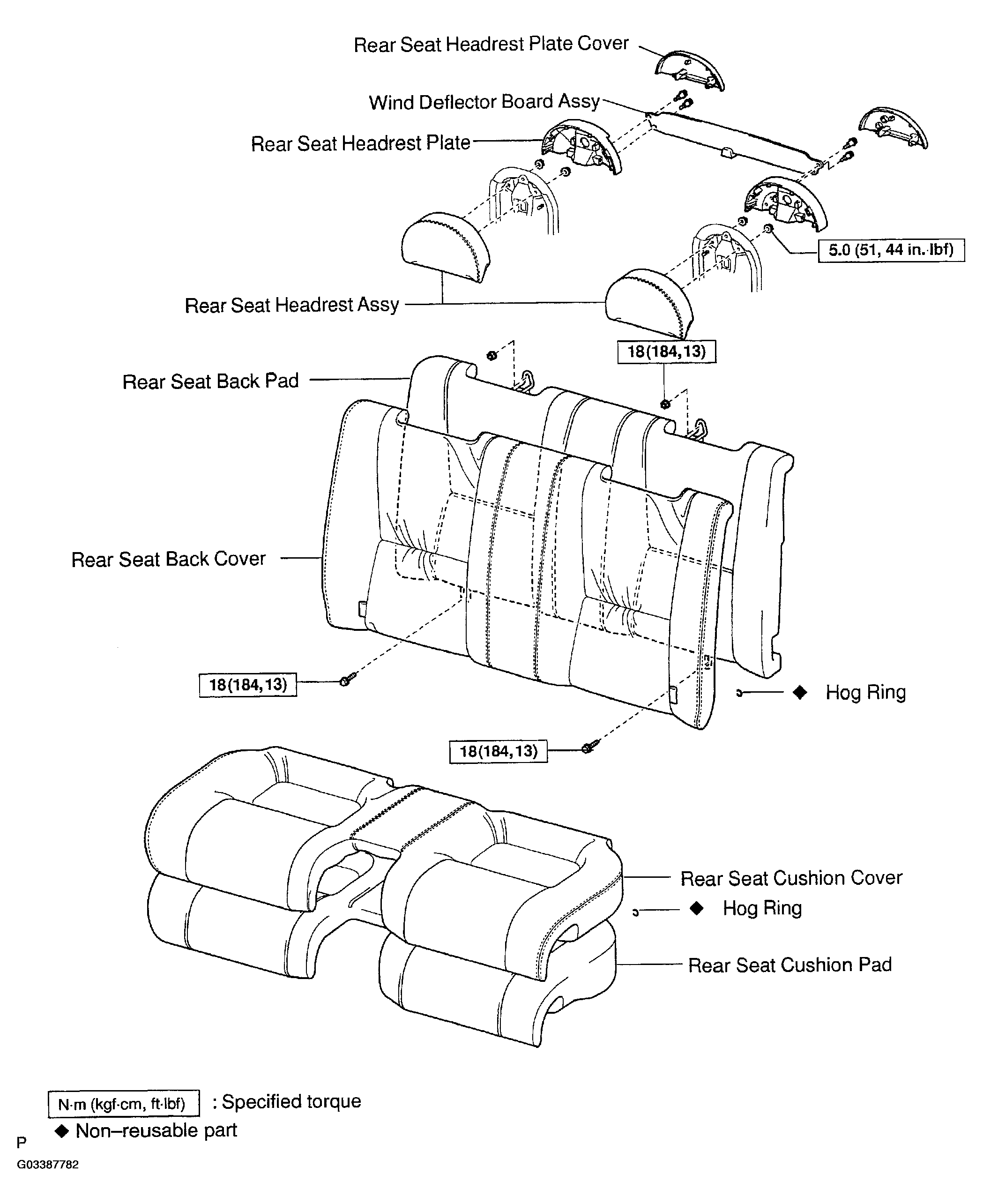

Fig 1: Exploded View Of Rear Seat Assembly

G03387782

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
