Power Mirror Control System - Diagnosis: Location

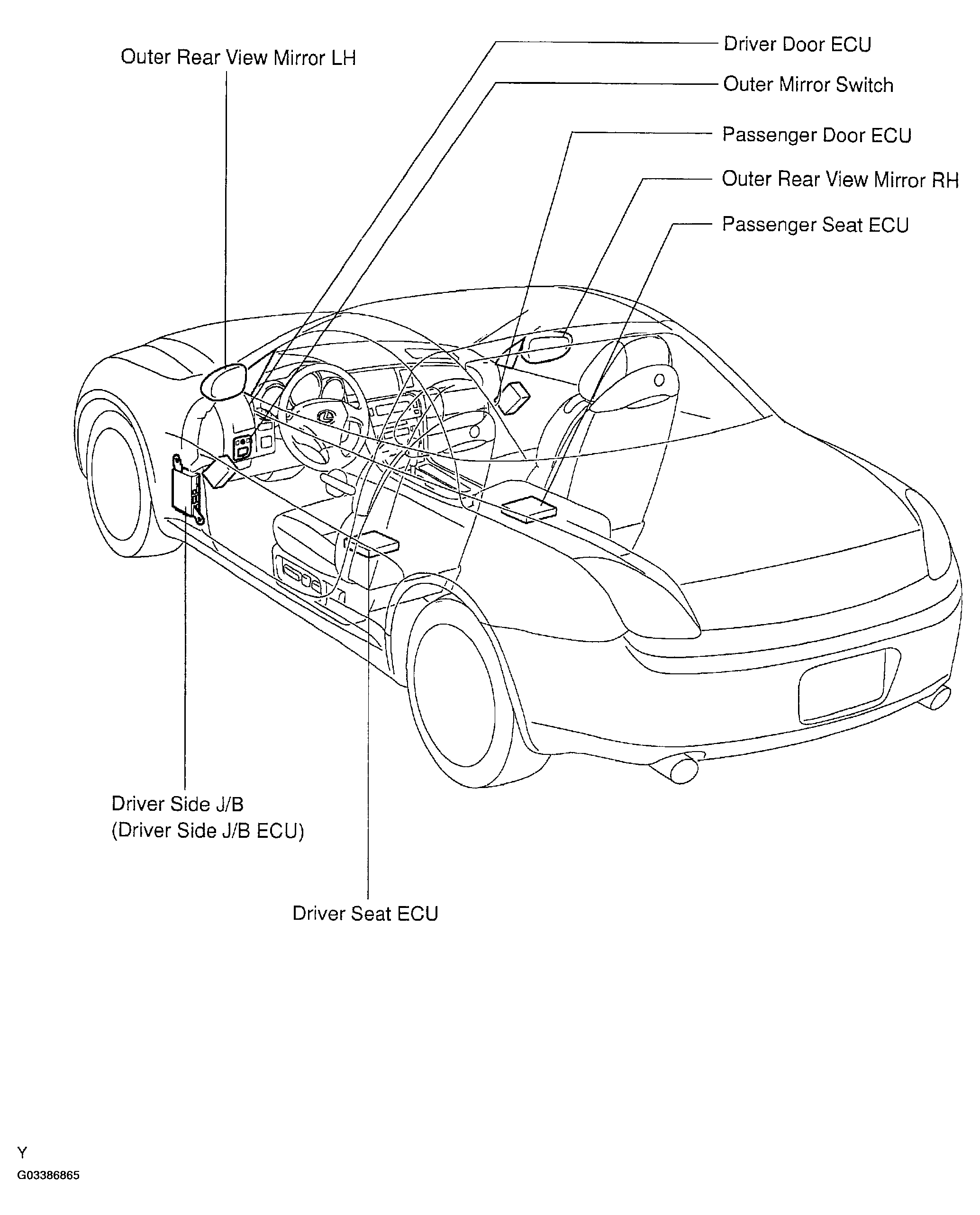

Fig 1: Identifying Power Mirror Control System Components

G03386865

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
