Sliding Roof / Removable Roof Panel Sub-ASSY: Components

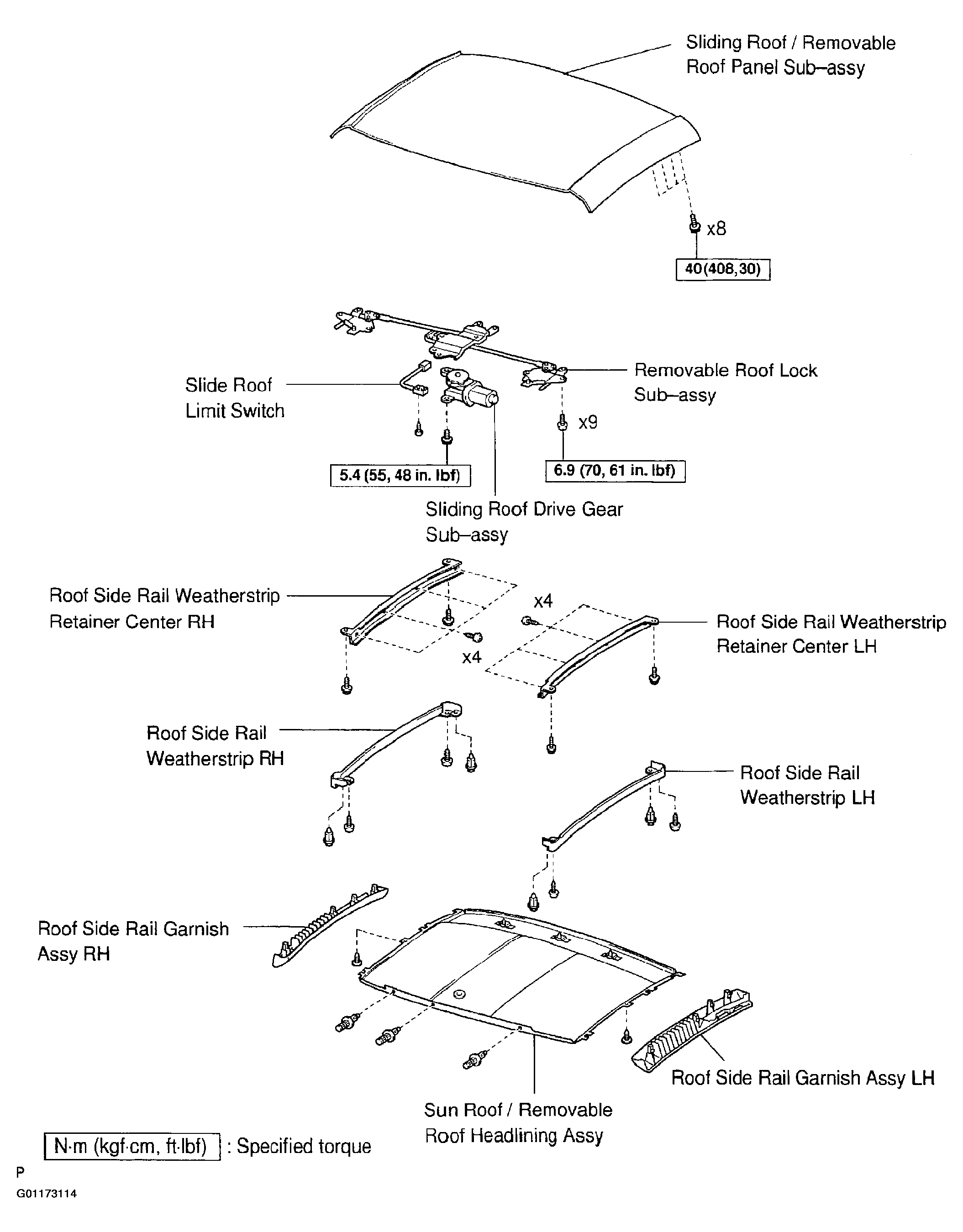

Fig 1: Sliding Roof / Removable Roof Panel Sub-Assembly Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
