Package Tray Trim ASSY: Components

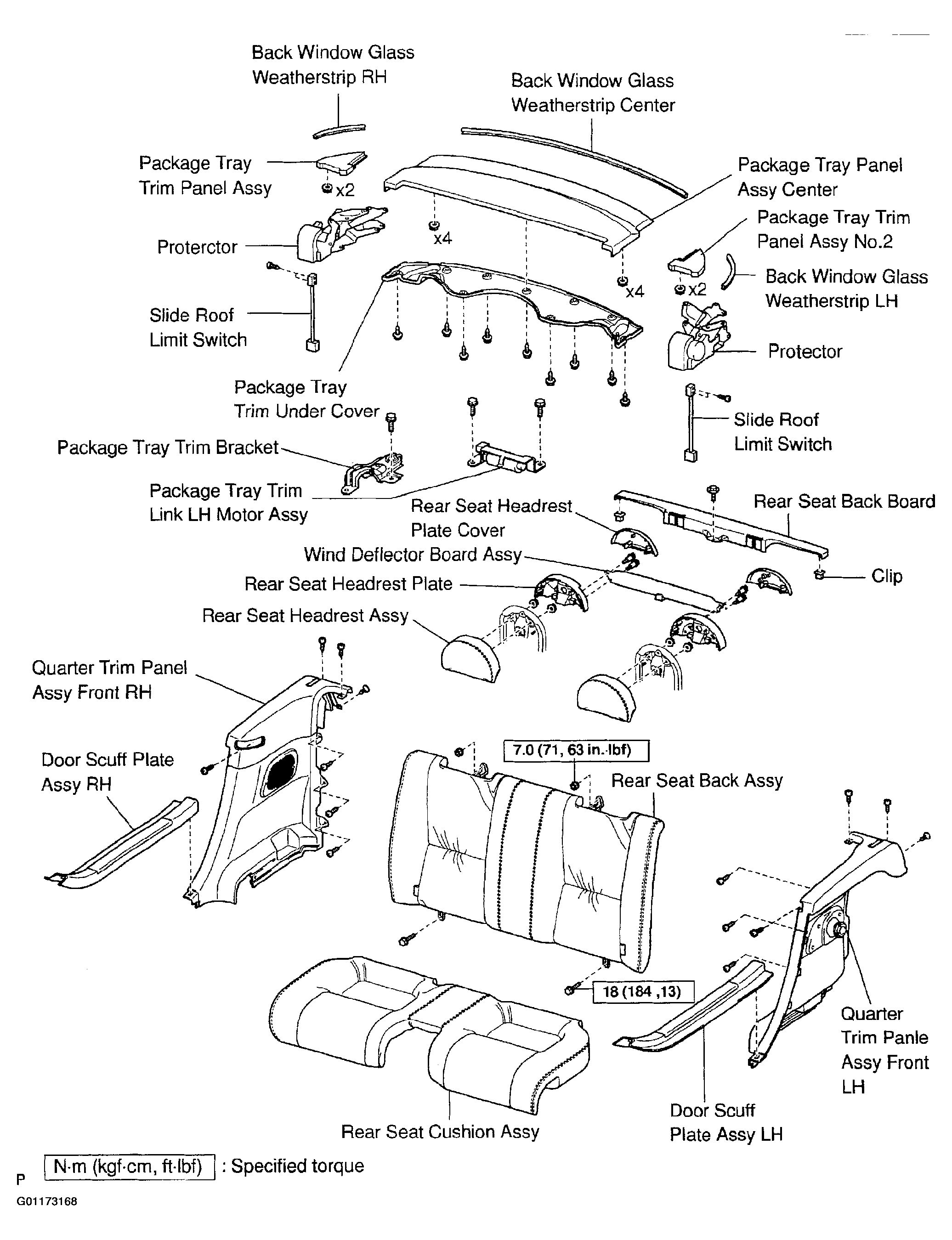

Fig 1: Identifying Components Of Package Tray Trim Assembly

G01173168

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
