Rear Bumper Cover: Replacement

NOTE: Installation is in the reverse order of removal. But, the installation is indicated only when it has a point.
  1. REMOVE TONNEAU COVER STOPPER SUB-ASSY LH
    1. Remove the 2 caps, 2 bolts and sliding roof guide rail stopper (rubber part).
    2. Using a torx wrench (T40) Remove the sliding roof guide rail stopper (bolt) and tonneau cover stopper.
    3. Disconnect the connector.
  2. REMOVE TONNEAU COVER STOPPER SUB-ASSY RH
    1. Remove the 2 caps, 2 bolts, stopper and tonneau cover stopper.
  3. REMOVE REAR FLOOR FINISH PLATE

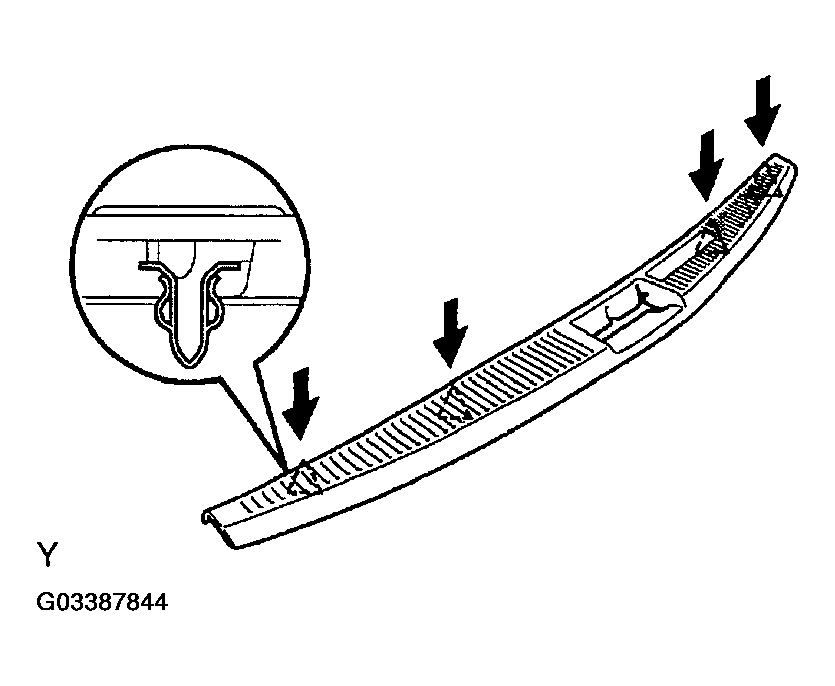

    Fig 1: Removing Rear Floor Finish Plate
    G03387844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE LUGGAGE COMPARTMENT FLOOR MAT
  5. REMOVE LUGGAGE COMPARTMENT TRIM COVER LH
    1. Remove the 3 clips and luggage compartment trim cover LH.
  6. REMOVE LUGGAGE COMPARTMENT TRIM COVER RH
  7. REMOVE SPARE WHEEL COVER ASSY
  8. REMOVE TOOL BOX COVER
    1. Remove the 4 nuts and tool box cover.
  9. REMOVE LUGGAGE COMPARTMENT TRIM COVER SUB-ASSY REAR
    1. Remove the 2 bolts, 2 strikers, 5 clips and luggage compartment trim rear cover.
  10. REMOVE TONNEAU COVER ASSY
    1. Remove the 2 caps, 2 nuts and tonneau cover.
  11. REMOVE LUGGAGE COMPARTMENT TRIM COVER INNER LOWER
    1. Remove the 2 bolts, 2 strikers, 6 clips and luggage compartment trim inner lower cover.
  12. REMOVE LUGGAGE COMPARTMENT TRIM COVER FRONT
    1. Remove the 6 clips and luggage compartment trim front cover.
  13. REMOVE LUGGAGE COMPARTMENT TRIM COVER SIDE LH
    1. Remove the 4 clips and luggage compartment trim side cover LH.
  14. REMOVE LUGGAGE COMPARTMENT TRIM COVER SIDE RH
  15. REMOVE REAR BUMPER COVER
    1. Remove the 4 clips.
    2. Remove the 2 screws and 6 nuts.
    3. Remove the hook and rear bumper cover.
    4. Remove the license plate lamp bulb.
    5. Disconnect the back up lamp connector.
    6. Disconnect the side marker lamp connector.

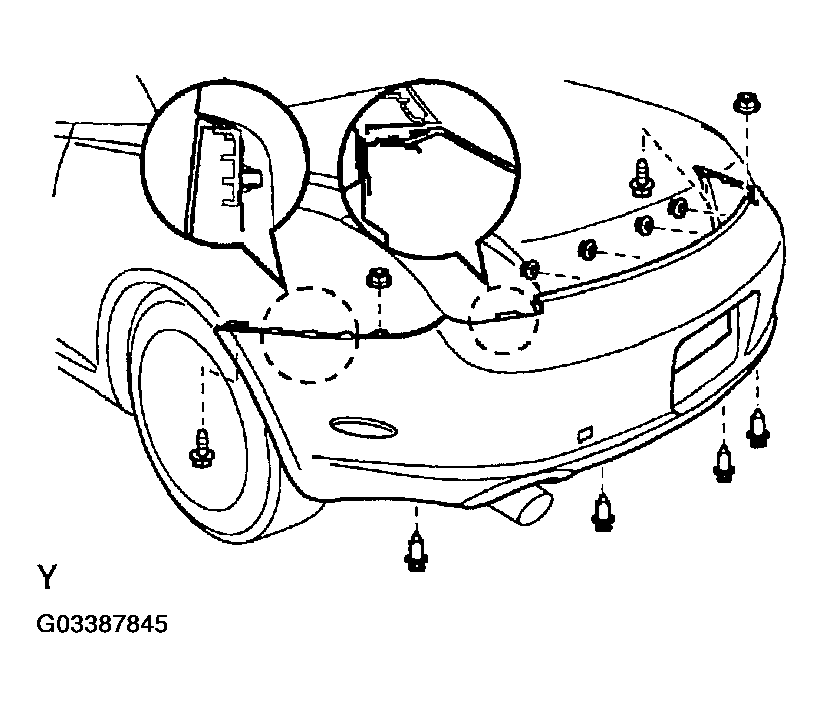

    Fig 2: Removing Rear Bumper Cover
    G03387845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE BACK UP LAMP LENS LH
  17. REMOVE BACK UP LAMP LENS RH
  18. REMOVE REAR SIDE MARKER LAMP LENS LH
  19. REMOVE REAR SIDE MARKER LAMP LENS RH
  20. REMOVE LICENSE PLATE LAMP ASSY
  21. REMOVE REAR BUMPER PIECE LH
  22. REMOVE REAR BUMPER PIECE RH
