Rear Bumper Cover: Components

Fig 1: Identifying Rear Bumper Cover Components (1 Of 2)
G03387842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

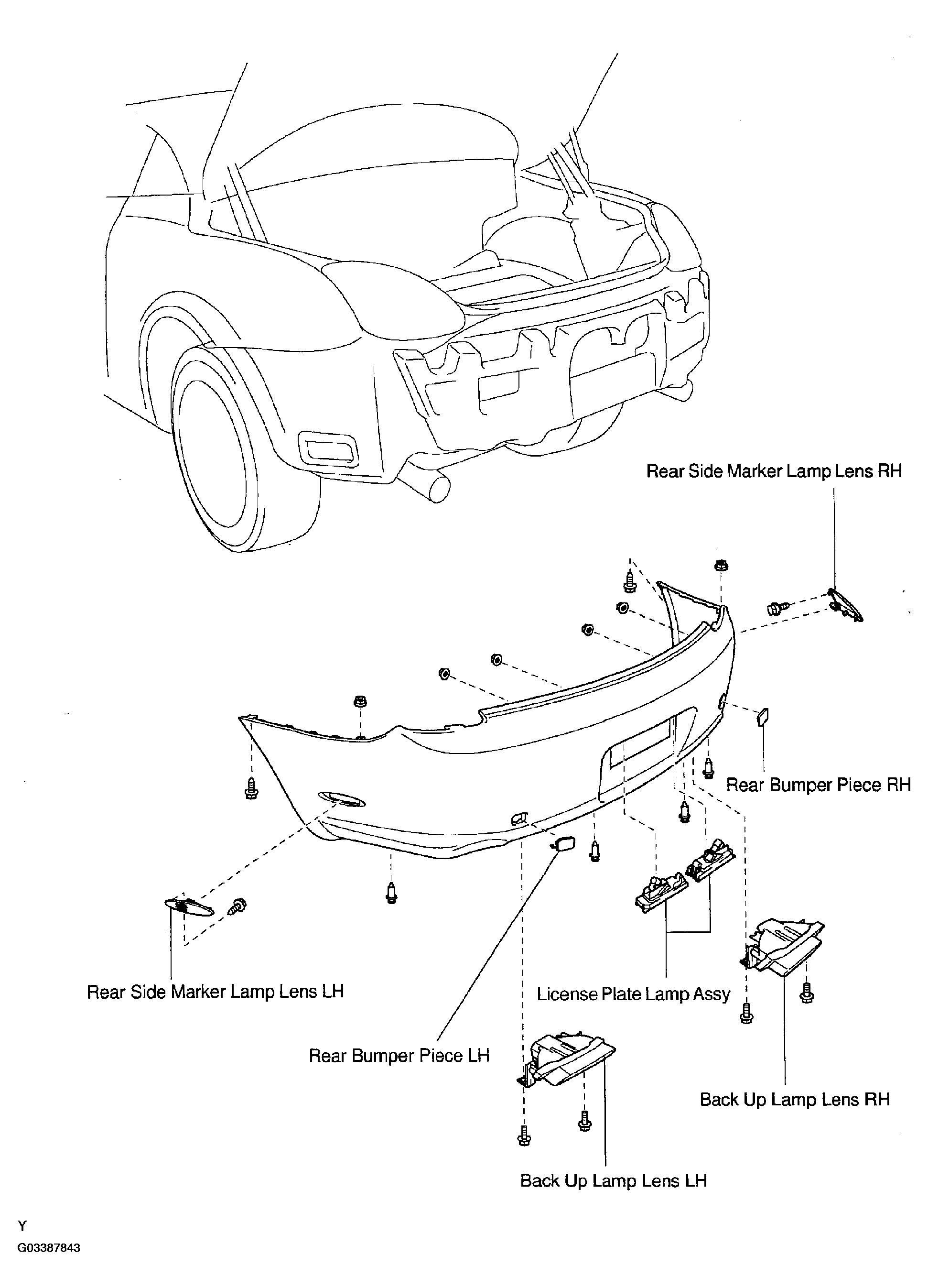

Fig 2: Identifying Rear Bumper Cover Components (2 Of 2)
G03387843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
