Exterior/Interior Trim: Hood: Adjustment

NOTE: Since the centering bolt is used as a hood hinge and hood lock set bolt, the hood and hood lock can not be adjusted with it on. Substitute a bolt with washer for the centering bolt.

Fig 1: Identifying Centering Bolt

INSPECT HOOD SUB-ASSY
1. Check that the clearance is within the standard value.

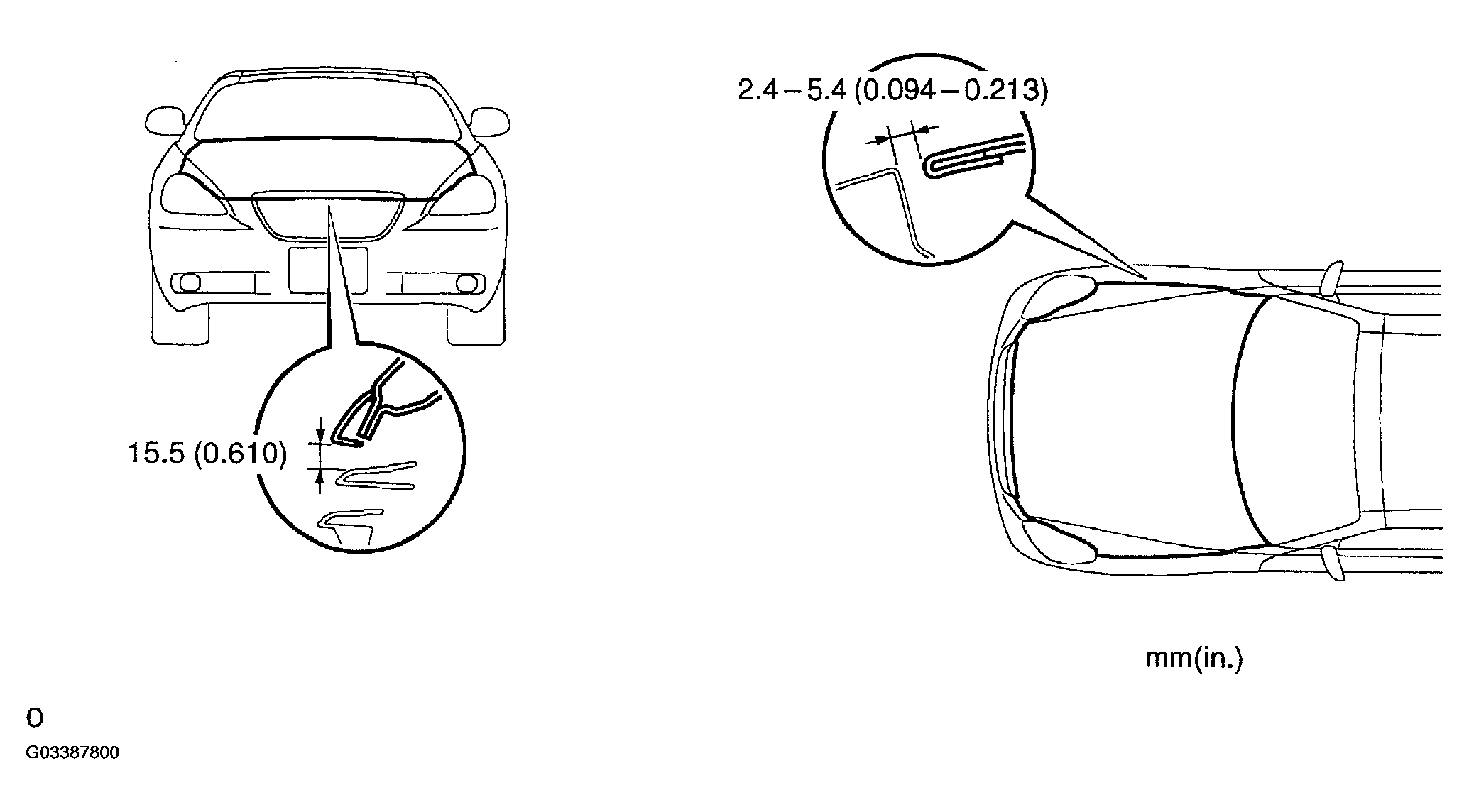

Fig 2: Checking Hood Clearance
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST HOOD SUB-ASSY
1. Adjust the hood by loosening the hood side hinge bolts.
  Torque: 13 N.m (130 kgf.cm, 10 ft.lbf)

  Fig 3: Adjusting Hood By Loosening Hood Side Hinge Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Adjust the hood by turning the cushions.

  Fig 4: Adjusting Hood By Turning Cushions
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Adjust the lock by loosening the bolt.
  Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

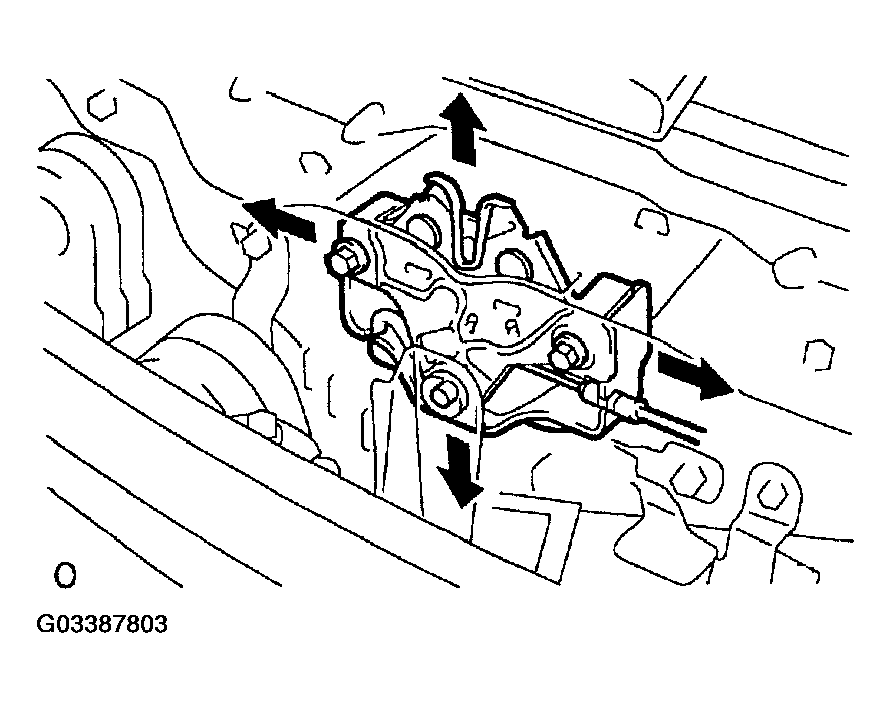

  Fig 5: Adjusting Hood Lock
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
