DTC B1231/31 Jam Protection Limit Switch Circuit On Driver Door & DTC B1232/32 Jam Protection Pulse Switch Circuit On Driver Door: Wiring Diagram

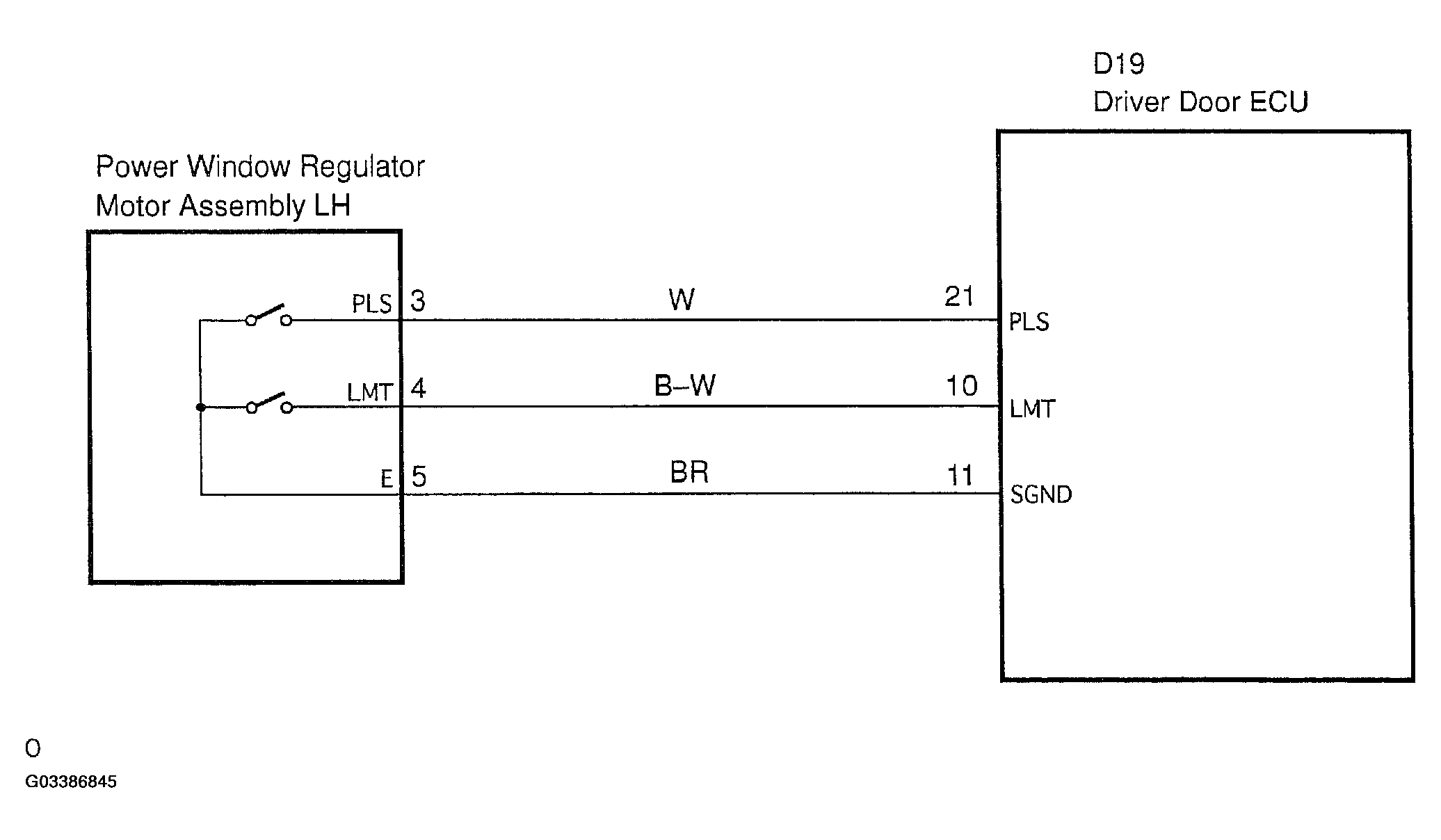

Fig 1: Jam Protection Pulse Switch Circuit On Driver Door Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
