Section 92 (Water Pump): Installation

WARNING: This page is about a different car, the 2001 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL WATER PUMP
Install a new gasket and the water pump with the 4 bolts and 2 nuts.

Torque: 8 N.m (80 kgf.cm, 69 in.lbf)

NOTE: Do not get oil on the gasket.

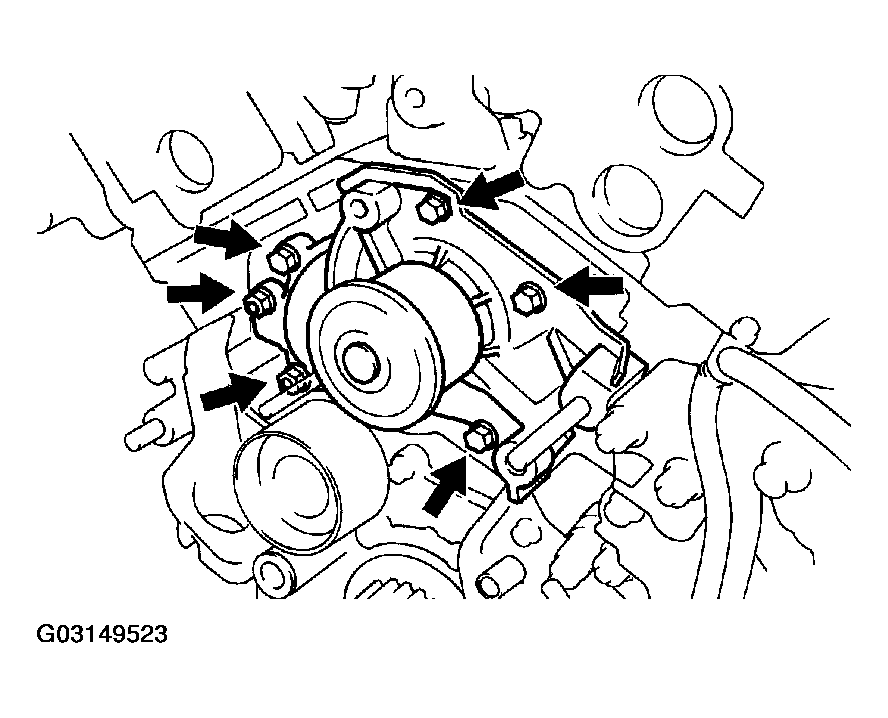

Fig 1: Identifying Water Pump Fasteners
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO.3 TIMING BELT COVER
(See INSTALLATION )
INSTALL NO.2 IDLER PULLEY
(See INSTALLATION (RX 300) )
INSTALL CAMSHAFT TIMING PULLEYS
(See INSTALLATION (RX 300) )
INSTALL TIMING BELT
(See INSTALLATION (RX 300) )
INSTALL FRONT UPPER SUSPENSION BRACE
(See INSTALLATION )
INSTALL OUTER COWL TOP PANEL
(See INSTALLATION )
FILL WITH ENGINE COOLANT
START ENGINE AND CHECK FOR LEAKS
RECHECK ENGINE COOLANT LEVEL
