Section 92 (Water Pump)
>>
Components
Section 92 (Water Pump): Components
WARNING:
This page is about a different car, the 2001 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.

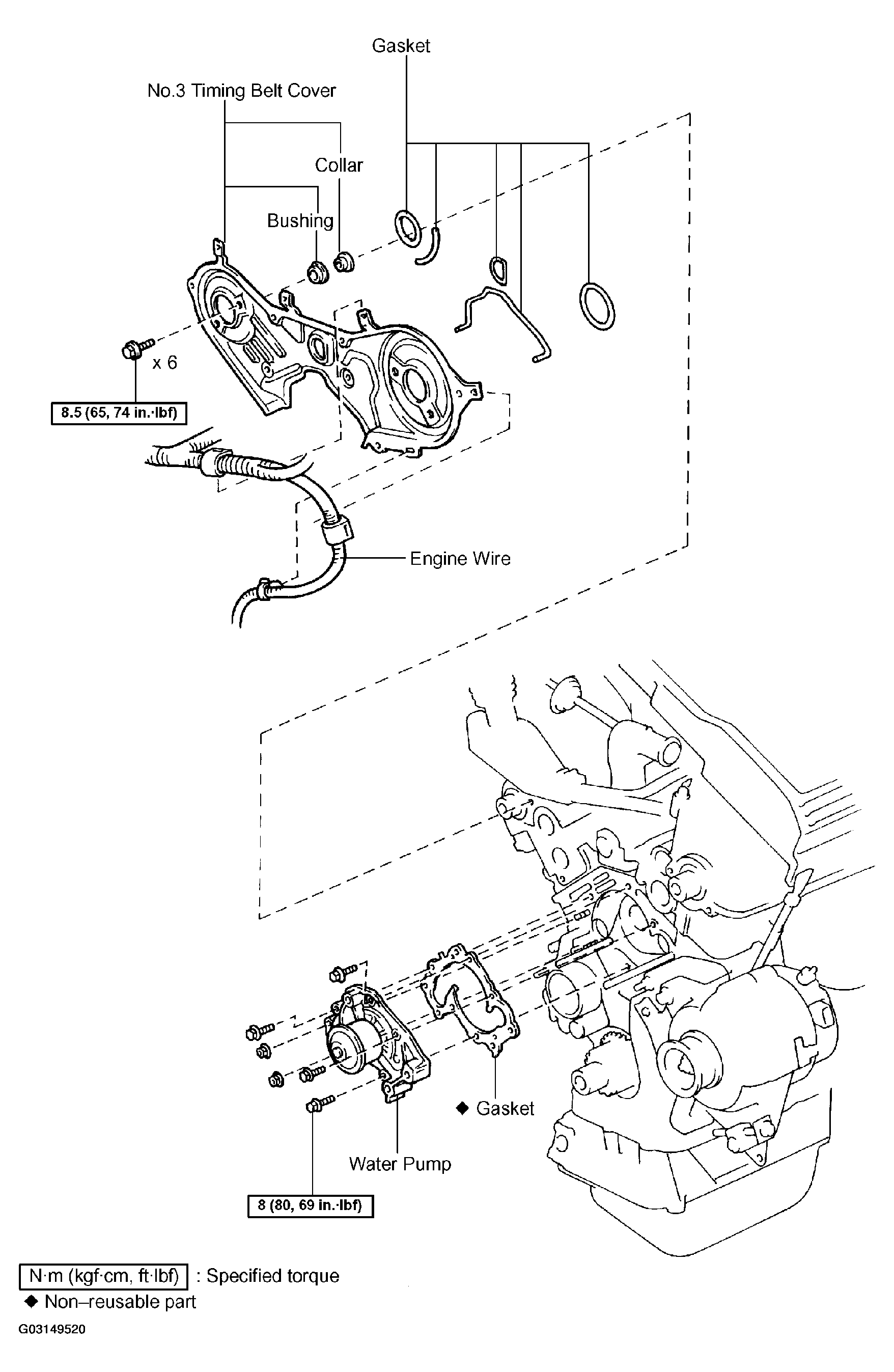

Fig 1: Identifying Components For Water Pump Removal (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

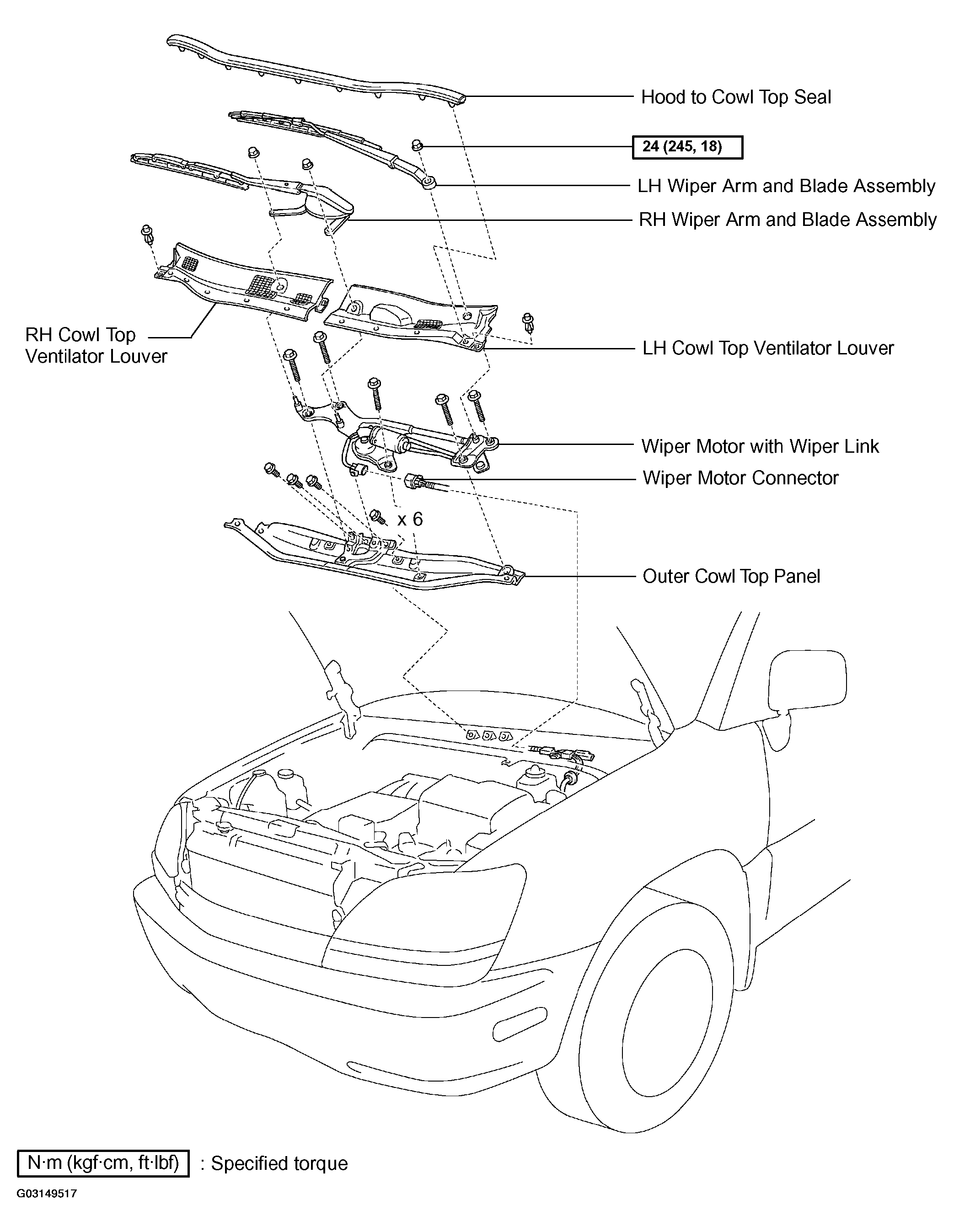

Fig 2: Identifying Components For Water Pump Removal (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

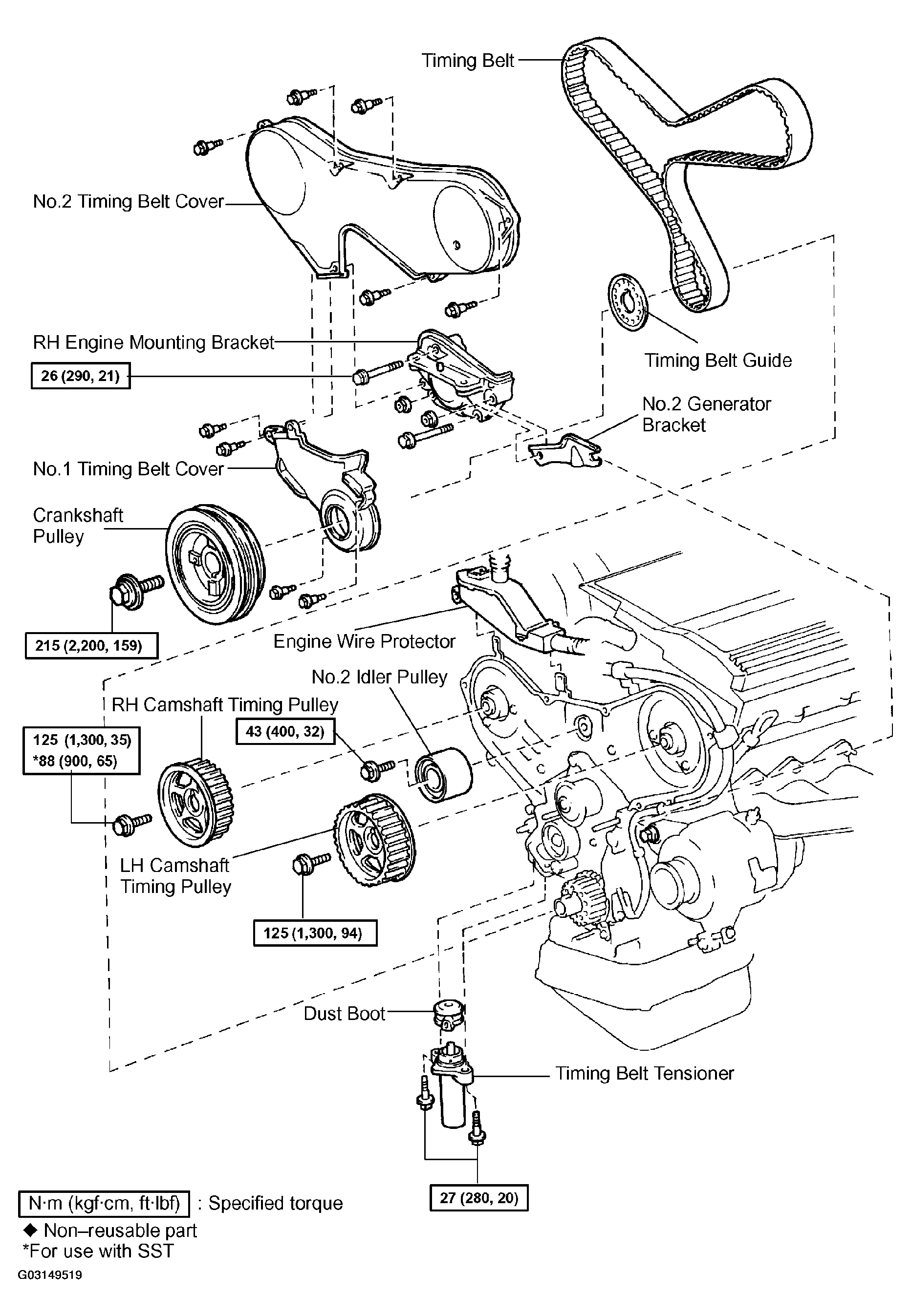

Fig 3: Identifying Components For Water Pump Removal (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

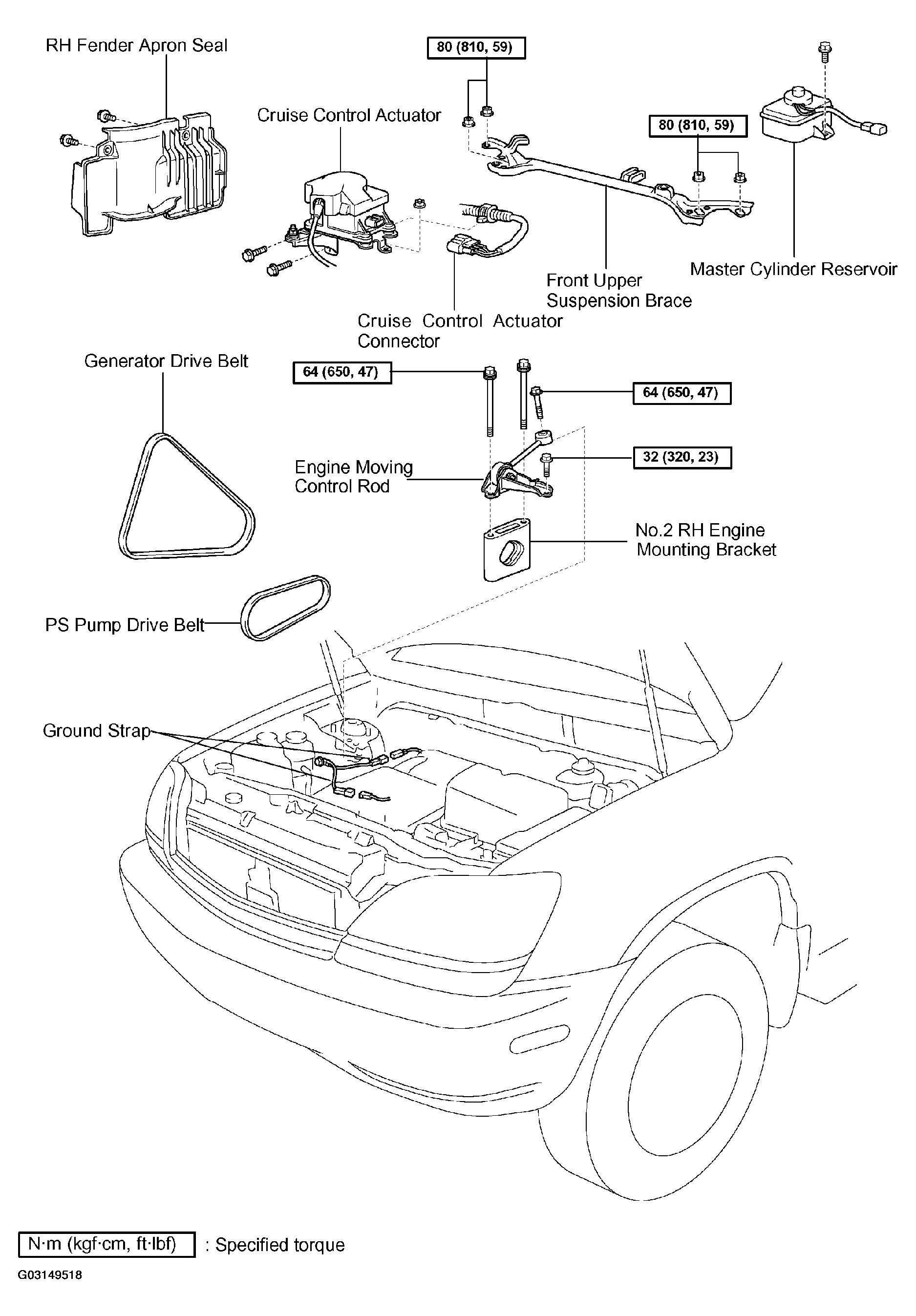

Fig 4: Identifying Components For Water Pump Removal (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
