Timing Belt: Components

WARNING: This page is about a different car, the 2003 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.

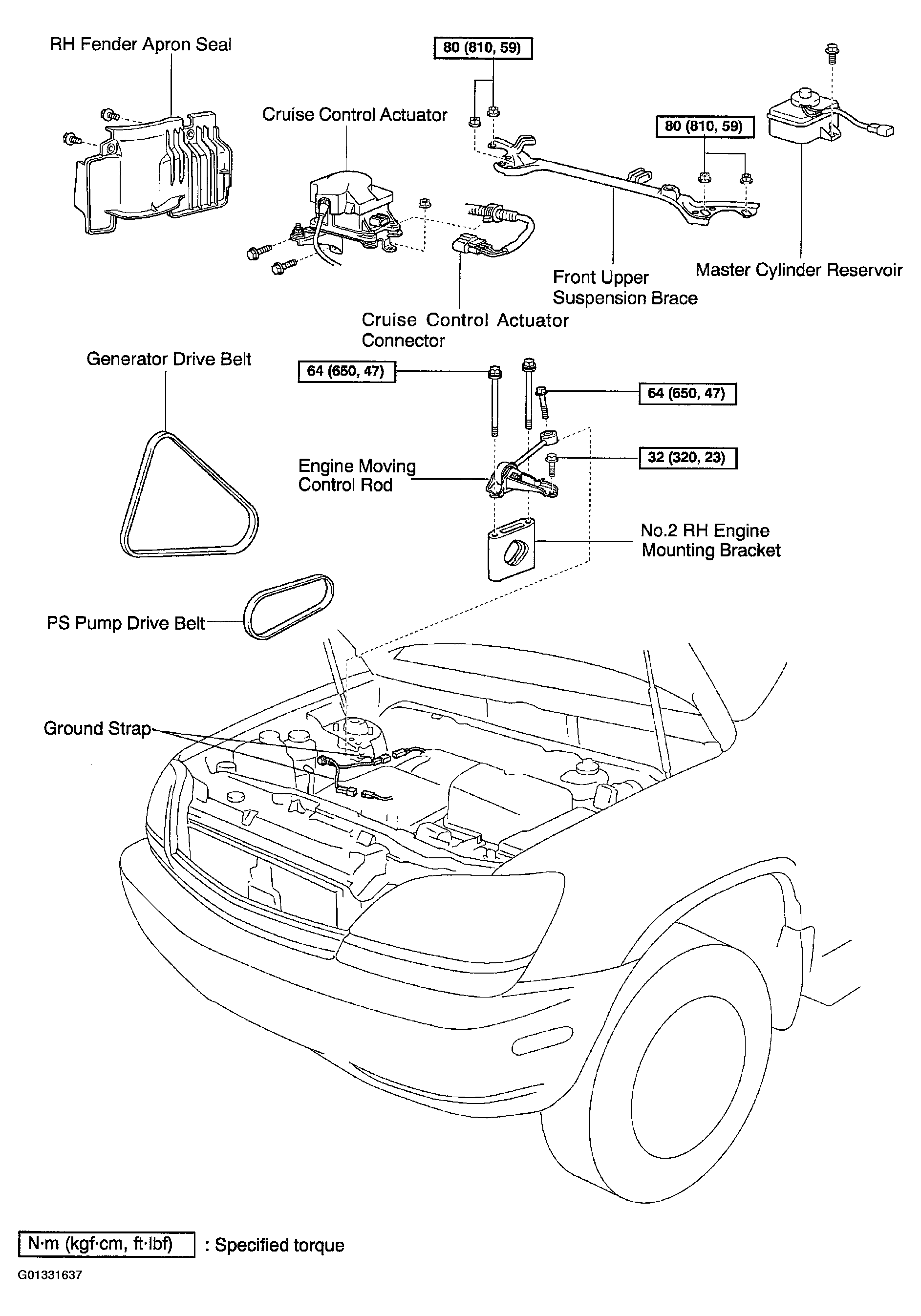

Fig 1: Identifying Timing Belt Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Timing Belt Components (2 Of 3)

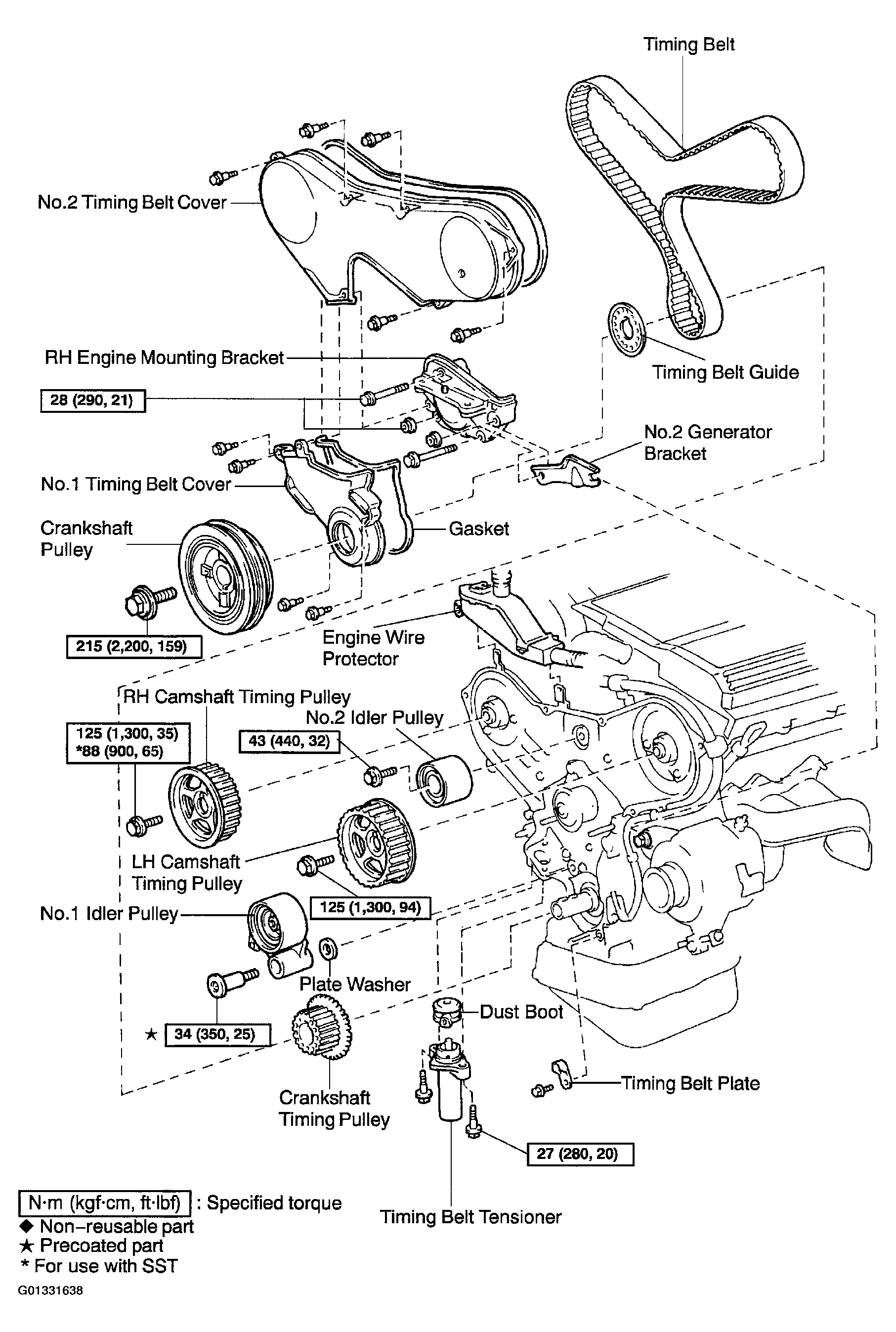

Fig 3: Identifying Timing Belt Components (3 Of 3)
