Cylinder Block: Components

WARNING: This page is about a different car, the 2003 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.

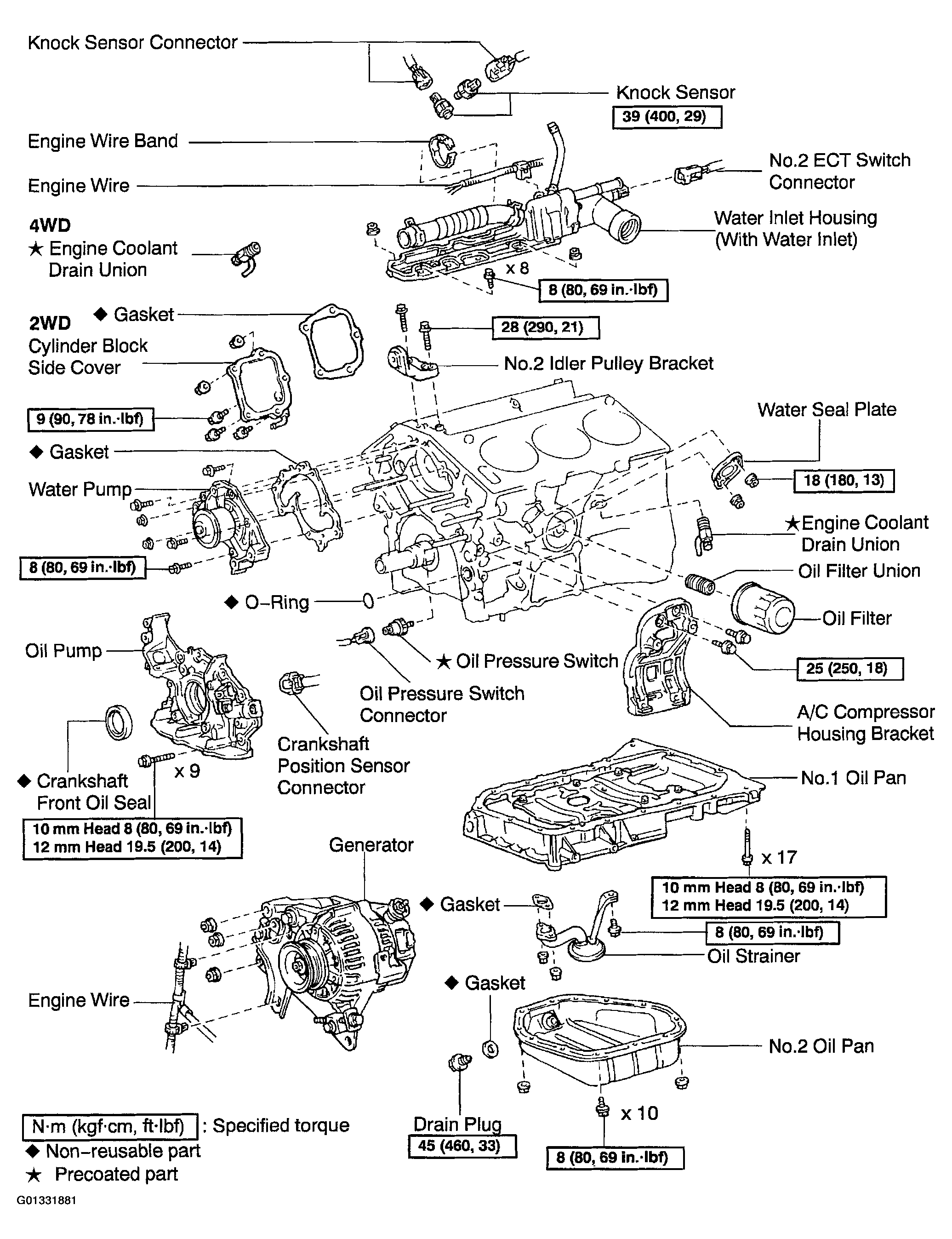

Fig 1: Identifying Cylinder Block Components (1 Of 2)
G01331881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

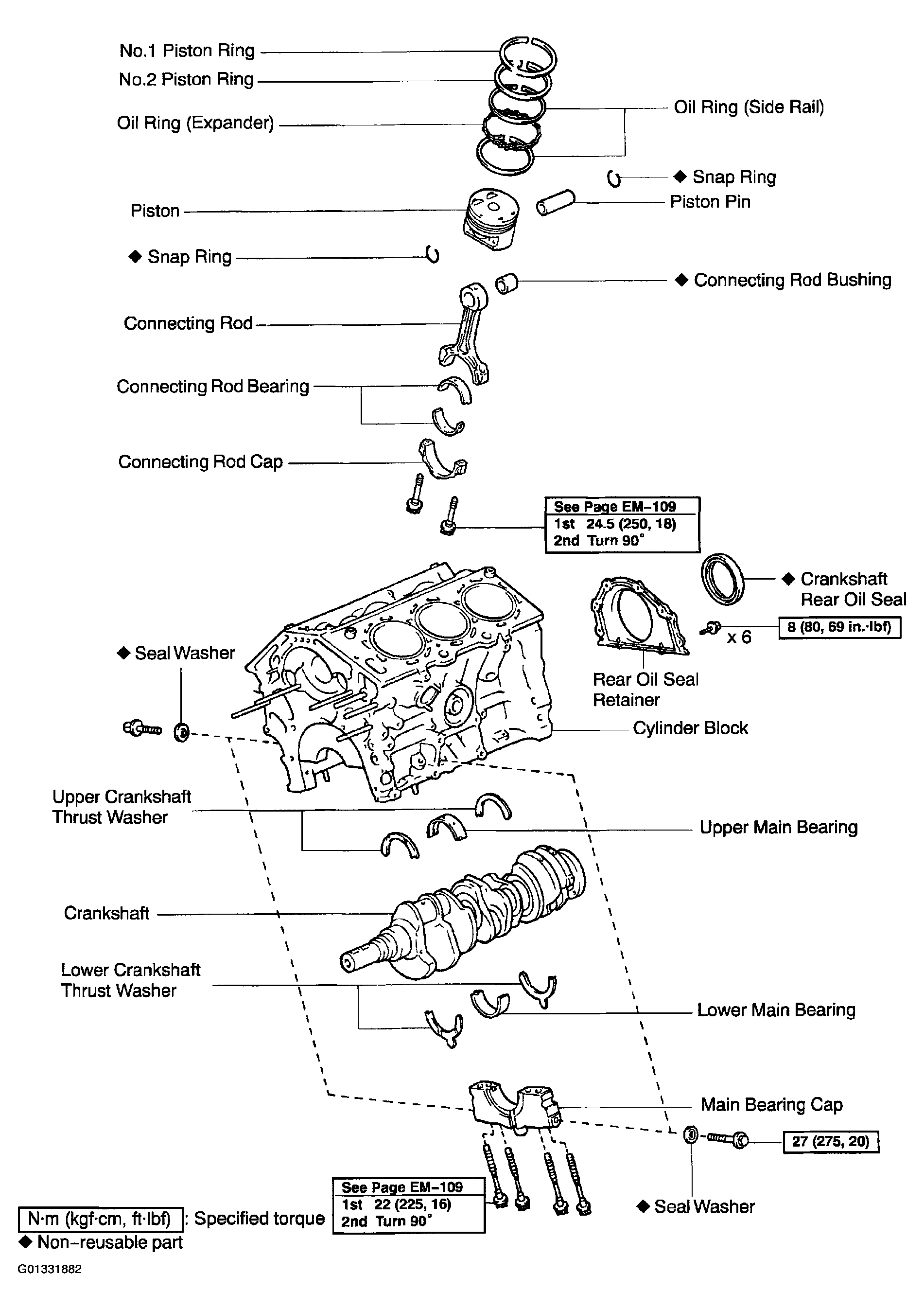

Fig 2: Identifying Cylinder Block Components (2 Of 2)
G01331882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
