GENERATOR (SC1 Type): Removal

Loosen the pivot bolt, adjusting lock bolt, and adjusting bolt, and remove the drive belt.

1. Torque  :
   1. Pivot Bolt  : 56 N.m (570 kgfcm, 41 ft.lbf)
   2. Lock Bolt  : 18 Nm (180 kgf.cm, 13 ft.lbf)

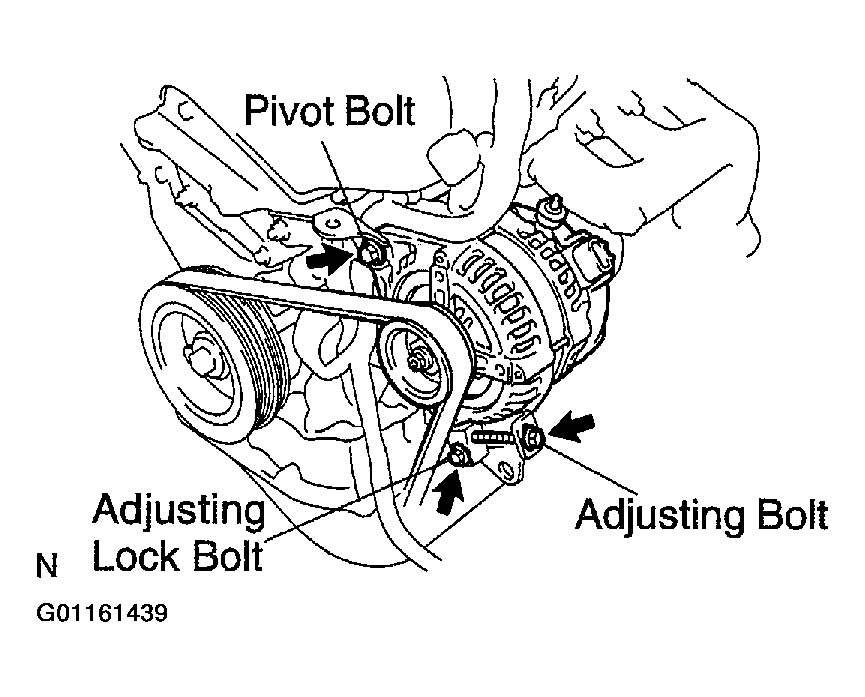

   Fig 1: Identifying Generator Mounting Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the generator connector.
2. Remove the nut, and disconnect the generator wire.
3. Disconnect the wire harness from the clip.
4. Remove the pivot bolt, plate washer, adjusting lock bolt and generator.

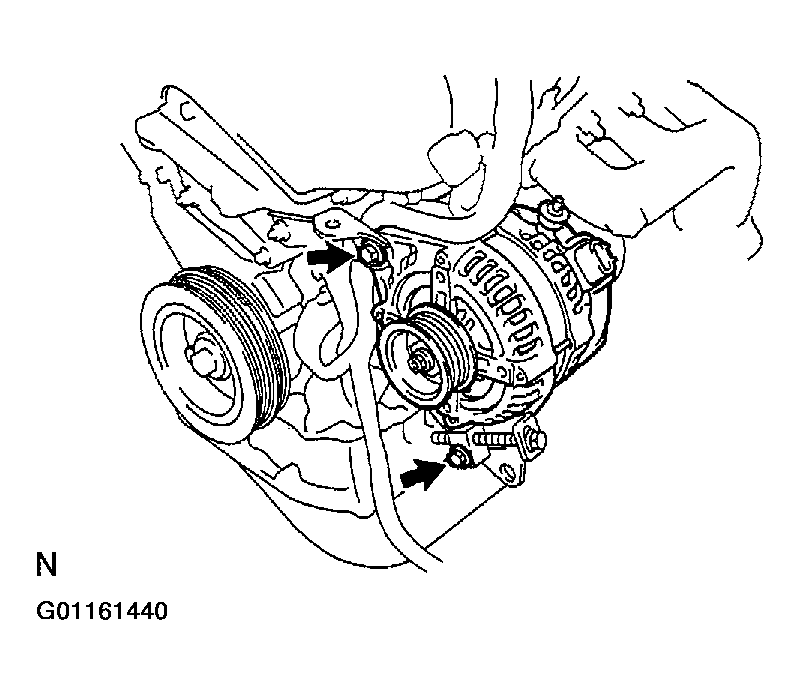

Fig 2: Removing Generator

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
