GENERATOR (L3B Type): Replacement

Replace front bearing.
1. Remove the 4 screws, bearing retainer and bearing.

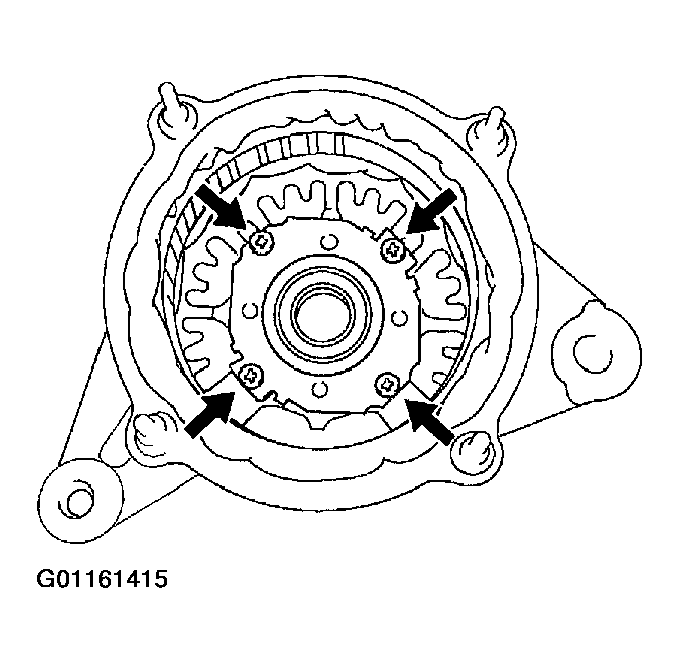

  Fig 1: Removing Screws From Bearing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a socket wrench and press, press out the bearing.

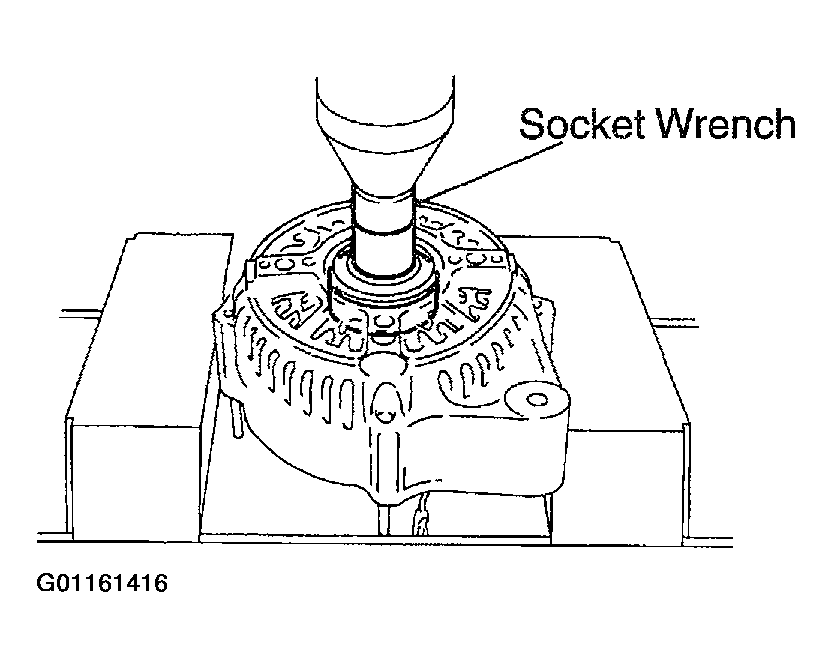

  Fig 2: Pressing Out Bearing Using Socket Wrench
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using SST and a press, press in a new bearing.
  1. SST 09950-60010 (09951-00500)
4. Install the bearing retainer with the 4 screws.
  1. Torque : 3.0 N.m (31 kgf.cm, 27 in.lbf)
Fig 3: Pressing In New Bearing
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Replace rear bearing.
1. Using SST, remove the bearing cover (outside) and bearing.
  1. SST 09820-00021
  NOTE: Be careful not to damage the fan.
2. Remove the bearing cover (inside).

  Fig 4: Removing Bearing Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Place the bearing cover (inside) on the rotor.

  Fig 5: Placing Bearing Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using SST and a press, press in a new bearing.
  1. SST 09820-00031
  Fig 6: Pressing In Bearing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Using SST, push in the bearing cover (outside).
  1. SST 09285-76010
Fig 7: Pushing In Bearing Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
