Automatic Transaxle System: Operation

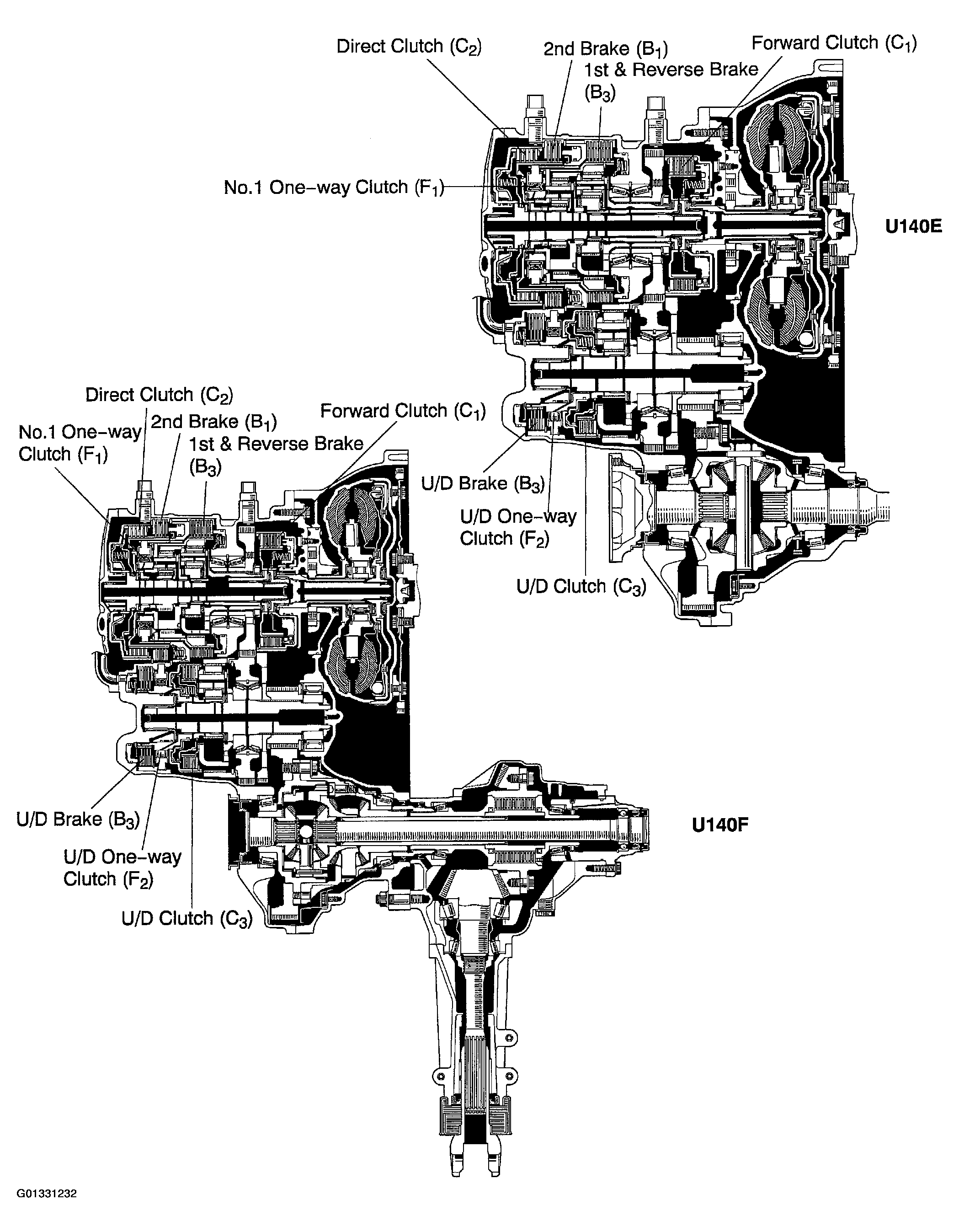

Fig 1: Identifying Automatic Transaxle Components
G01331232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

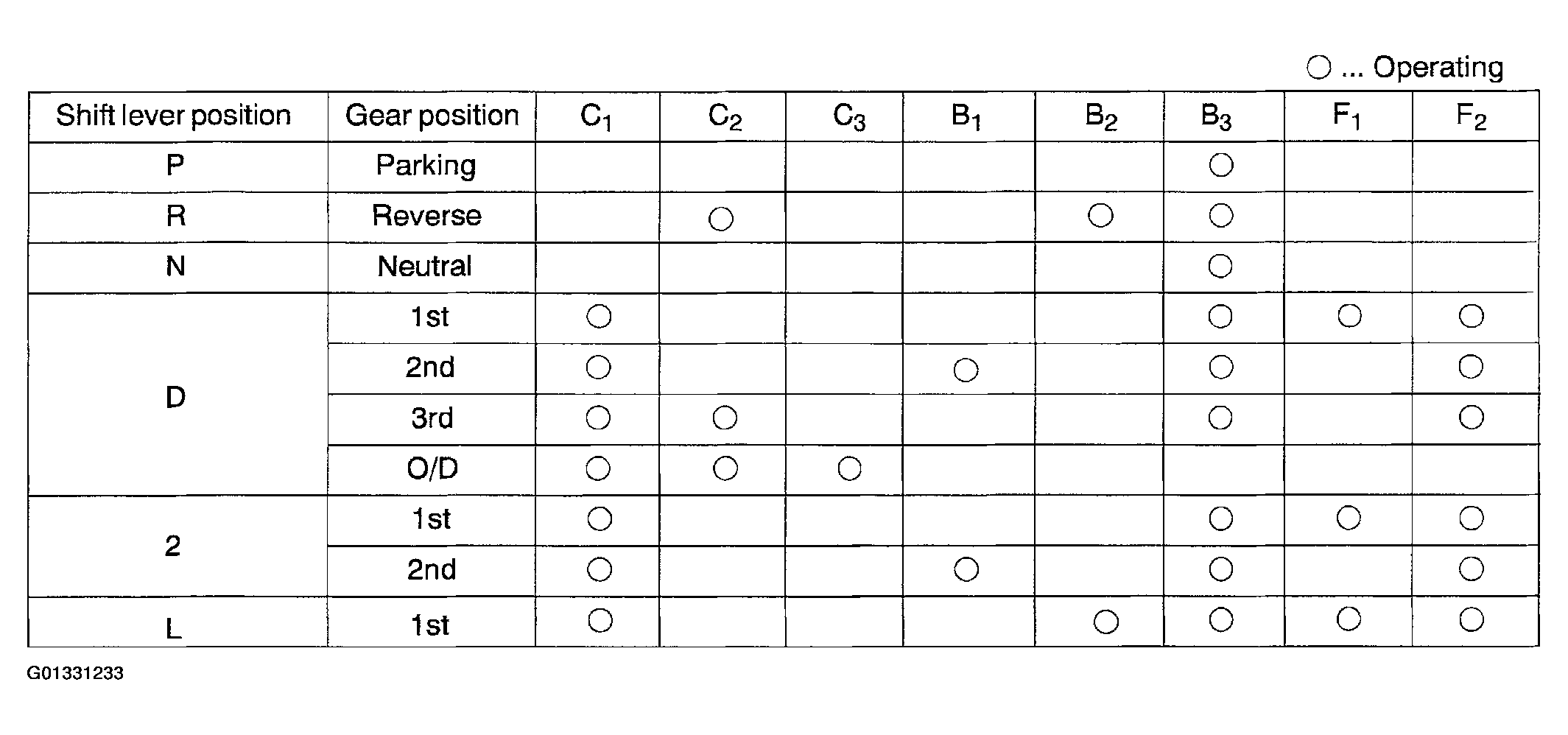

Fig 2: Automatic Transaxle Operational Chart
G01331233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
