Testing Procedure

For wiring diagram, see Figure. For testing procedure, see Fig 1 and Fig 2 .

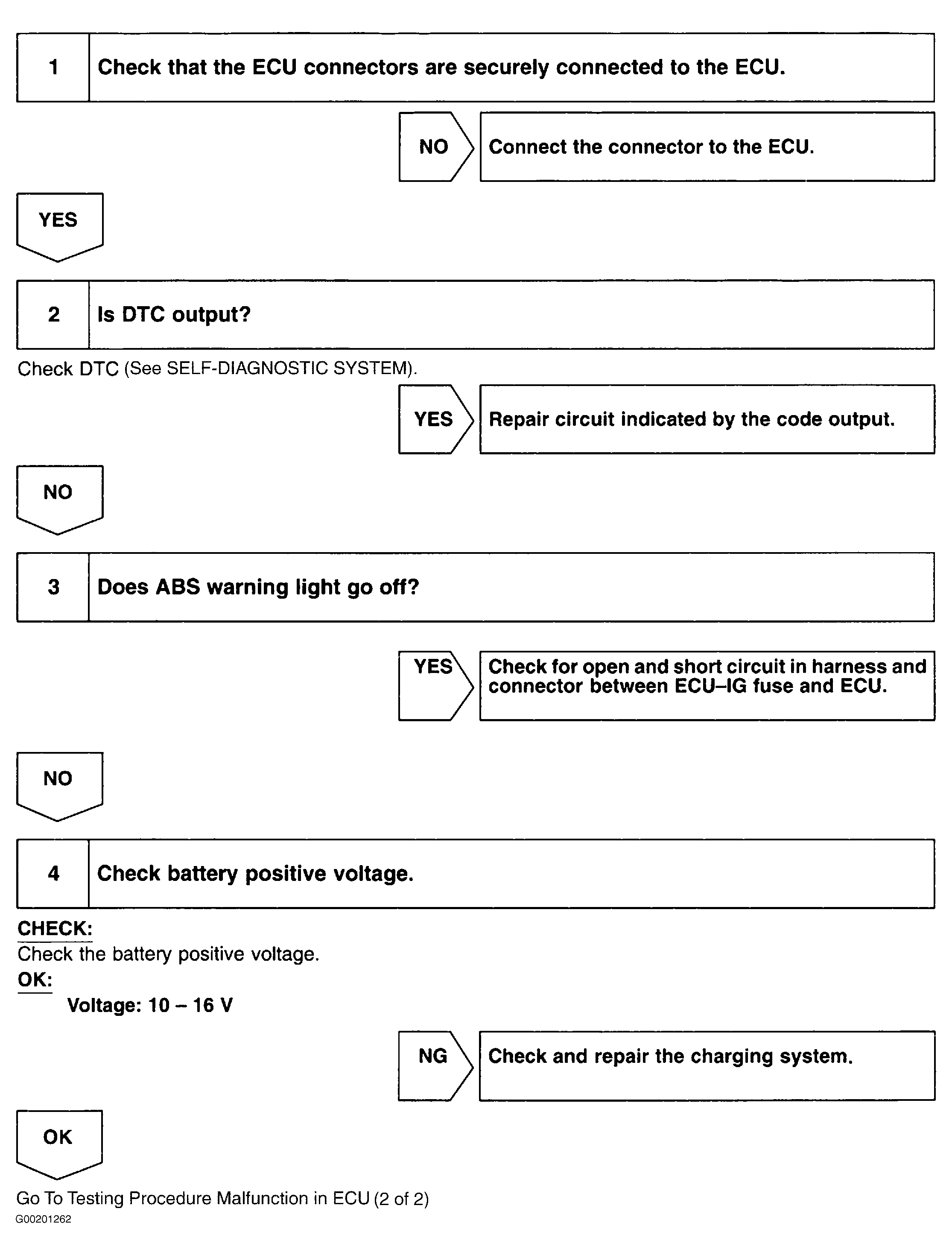

Fig 1: Testing Procedure Malfunction In Skid Control ECU (1 Of 2)
G00201262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

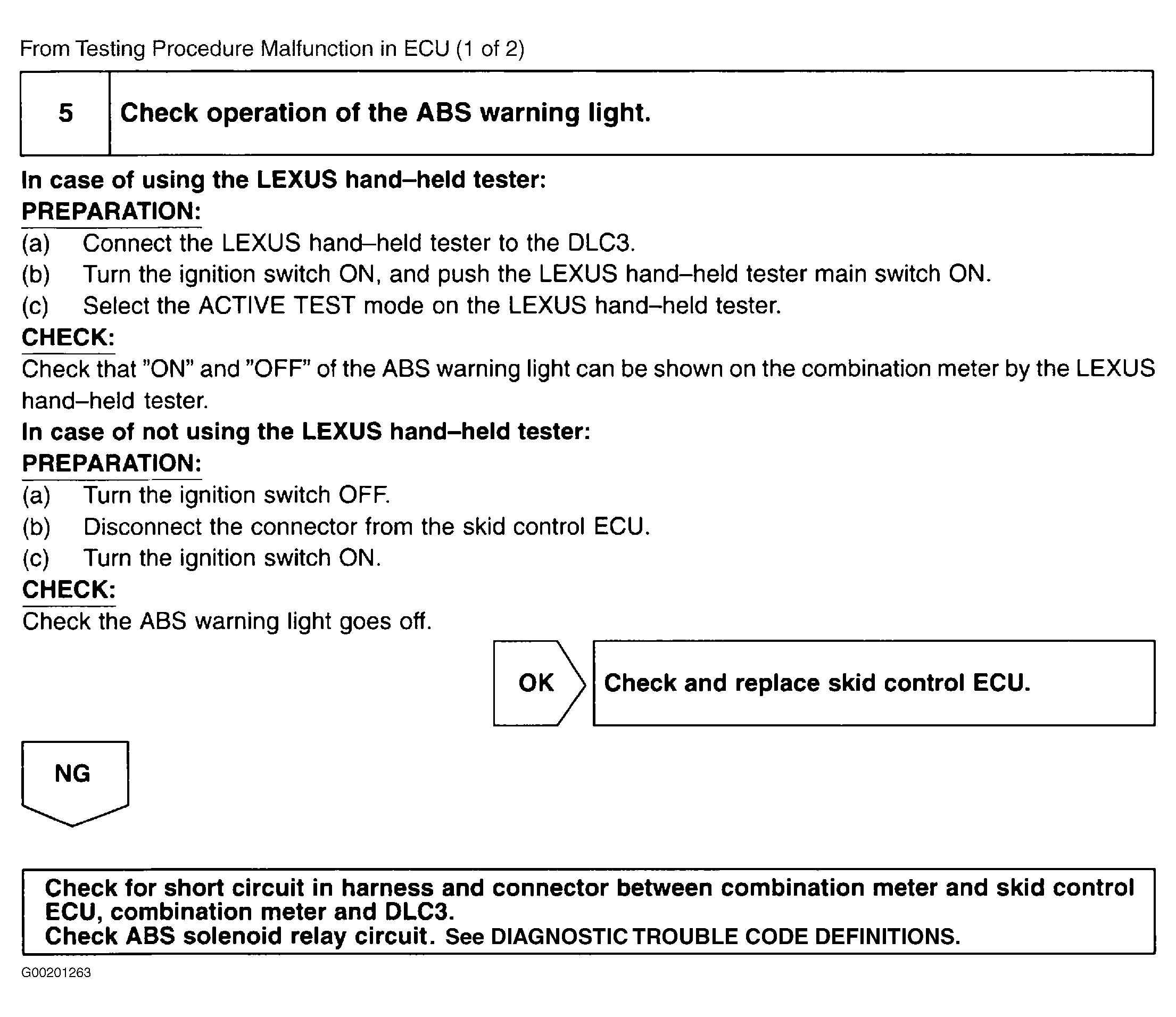

Fig 2: Testing Procedure Malfunction In Skid Control ECU (2 Of 2)
G00201263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
