Power Tilt And Power Telescopic Steering Column: Removal
- REMOVE STEERING WHEEL PAD NOTE: If the airbag connector is disconnected with the ignition switch at ON or ACC, DTCs will be recorded.
- Place the front wheels facing straight ahead.
- Remove the steering wheel lower No. 2 and No. 3 covers.

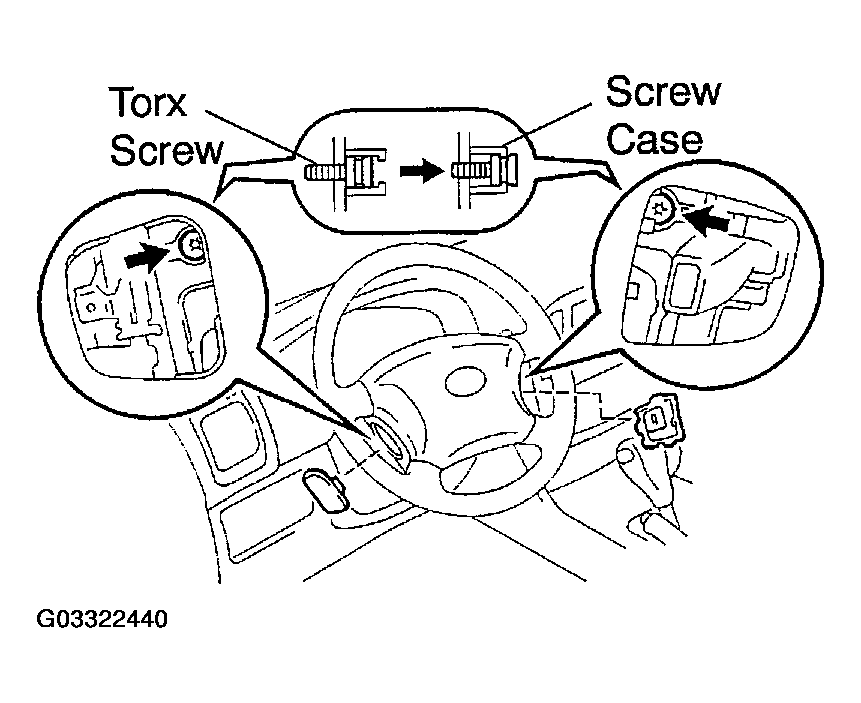

- Using a torx socket wrench, loosen the 2 torx screws.
NOTE: Loosen the 2 screws until the groove along the screw circumference catches on the screw case.

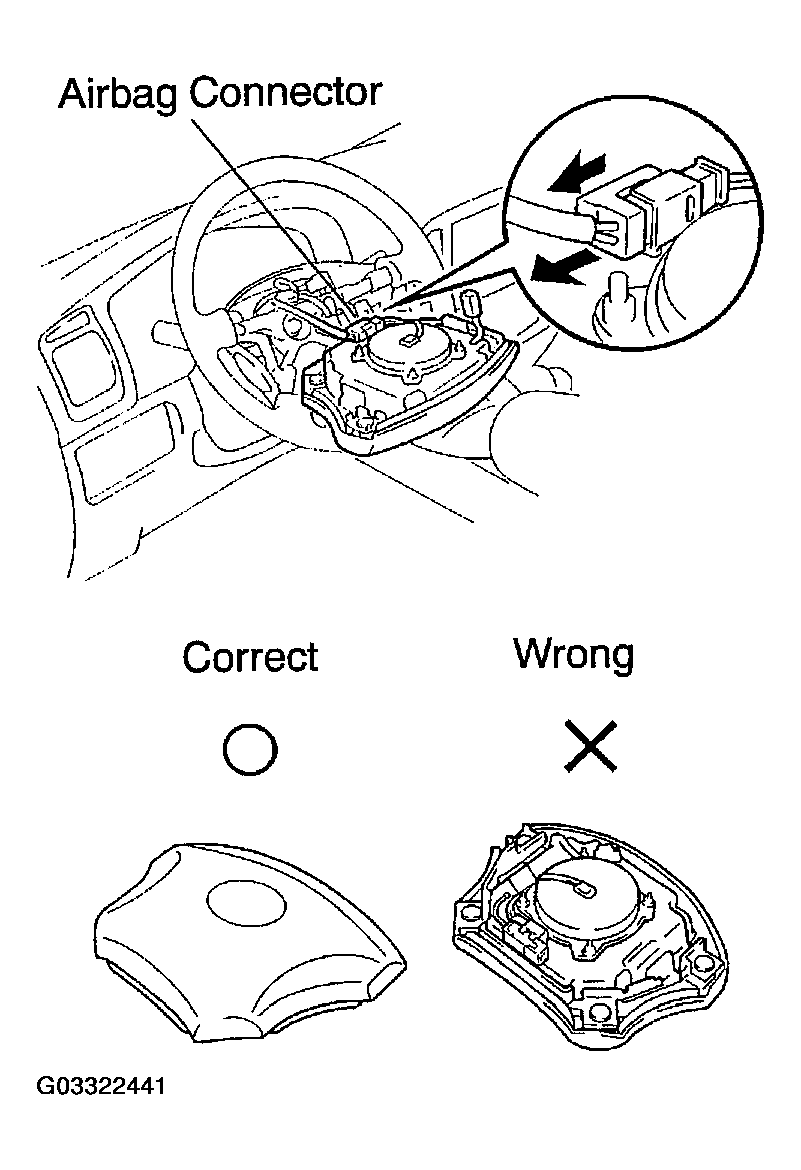

- Pull the pad out from the steering wheel and disconnect the airbag connector.
- Disconnect the connector.CAUTION:
- When storing the wheel pad, keep the upper surface of the pad facing upward.
- Never disassemble the wheel pad.
CAUTION: When removing the wheel pad, take care not to pull the air-bag wire harness.
- REMOVE STEERING WHEEL
- Disconnect the connector.
- Remove the steering wheel set nut.

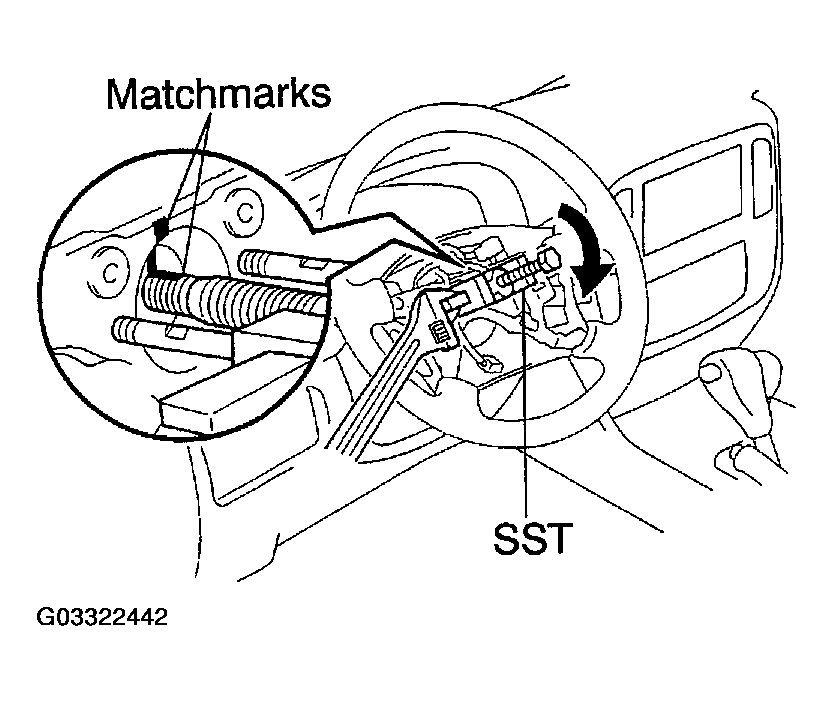

- Place matchmarks on the steering wheel and main shaft assembly.
- Using SST, remove the wheel.
SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)
- REMOVE UPPER AND LOWER COLUMN COVERS
Remove the 3 screws.
- REMOVE COMBINATION SWITCH WITH SPIRAL CABLE
- Disconnect the 5 connectors.
- Disconnect the airbag connector.
- Remove the 3 screws.
- REMOVE SPIRAL CABLE NOTE: Do not disassembly the cable or apply oil to it.
- REMOVE SCUFF PLATE
- REMOVE COWL TRIM
Remove the clip.
- REMOVE CLUSTER FINISH PANEL
Remove the connector.
- REMOVE LOWER NO. 1 PANEL
- Remove the 2 screws and disconnect the hood lock release lever from the panel.
- Remove the 2 screws and disconnect the fuel lid release lever from the panel.
- Remove pad set screw.
- REMOVE LH LOWER PANEL
Remove the 4 bolts.
- REMOVE NO. 2 HEATER TO REGISTER DUCT
Remove the screw.
- DISCONNECT NO. 2 INTERMEDIATE SHAFT ASSEMBLY

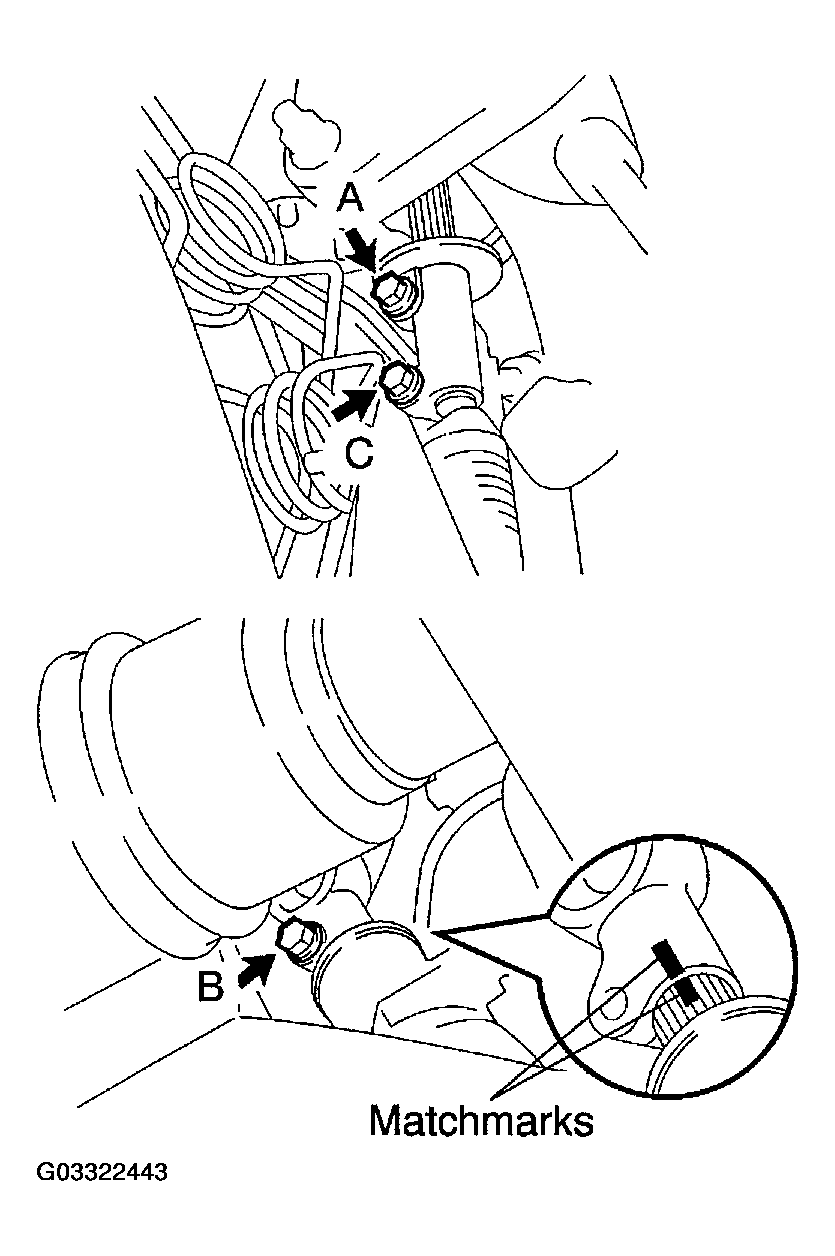

- Place matchmarks on the intermediate shaft and control valve shaft.
- Loosen the bolt A.
- Remove the bolt B and the bolt C.
- REMOVE NO. 2 INTERMEDIATE SHAFT ASSEMBLY
- REMOVE HOLE COVER
Remove the 4 bolts.
- REMOVE STEERING COLUMN ASSEMBLY
- Disconnect the connectors.

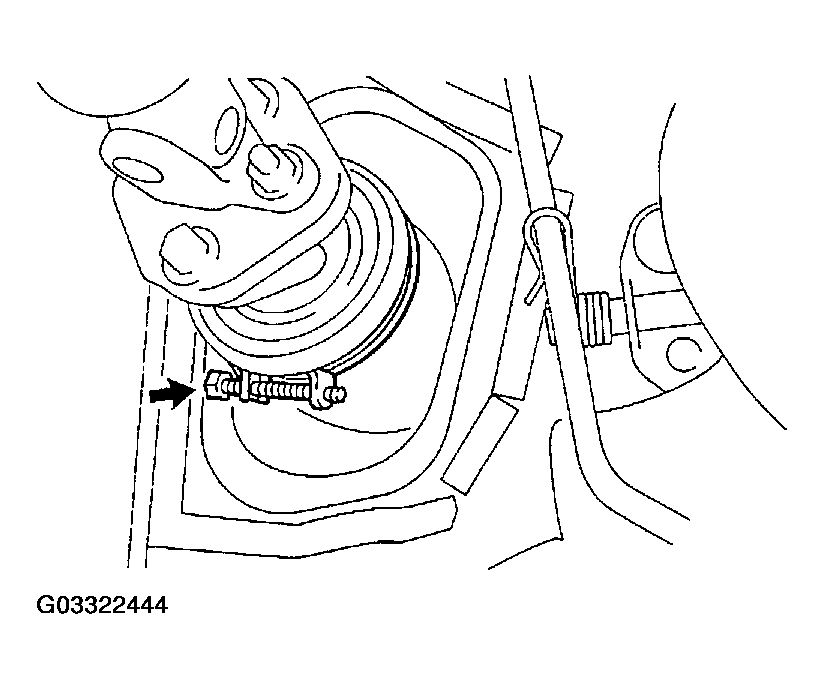

- Loosen the hose clamp.
- Remove the 4 column assembly set nuts.
- REMOVE SLIDING YOKE
- Remove the bolt A.
- Remove the thrust stopper.
- REMOVE HOSE CLAMP
- REMOVE NO. 2 HOLE COVER
