Power Tilt And Power Telescopic Steering Column: Components

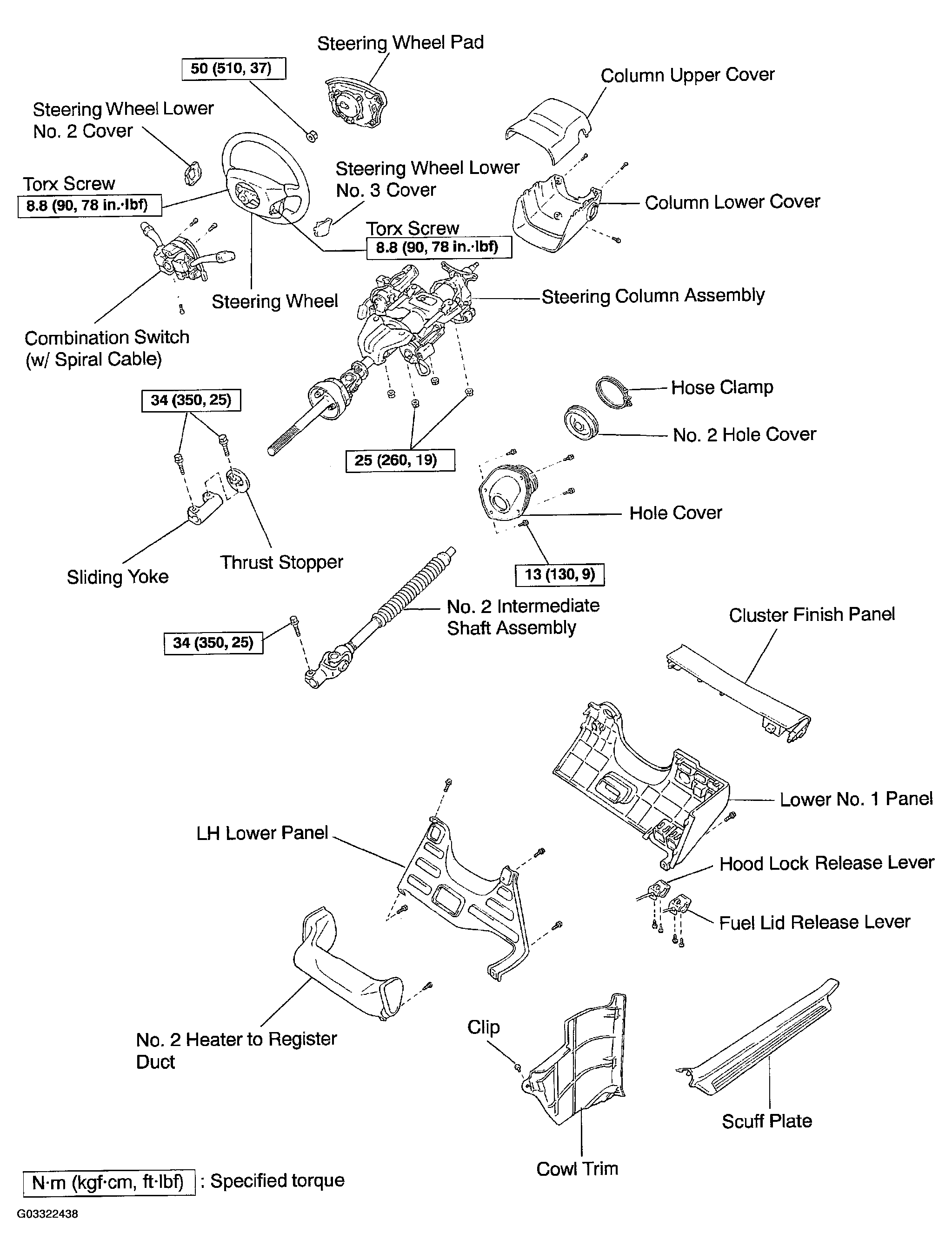

Fig 1: Exploded View Of Power Tilt And Power Telescopic Steering Column Components (1 Of 2)
G03322438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

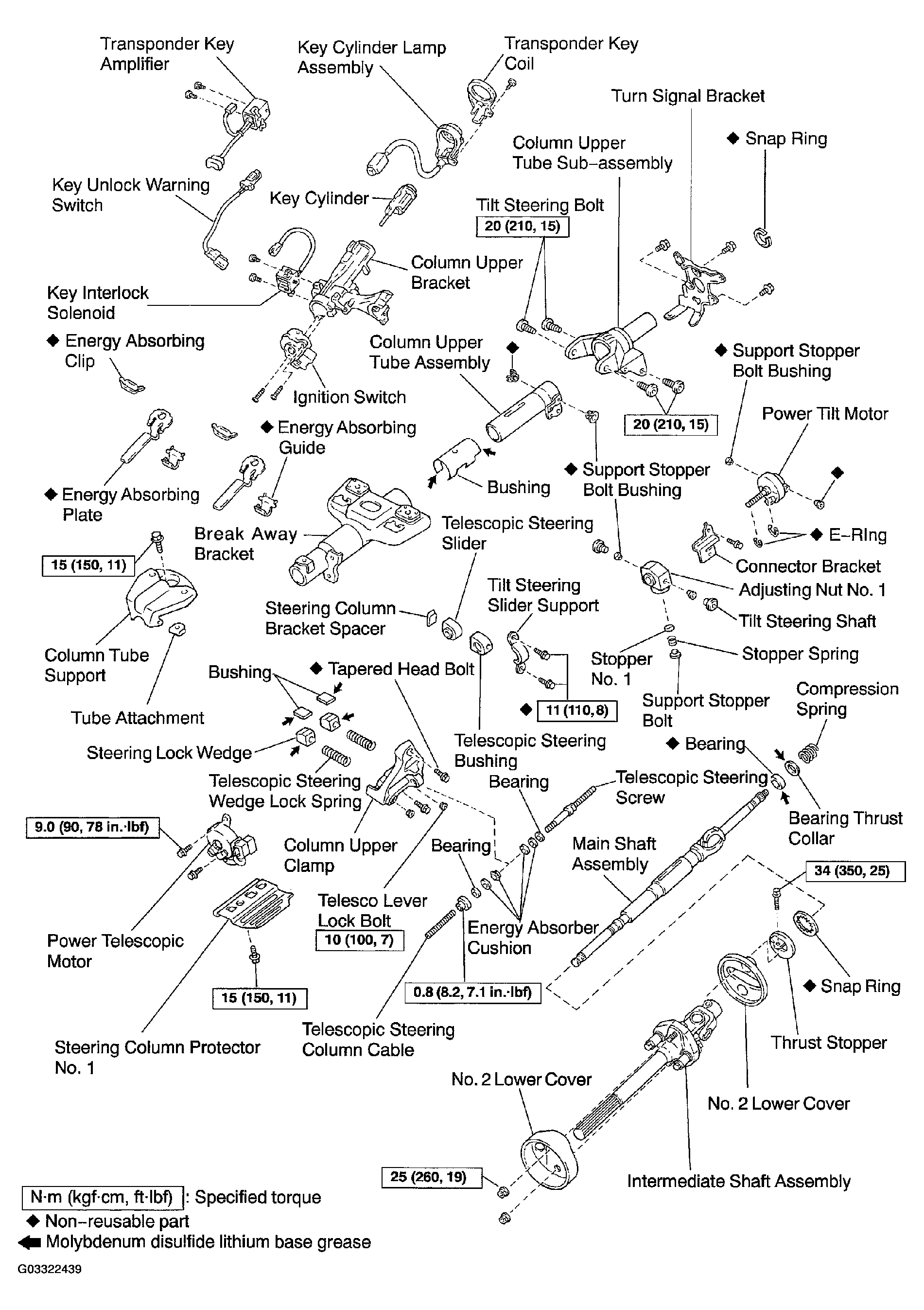

Fig 2: Exploded View Of Power Tilt And Power Telescopic Steering Column Components (2 Of 2)
G03322439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
