Power Steering Vane Pump: Components

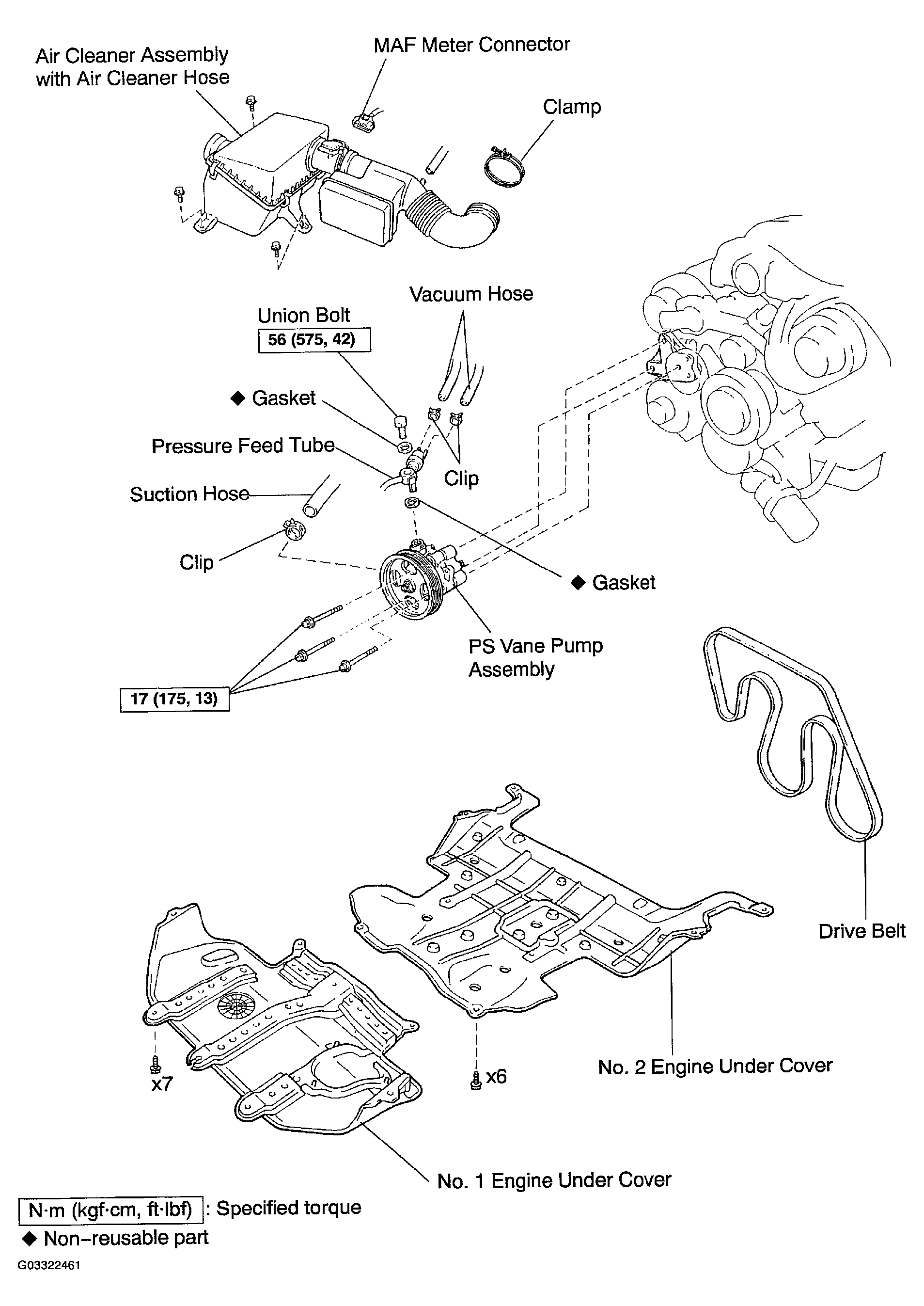

Fig 1: Exploded View Of Power Steering Vane Pump (1 Of 2)
G03322461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

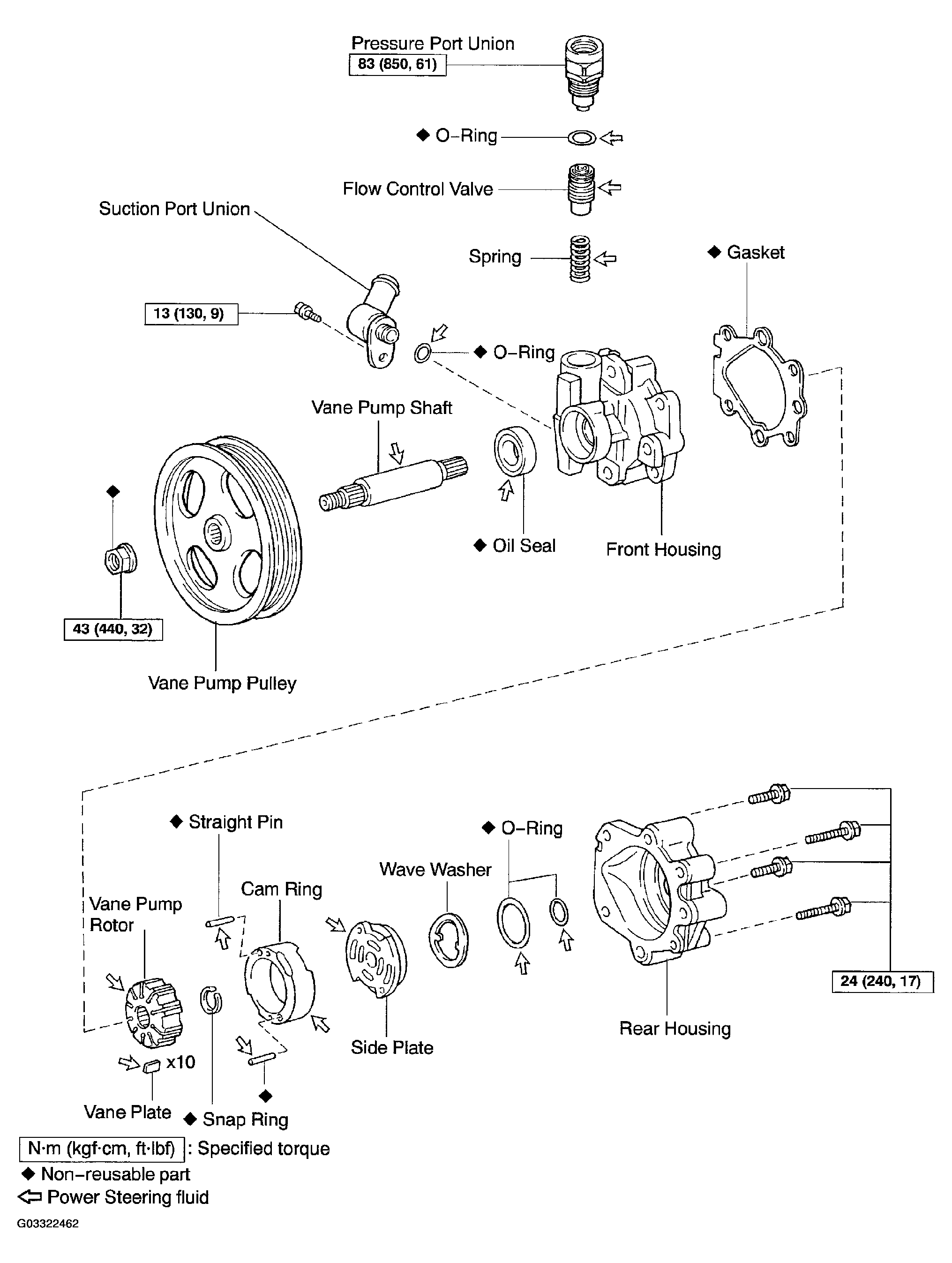

Fig 2: Exploded View Of Power Steering Vane Pump (2 Of 2)
G03322462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
