Testing Procedure

For wiring diagram see Figure. For testing procedure see Fig 1 & Fig 2 .

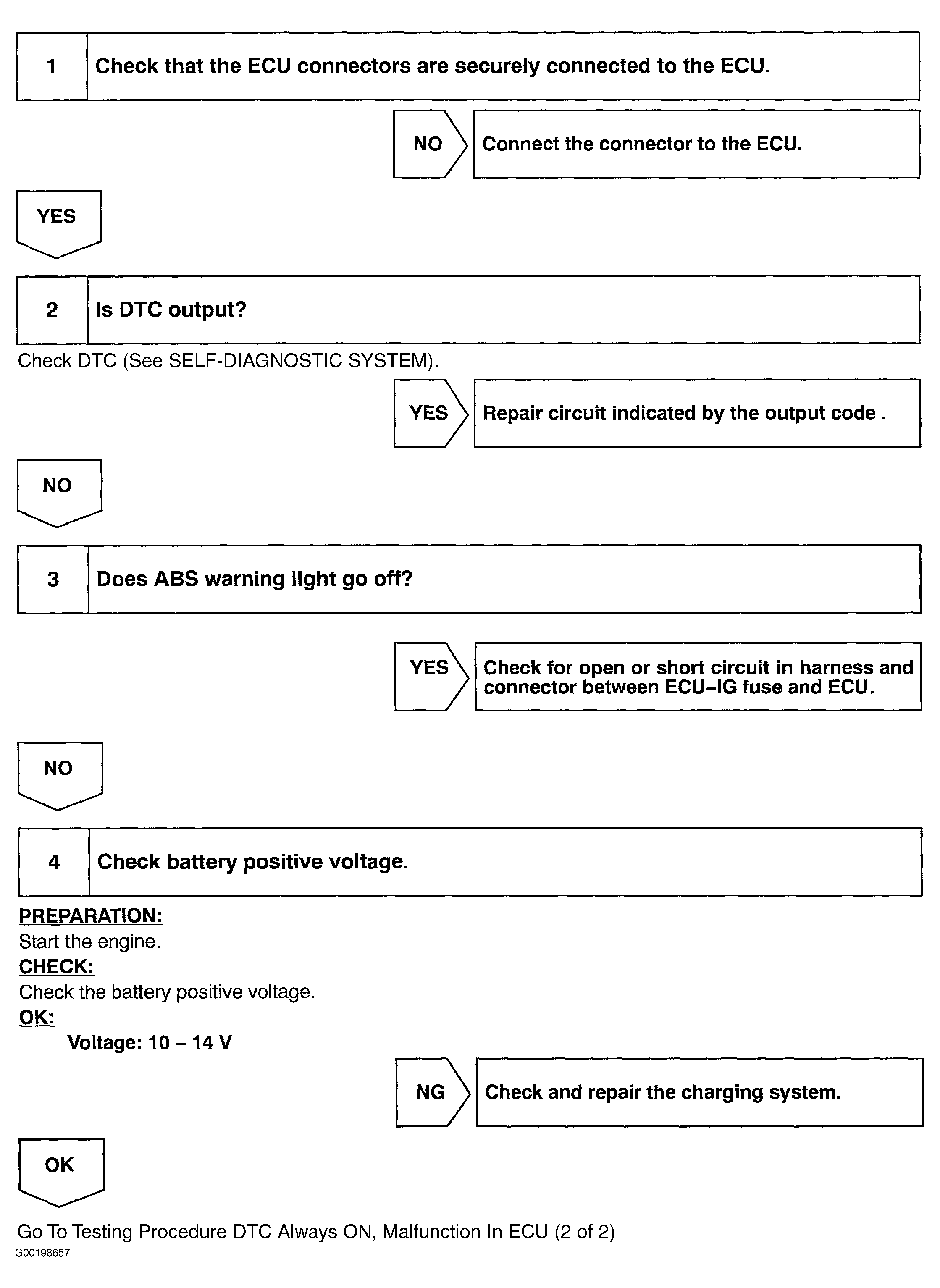

Fig 1: Testing Procedure DTC Always On, Malfunction In ECU (1 Of 2)
G00198657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

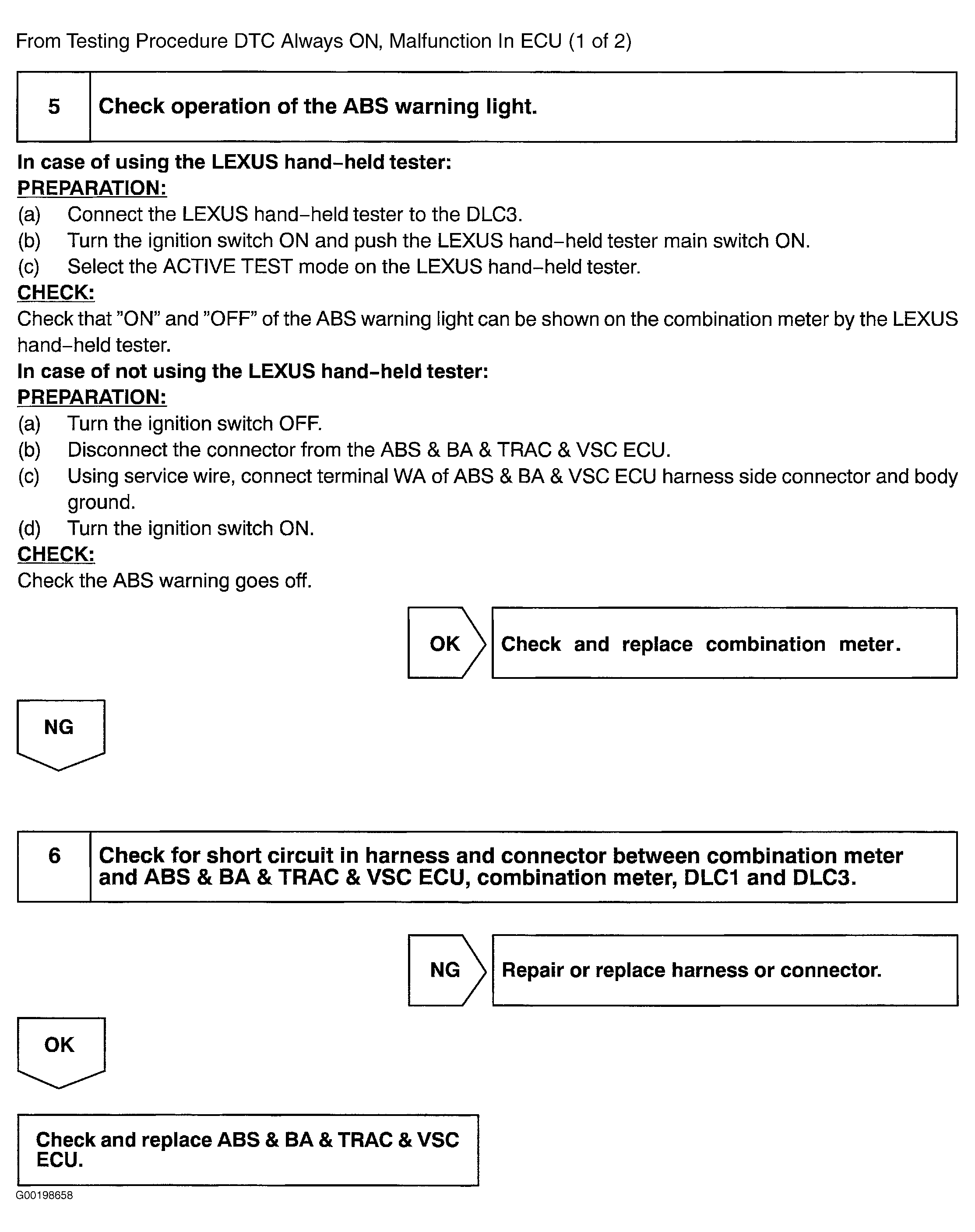

Fig 2: Testing Procedure DTC Always On, Malfunction In ECU (1 Of 2)
G00198658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
