Connector Identification

Fig 1: Identifying Driving Position Memory & Return Switch Connector Terminals
G98I03743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Electro Chromic Inside Mirror Connector Terminals
G96B07667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Power Mirror Control ECU Connector Terminals
G98D03745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Power Mirror Motor Connector Terminals
G99A50153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

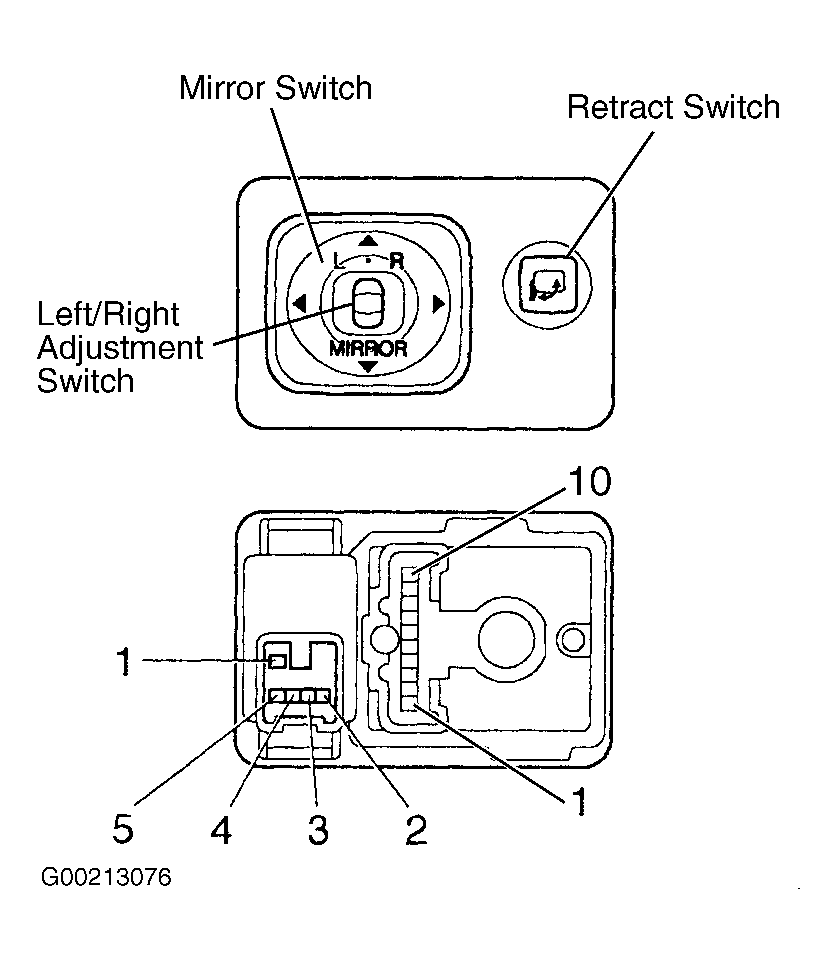

Fig 5: Identifying Power Mirror Switch & Retract Switch Connector Terminals
G00213076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
